Cub Cadet LR1 MR76 Force Series 30"/76cm Direct Collect Transmatic Ride-On Mower

Description

The Cub Cadet LR1 MR76 rear collect ride-on lawn mower is ideal as that first step up from a walk-behind mower delivering modern design, versatility and comfortable mowing. The compact and manoeuvrable Cub Cadet LR1 MR76 ride-on mower has a 76cm/30" cutting width, electric start, a single cylinder, powerful and low maintenance 382cc engine, with six speed transmatic transmission.

The direct collect system ensures superb collection in both damp and dry conditions. Selectable collecting, mulching and discharge options come as standard on this model. Thanks to the new blade design, you can achieve even better results. The 200 litre grass bag with dust protection, two grips and fill indicator, can be emptied from the driver's seat.

The cutting height on the mower can easily be adjusted through five positions from 38mm to 95mm and, with the individual deck clutch lever, the cutting deck can be switched on and off. Both levers are conveniently located on the right side of the seat.

The large 4.9 litre fuel tank with fuel indicator gives you the freedom to mow your lawn in a full cycle with no refuelling required. The transmatic transmission allows shift-on-the-go speed control. Simply choose your driving direction, set the desired basic speed and start mowing. The mini rider allows you to select between 6 forward and 6 reverse speeds.

Large tyres are lawn-friendly, yet handy, even on uneven terrain, whilst the step-through frame allows easy access with soft rubber foot pads and a comfortable foot rest.

If you have around a third of an acre up to one acre to cut and are looking for a mini-rider that is easy to store thanks to its space-saving design, then the Cub Cadet LR1 MR76 is an excellent choice.

Specification

More Information
Brand	Cub Cadet
Model	13A726HD603
Engine	Cub Cadet
Engine Cylinders	Single
Displacement	382cc
Rated Power Output	7.6kW / 2800rpm
Battery	12V , 135CCA, AGM

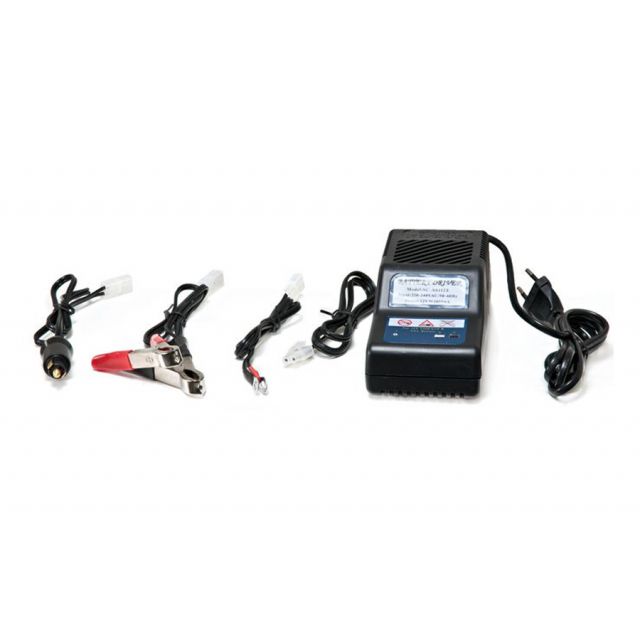

Battery Charger	Optional accessory: 196-967-678
Start Method	Electric
Transmission Type	Transmatic
Drive Method	Foot pedal control with lever for manual pre-selection
Speeds	6 forward + 6 reverse, shift-on-the-go
Cruise Control	No
Mow In Reverse	Standard
Fuel Tank Capacity	4.9L
Lubrication	Fully pressurised with automotive-style oil pump spin-on-oil filter
Productivity	2500m²/h
Cutting System	3-in-1 functionality: bagging, discharge and mulching
Width of Cut	30" / 76cm
Turning Circle	46cm / 18"

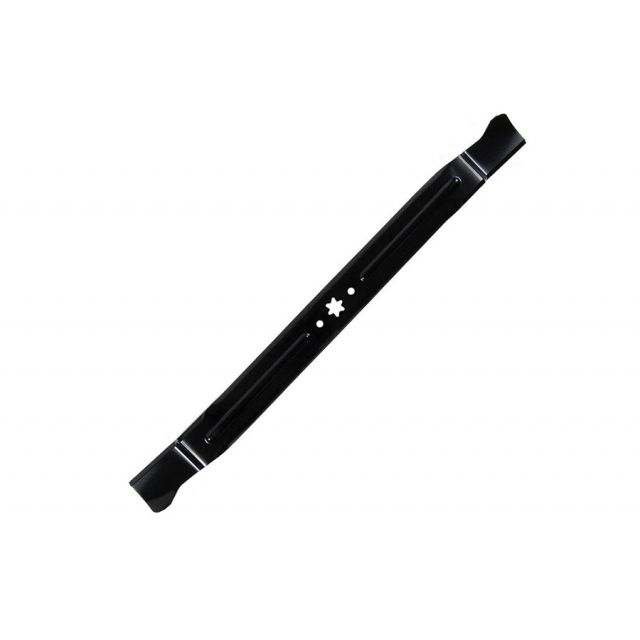

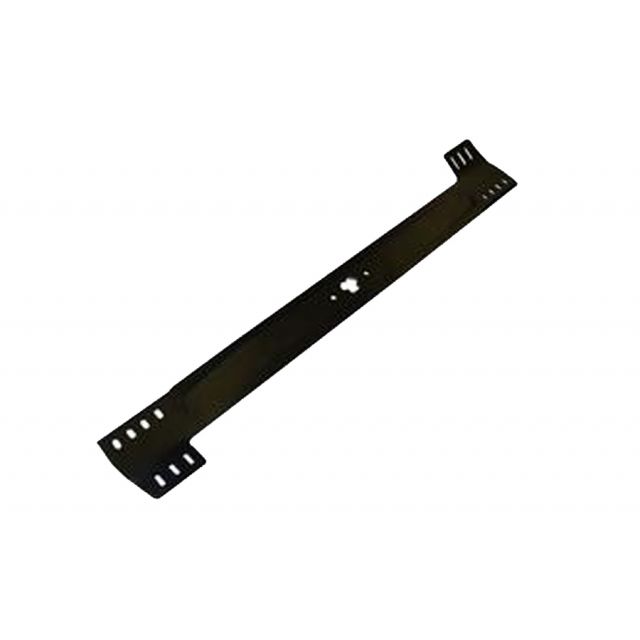

Blades	1
Blade Engagement	Manual lever control
Minimum Cutting Height	38mm
Maximum Cutting Height	95mm
Cutting Height Adjustment	5 positions
Anti-Scalp Deck Wheels	No
Deck Wash Nozzle	No
Grass Collector	Plastic hard top
Collector Capacity	200L
Fill Level Indicator	Standard
Tipping Mechanism	Bag lever over 2 fixed grips
Mulch Plug	Optional
Deflector	Optional
Seat	Comfort medium back, tool-less adjustment
Steering Wheel	Standard
Front Axle	Steel
Front Bumper	Standard
Headlights	No
Wheels - Front	13" x 5"
Wheels - Rear	16" x 6.5"
Wheel Bearings	Sleeve bearings

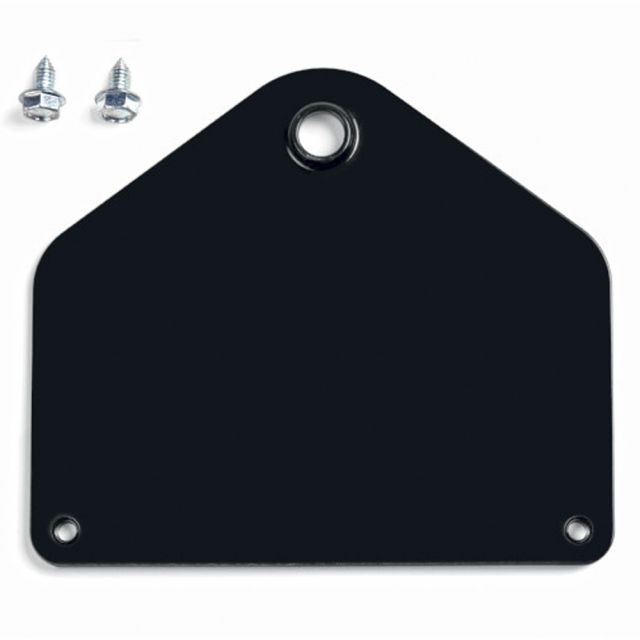

Tow Bar	Optional hitch kit: 196-398-000
Safety Features	Neutral start, operator presence, brake pedal lock
Vibration Level Data	Vibration level body/K-factor: 1.0m/s² / 0.5m/s² Vibration level hand/arm / K-factor: 5.0m/s² / 1.5m/s²
Sound and Noise Data	LpA: 88dB, LwA: 98dB, LwAg: 100dB
Assembled Dimensions	L: 225cm x W: 86cm x H: 112cm approx
Weight	144.0kg
Global Trade Item Number	4008423892284
Warranty	3 year conditional manufacturer
Promotional Image	no_selection

Features

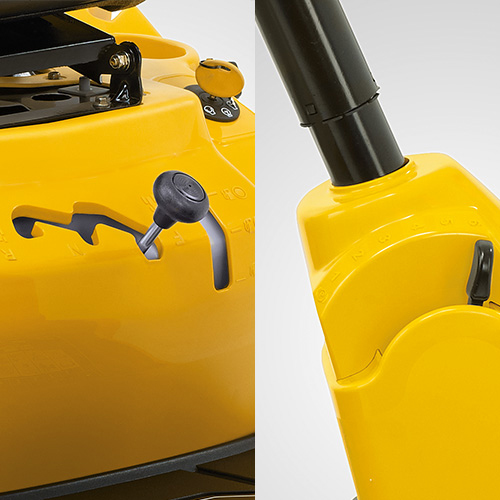

	Transmatic Transmission The transmatic transmission allows shift-on-the-go speed control.l Simply choose the driving direction, set the desired basic speed and start mowing. You have the choice of six forward and six reverse speeds.
76cm 3-in-1 Mowing Deck Choose between mulching, side discharge or direct collection.
	420cc Cub Cadet OHV Engine The powerful and reliable single cylinder Cub Cadet engine has more than enough reserves to provide you with sufficient force under any condition. The overhead valve technology, cast iron cylinder, ball bearings on the crankshaft, electronic ignition and many other state-of-the-art features make this engine a long-life and strong heart of the MINI-RIDER. Large Fuel Tank The 4.9 litre fuel tank with fuel level indicator gives you the freedom to mow your lawn in one full cycle without having to refuel.

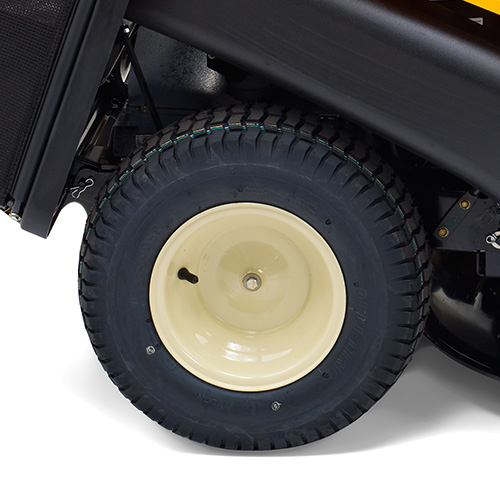

Large Tyres Gentle to your lawn and a smoother ride on uneven terrain, the large pneumatic tyres provide comfort, safety and confidence around the garden.
	Telescoping Steering Column The soft-grip steering wheel offers maximum comfort. The steering shaft is height adjustable to suit operators of any height.

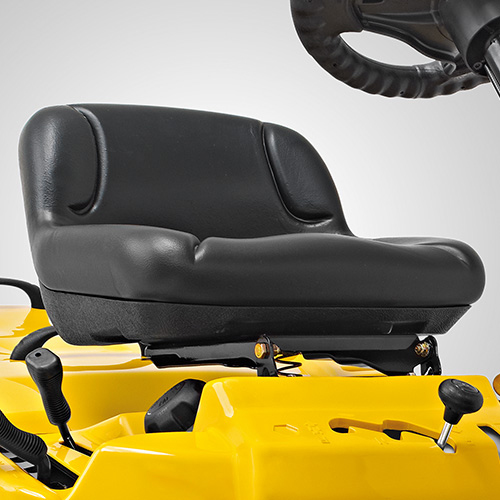

Adjustable Seat Thanks to the adjustable seat, the mini rider can be matched to your personal and most comfortable seating position.

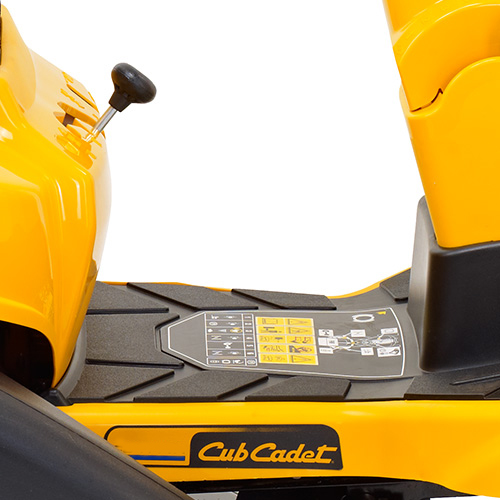

	Step-through Frame With soft rubber foot pads for easy access and comfortable foot rest.

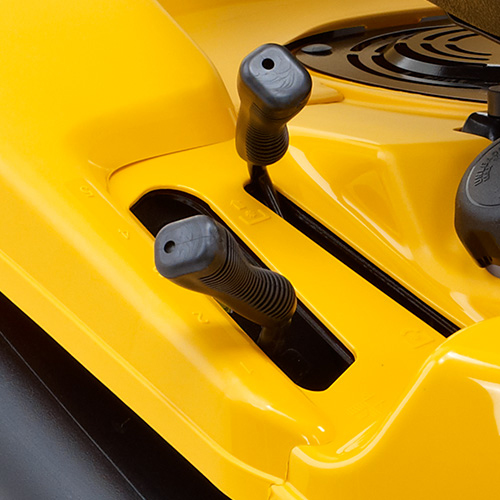

Cutting Height Adjustment & PTO Clutch The cutting height can easily be adjusted in five positions from 30mm to 95mm and, with the individual deck clutch lever, the cutting deck can be switched on and off. Both levers are ergonomically located on the right side of the seat for ease of use.
	Large Grass Collector Rear discharge models are equipped with a grass bag as standard. The large grass bag has a hard top, soft handle grips and a handy bag full indicator. Conveniently it can be emptied from the driver's seat, saving time and effort.
Warranty Cub Cadet offers a three year domestic user warranty across the entire range of garden machinery.

Brand

ABOUT CUB CADET.....

Cub Cadet brands are founded on the company's commitment to building premium outdoor equipment that is better than anything in the industry and better than what its customers expect. Cub Cadet's impressive history is highlighted in these industry-leading innovations:

Launched first zero-turn lawn tractor
Engineered CycloCut™ system mowing deck
Developed first steering wheel operated zero-turn lawn tractor
First to use heavy-duty hydrostatic automatic transmission
First - and only - lawn tractor brand with a direct shaft drive

Cub Cadet has always been guided by its dedication to meet - and exceed - the needs of rural and suburban homeowners and landscape professionals. Through a legacy of engineering excellence, it is able to offer a full line of best-in-class products:

Home Owner Products - Cub Cadet's focus is on enhancing the lifestyle of the homeowner and delivering products that are better, smarter, faster and simpler. Everything Cub Cadet offers the homeowner - lawn tractors, garden tractors, zero-turn tractors, walk-behind mowers, string trimmers, backpack blowers and more - is designed and built with these core features in mind.

Utility Vehicles - outdoor enthusiasts have come to recognise Cub Cadet's line of utility vehicles as the premier choice for the outdoor lifestyle. Cub Cadet builds its utility vehicles to be bigger, tougher and stronger so that owners can go deeper and farther into tough terrains.

Cub Cadet Yanmar® - exceeding expectations is the company's guiding principle. So it was only natural that Cub Cadet partners with another industry innovator - Yanmar, to create compact tractors that are like no other.

Cub Cadet Commercial® - when it comes to delivering premium products to landscape professionals and commercial cutters, Cub Cadet means business. It knows that these professionals need innovative equipment and services that help their business become more efficient, productive and profitable. Their success is also the success of Cub Cadet.

THE CUB CADET EXPERIENCE

	Experience the difference It’s one thing to talk innovation – it’s another to back it up. Cub Cadet has been backing it up for decades by building lawn mowers, lawn and garden tractors, zero-turn mowers, snow throwers and utility vehicles that work harder and perform better than other products in the industry. Cub Cadet is committed to moving outdoor power equipment forward. The world around us is constantly advancing. Shouldn't the machines we use to care for it advance, too? Cub Cadet launched the first zero-turn mower, and was the first to use the heavy-duty automatic transmission. Cub Cadet is committed to providing our customers with products that exceed their expectations and our line of premium-quality riding mowers, lawn tractors, zero-turn mowers and other outdoor power equipment is no exception. Explore the line-up today and find out why Cub Cadet is the smartest choice you can make.
	Experience the performance The job is to make sure you get the job done right. That’s why Cub Cadet builds its premium outdoor power equipment with the best materials and the best engineering. That’s why the company uses professional-grade engines on its machines. That’s why commercial cutters appreciate the versatility of its machines. And why outdoor enthusiasts appreciate the increased stability and traction of its wider, bigger wheelbase on the utility vehicles.
	Experience quality The quality comes through in every product, every machine, every experience you have with the Cub Cadet brand. It’s evident in the equipment that is engineered and built to stand the test of time. It’s evident in Cub Cadet dealers – the best-trained, most experienced people in the business. And it’s evident in Cub Cadet's reputation of almost 50 years of innovation.
	Experience progression While other businesses continue to look to the past and live on their longevity, Cub Cadet is committed to developing products for today and tomorrow, constantly scrutinising the needs of today’s homeowners, commercial cutters and outdoor enthusiasts. Then Cub Cadet challenges its engineers to come up with products that meet and exceed those needs. It’s why Cub Cadet has a history of innovation. And it’s why Cub Cadet has a solid future as the premiere outdoor power equipment company.
	Warranty Inspiring confidence in the quality of its products, Cub Cadet now offers a three year warranty across the entire range of lawn equipment. (New products must be registered within 60 days of purchase at https://b2c.cubcadet.eu to qualify.)
