The Cub Cadet Ultima XZ7 Series raises the bar in the field of zero-turn ride-on lawn mowers, oozing strength, power and quality design throughout. The latest steering lever technology, combined with the extremely robust contruction of heavy-duty components and high performance engine, makes the XZ7 L122 the ideal machine to achieve professional-level cutting performance.
Equipped with a powerful 726cc Kawasaki V-twin dual cylinder engine which powers the 122cm (48") cutting deck, the XZ7 L122 can cover up to 11,000 square metres of lawn per hour, reaching speeds of up to 12km/hour, which is around 50% faster than a front mower.
Lap bar controlled dual hydrostatic transmission and zero-turn manoeuvrability delivers the ultimate agility and control with smooth, precise handling so you can cut closer to obstacles and manage large, complex lawns without an issue. Cub Cadet's RevTEK™ feature means you can also mow in reverse.
Ultra-tough components featuring a strong and welded steel deck and continuous square lightweight tubular steel frame produces a machine that won't let you down. The electric PTO deck blade engagement helps to keep things simple. A mulch plug is included as standard giving you more versatility when cutting.
Safety on board the Cub Cadet XZ7 L122 is ensured thanks to the rollover protection system (ROPS) so you can mow with complete confidence, even on slopes. Cub Cadet's individually adjustable comfort seat with high backrest and armrests provides comfortable and fatigue-free working. The open frame design leaves plenty of leg room, whilst the hinged/removable floor pan allows quick and easy access to the deck and engine for easy maintenance. LED headlights will keep you mowing in poor light conditions.
Brand | Cub Cadet |
---|---|
Recommended Lawn Area | Up to 11,000m²/h |
Engine | Kawasaki |
Displacement | 726cc |
Rated Power Output | 14.4kW / 2700rpm |
Engine Cylinders | V-Twin |
Engine Lubrication Type | Full pressure with spin-on oil filter |
Fuel Tank Capacity | 20.8L |
Start Method | Electric key |
Transmission | Dual hydrostatic |
Drive Method | Hydrogear ZT3200 |
Speeds | Infinitely variable, forward: 0-7mph, reverse: 0-4mph |
Mow In Reverse | RevTEK™ Standard |
Battery | 12V / 230 cold crank amp |
Battery Charger | Optional accessory: 196-967-678 |
Steering | Lap bar with comfort handles |
Cruise Control | No |
Brake Type | Parking brake |
Turning Circle | Zero |
Cutting System | 3 in 1 option |
Width of Cut | 122cm / 48" |
Deck Type | Floating |
Deck Lift | Foot operated |
Blades | 3 |
Blade Engagement | Electro-magnetic |
Minimum Cutting Height | 25mm |
Maximum Cutting Height | 122mm |
Cutting Height Adjustment | 16 positions |
Anti-Scalp Deck Wheels | 2 |
Deck Wash Nozzle | SmartJet® standard |
Grass Collector | Optional 380L accessory: 49A7001100 |
Rear Roller | No |
Mulch Kit | Standard |
Deflector | Standard |
Seat | Premium, high back with armrests, quick adjuster lever |
Tyres | Front: 13" x 5" - 6", Rear: 20" x 12", ball bearings |
Headlights | LED |
Safety Features | Operator presence, brake switch, deck clutch switch, RevTEK mow in reverse |
Hour Meter | Standard |
Tool Box | Standard |
Sound and Noise Data | LpA: 93dB(A), LwA: 103dB(A), LwAg: 105dB(A) |
Assembled Dimensions | L: 232cm x W: 145cm x H: 134cm |
Weight | 415.0kg |
Global Trade Item Number | 4008423916805 |
Warranty | 3 year conditional manufacturer's warranty for homeowner use |
Promotional Image | no_selection |
Cub Cadet zero-turn technologyCub Cadet has developed one of the most powerful zero-turn product lines in the industry. The unique 360° turning circle technology allows you to drive around obstacles with ease, and makes mowing more comfortable and efficient. With these models steerable, propelled front wheels, you enjoy greater stability and easy control. |
|
High precision thanks to lap bar controlThe two steering levers with comfort handles optimise operator comfort and steering precision for perfect results, even in tight spaces. |
|
Dual hydrostatic transmissionThe double hydrostatic transmission provides you with excellent handling in any situation with mow in reverse. |
|
Controllers with anti-vibration soft-touch gripEnjoy great user comfort thanks to the comfort lap bar levers. |
|

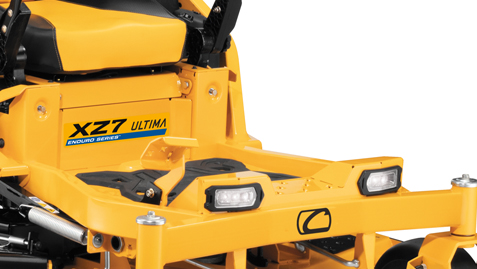

Open frame designHinged/removable floor pan allows quick and easy access to the deck and engine for ease of maintenance. |
|

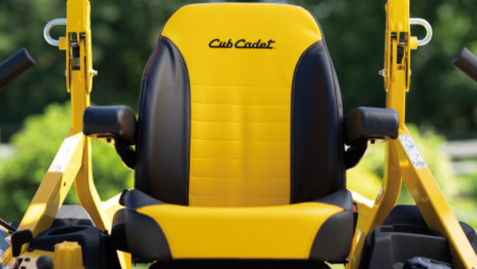

Individually adjustable comfort seatThe premium seat with a high backrest has padded armrests and special cushioning. This significantly reduces vibrations, even at high speeds, for comfortable and fatigue-free mowing. |
|
Strong tubular frame50mm x 50mm tubular frame designed for strength and durability. |
|
Robust mowing deckThe welded, all-round reinforced AerForce Max mowing deck provides the necessary strength for a consistently high quality cut. |
|
Guaranteed durabilityCub Cadet trusts its new XZ7 models with maximum durability and robustness and offers a warranty of three years or up to 500 working hours, for commercial or private use. |
|

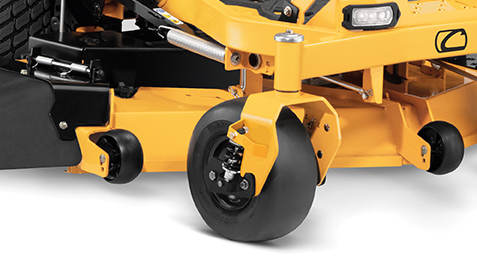

Spring-mounted front wheel suspensionThe individually suspended wheels ensure a smooth ride with less vibration, even on the most difficult lawns.
|
|
Outstanding Grass Collection (Optional)The AeroForce Max mowing deck uses the air flow from the rotating blades to propel the grass clippings in a high arc into the optional collecting back. This fills the bag to the top without clumping (dependent on conditions). |
|

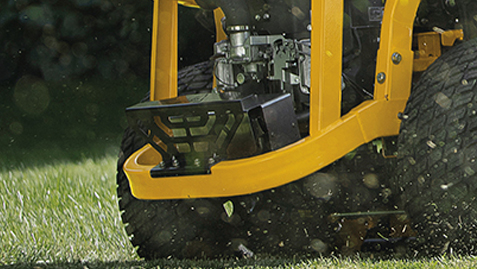

Infinite DiversityIn addition to the mulching kit supplied, the standard rear hitch gives you the option to combine your XZ7 with a wide variety of tow-behind accessories, thereby extending the mower's usefulness to all year round. |
|
HOW THE LATEST STEERING LEVER TECHNOLOGY WORKS |
|
Driving forward:Slowly and evenly move both drive control levers forward to advance. To slow down the tractor move the control levers to the rear to attain the desired speed or move the levers to the neutral position to stop the mower. |
|
Executing a zero-turn:To execute a zero-turn, move one control lever forward while simultaneously moving the other control lever back. |
|
Turning to the left:To turn to the left, move the left drive control lever to the rear of the right lever. |
|
Turning to the right:To turn to the right, move the right drive control lever to the rear of the left lever. The greater the distance between the two levers, the more sharply the mower turns. |
|
Mowing in reverese:To drive the mower in reverse, slowly and evenly move both drive control levers to the rear. |
ABOUT CUB CADET.....
Cub Cadet brands are founded on the company's commitment to building premium outdoor equipment that is better than anything in the industry and better than what its customers expect. Cub Cadet's impressive history is highlighted in these industry-leading innovations:
- Launched first zero-turn lawn tractor
- Engineered CycloCut™ system mowing deck
- Developed first steering wheel operated zero-turn lawn tractor
- First to use heavy-duty hydrostatic automatic transmission
- First - and only - lawn tractor brand with a direct shaft drive
Cub Cadet has always been guided by its dedication to meet - and exceed - the needs of rural and suburban homeowners and landscape professionals. Through a legacy of engineering excellence, it is able to offer a full line of best-in-class products:
Home Owner Products - Cub Cadet's focus is on enhancing the lifestyle of the homeowner and delivering products that are better, smarter, faster and simpler. Everything Cub Cadet offers the homeowner - lawn tractors, garden tractors, zero-turn tractors, walk-behind mowers, string trimmers, backpack blowers and more - is designed and built with these core features in mind.
Utility Vehicles - outdoor enthusiasts have come to recognise Cub Cadet's line of utility vehicles as the premier choice for the outdoor lifestyle. Cub Cadet builds its utility vehicles to be bigger, tougher and stronger so that owners can go deeper and farther into tough terrains.
Cub Cadet Yanmar® - exceeding expectations is the company's guiding principle. So it was only natural that Cub Cadet partners with another industry innovator - Yanmar, to create compact tractors that are like no other.
Cub Cadet Commercial® - when it comes to delivering premium products to landscape professionals and commercial cutters, Cub Cadet means business. It knows that these professionals need innovative equipment and services that help their business become more efficient, productive and profitable. Their success is also the success of Cub Cadet.
THE CUB CADET EXPERIENCE
Experience the differenceIt’s one thing to talk innovation – it’s another to back it up. Cub Cadet has been backing it up for decades by building lawn mowers, lawn and garden tractors, zero-turn mowers, snow throwers and utility vehicles that work harder and perform better than other products in the industry. Cub Cadet is committed to moving outdoor power equipment forward. |
|
Experience the performanceThe job is to make sure you get the job done right. That’s why Cub Cadet builds its premium outdoor power equipment with the best materials and the best engineering. That’s why the company uses professional-grade engines on its machines. That’s why commercial cutters appreciate the versatility of its machines. And why outdoor enthusiasts appreciate the increased stability and traction of its wider, bigger wheelbase on the utility vehicles. |
|
Experience qualityThe quality comes through in every product, every machine, every experience you have with the Cub Cadet brand. It’s evident in the equipment that is engineered and built to stand the test of time. It’s evident in Cub Cadet dealers – the best-trained, most experienced people in the business. And it’s evident in Cub Cadet's reputation of almost 50 years of innovation. |
|
Experience progressionWhile other businesses continue to look to the past and live on their longevity, Cub Cadet is committed to developing products for today and tomorrow, constantly scrutinising the needs of today’s homeowners, commercial cutters and outdoor enthusiasts. Then Cub Cadet challenges its engineers to come up with products that meet and exceed those needs. It’s why Cub Cadet has a history of innovation. And it’s why Cub Cadet has a solid future as the premiere outdoor power equipment company. |
|
WarrantyInspiring confidence in the quality of its products, Cub Cadet now offers a three year warranty across the entire range of lawn equipment. (New products must be registered within 60 days of purchase at https://b2c.cubcadet.eu to qualify.) |
Cub Cadet - You can't get any better®
