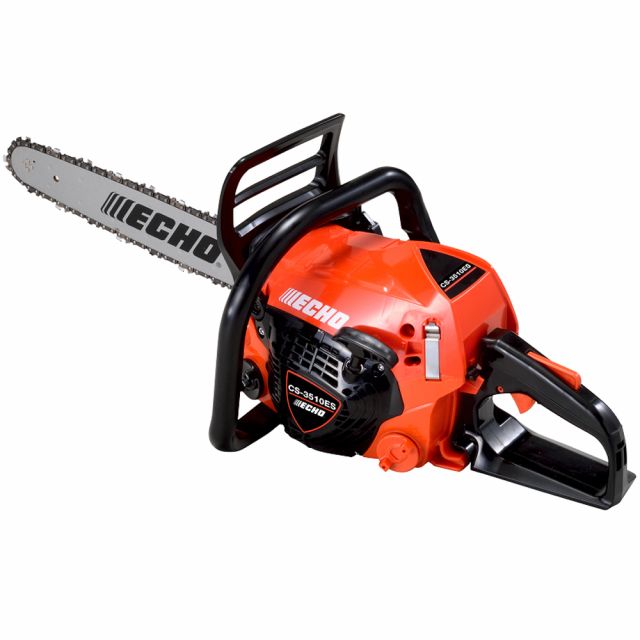

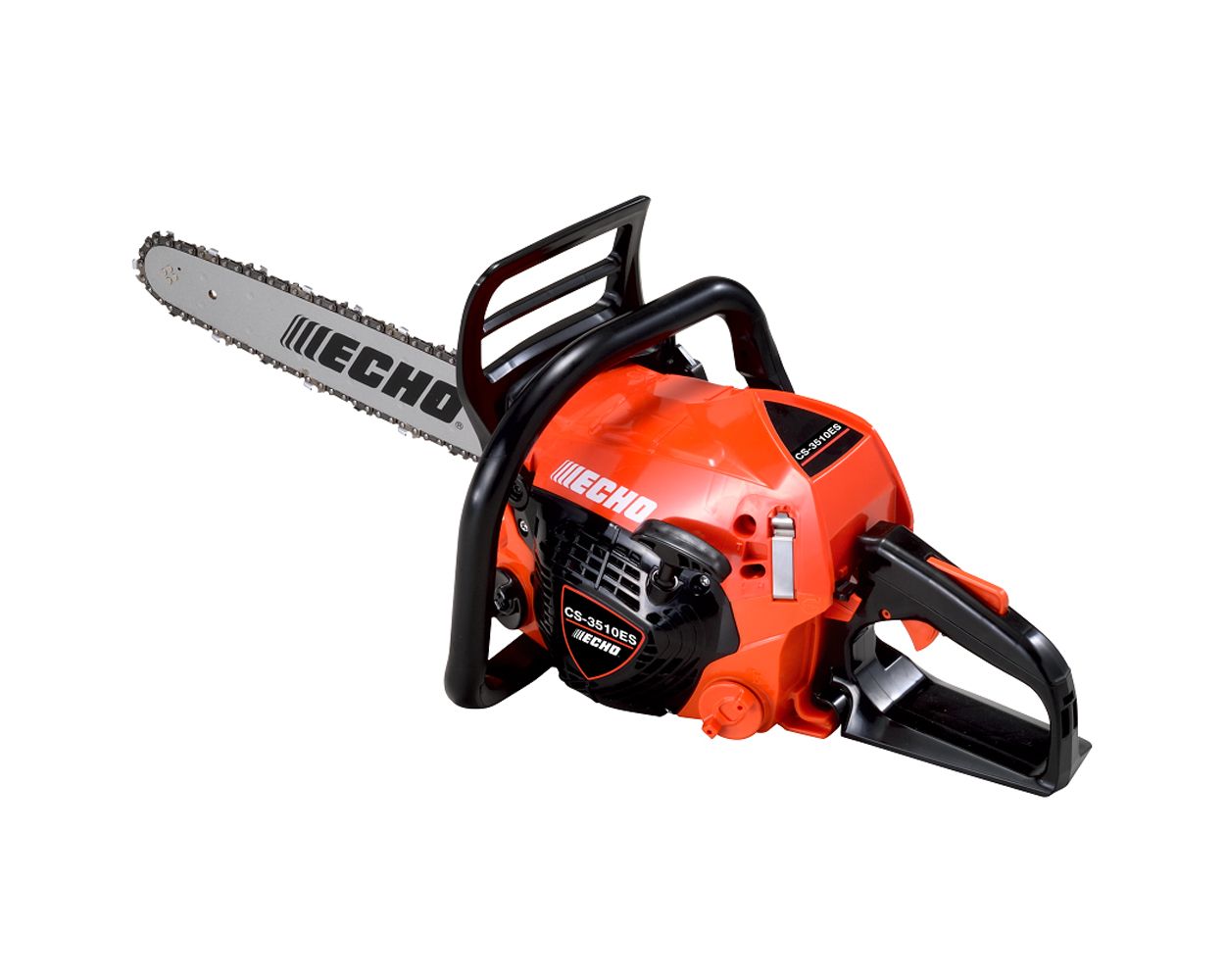

Echo CS-3510ES Petrol Chainsaw 34.4cc/35cm

Description

The feature-packed Echo CS-3510ES is 8% lighter than its predecessor, the CS-352ES yet has a 15% power gain. It also features an improved, commercial-grade 34.4cc engine and best in class power-to-weight ratio delivering a 1.5kw power output.

A 35cm (14”) 3/8 Tsumara chainsaw bar and Oregon chain for improved cutting efficiency, are fitted as standard, making this an ideal saw for pruning and cutting firewood.

Useful features on this saw include a side-access chain tensioner that allows easy chain adjustment, a momentary switch for quick and easy engine restart and an anti-icing system that prevents the carburettor from freezing in colder months.

The Echo Easy Start system is a culmination of years of unique and innovative developments. It works to minimise the effort required to start the engine with greatly reduced pulling power and vastly reduced kick back effect. In most cases the effort required to pull the starter is reduced by up to 50% compared to standard models.

Down-time is money for the professional operator. Echo applies technology and innovative design to ensure that their range of lightweight chainsaws can be used safely, comfortably and for extended periods. Legendary Japanese build quality and reliability give Echo chainsaws the highest level of performance over a very long working life. Echo casts and machines every engine in Japan where quality and consistency are closely controlled. And to gain manufacturing efficiencies, they are assembled at various factories around the world to the same exact standards. Echo's range of low-vibration, high-performance rear handle and top handle petrol chainsaws are used by professionals, farmers and homeowners for pruning, logging and tree felling.

Echo outdoor power equipment is covered by a five year domestic warranty and two year warranty in professional environments. For the domestic user there is the total reassurance of using equipment designed and built for the professional, and a five year warranty offers even greater peace of mind). The quality of Echo assures the professional user the highest standards of efficiency and durability. Registration of Echo products is necessary to validate the warranty. For optimum performance, always follow the maintenance schedule in your owner's manual.

Specification

More Information
Brand	Echo
Engine Type	2-stroke
Displacement	34.4cc
Power	1.5kW
Start Method	Recoil
Ignition System	CDI
Start Assist System	Tsumara
Priming Pump	Yes
Carburettor	Butterfly-valve diaphragm
Fuel Tank Capacity	0.28L
Fuel Consumption	0.85L/h
Bar and Chain	Tsumara / Oregon
Guide Bar Length	35cm / 14"
Chain Pitch	3/8"
Chain Gauge	0.050"
Chain Brake	Inertia
Chain Tensioning	Side tensioner
Automatic Chain Lubrication	Yes
Oil Tank Capacity	0.23L
Vibration Level Data	Front handle: 4.1m/s² / Rear handle: 5.0m/s²
Sound and Noise Data	Sound pressure level LpA: 101.5dB(A) Sound power level LwA: 110.4dB(A)
CO²	886g/kW.h
Weight	3.7kg
Warranty	5 years domestic / 2 year professional (registered within 30 days of sale)
Promotional Image	/j/a/japan-technology_12_1.jpg

Features

Anti-vibration system Precisely designed anti-vibration system minimises vibration level giving excellent manoeuvrability, operator comfort and precision when cutting.
	Quick starting, lightweight and powerful Equipped with Echo's patented ES-Start for easy starting every time. Combine this with a 34.4cc engine and dry weight of just 3.7kg and you have a chainsaw that gets to work fast and powers through tasks.
Packed with features The CS-3510ES is packed with features for ease of use and comfort.
	Key features Momentary switch for quick and easy engine restart ES-Start for reduced effort starting Transparent fuel tank for easy level checks Side access chain tensioner for quick chain adjustment Automatic clutch-driven oiler to keep chain lubricated and to hold chain oil discharge while idling G-Force engine air pre-cleaner reduces engine exposure to dirt and debris for less maintenance and longer life Icing plug for improved acceleration in cold conditions Roller style chain catcher

Video

Manuals

Product Data Sheet

Brand

ABOUT ECHO...

In a world that’s constantly changing, one thing you can depend on, is your Echo tool.

For over 75 years, Echo has been building tools for commercial users around the world. From its humble beginnings in Japan with a simple handheld crop duster, to creating the world’s first ever power blowers in 1975, Echo has become a technological leader and well respected global brand.

As technology and users’ needs evolve, so too does Echo, staying on the pulse of the industry through decades of expertise and by listening to the feedback we receive. Echo's aim is not to react to changes in the market, but to be at the forefront. It does this by putting its dedication to producing the highest quality products above all else. Echo petrol tools continuously exceed increasingly stringent emissions requirements yet retain the robust power and dependability Echo is renowned for. Echo is reaching into new technologies such as professional performance battery tools and robotics with the careful and precise consideration that makes all Echo products ones you can depend on; this is our priority.

In the line-up you will find our staple, professional engine products amongst new battery products aimed at professionals, and for the first time, a range aimed solely at domestic users. Echo believes that the technology is now ready to offer great benefits for both professional and domestic users alike. So, whether you’re a fully-fledged outdoor professional or someone newly inspired to transform your environment into something more, Echo guarantees a tool that’s been crafted with expertise and passion, a tool you can depend on.

PURCHASING ECHO PRODUCTS

Echo products come equipped with a range of unique product features designed to deliver ease and comfort for users.

Echo is successful in producing low vibration and low noise for power tools and are leaders in two-stroke power tool emission technology. Echo casts and machines every engine in Japan where quality and consistency are closely controlled. And to gain manufacturing efficiencies, they are assembled at various factories around the world to the same exact standards.

Leading in two-stroke power tool emission technology
Echo has the widest variety of emission compliant engines ever certified for EPA, CARB regulations and EU directives. Echo has condensed the years of development in the USA into the trademarked Power Boost Tornado technology, with a highly refined two-stroke engine design. This technology is now applied across the Echo Power Tool range, with engines delivering more power, higher fuel efficiency and better engine lubrication, while improving combustion and reducing exhaust emissions.

Low Vibration
Echo has taken up the challenge and is successfully producing measures for maximum control of vibration. Echo products are designed and manufactured for constant and lengthy use by professional users, with homeowners/domestic users also able to enjoy the benefits of commercial quality and features. Under independent tests, Echo brush cutters and Echo hedge cutters have produced the lowest vibration figures. ECHO is one of very few manufacturers who make its own engines, therefore every ECHO product is designed and tested as a completed package. This ensures high quality, ergonomically designed equipment, with maximum vibration controls.

Low Noise
With power tool equipment in use in public and residential areas, noise is of primary concern, Echo has developed the technology to control and minimise noise pollution. Echo designs and manufactures engines from scratch, matching low noise engines to low vibration products, by retaining complete manufacturing control.

ECHO Innovation - i-start
The i-start device makes first time starting of two-stroke engines a certainty, while removing 90% of the effort required. i-start stores the energy of one long and gentle pull, or two short pulls of the recoil starter and delivers it in a dynamic burst that starts the engine every time.

ECHO Innovation - Easy Start
Denoted by the ES symbol on the power tool, Easy Start works in a different way to i-start to minimise the effort required to start the engine. With Easy Start the pulling power needed on the starter rope is greatly reduced compared to other makes, with no kick-back effect when cranking.
