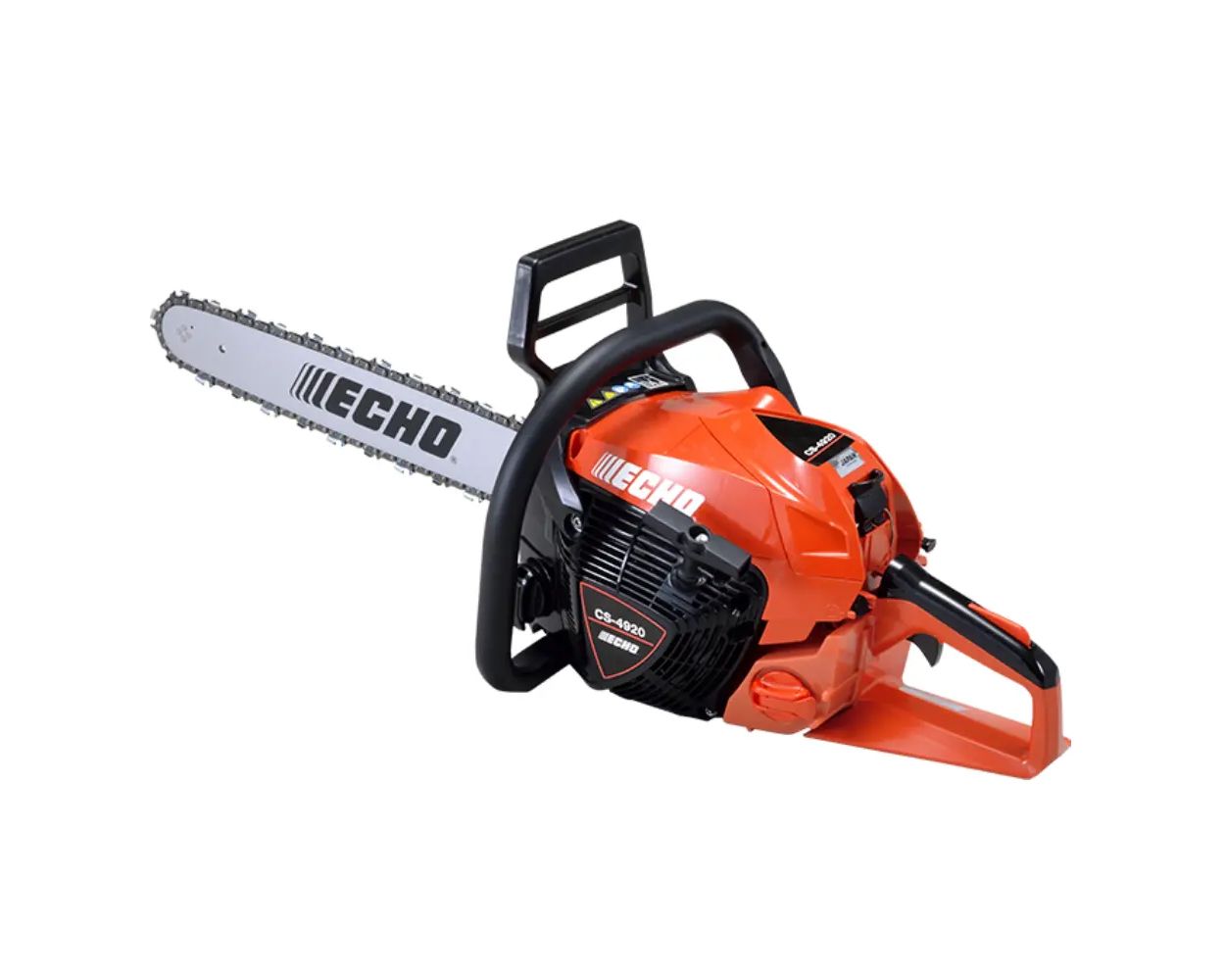

Echo CS-4920 Petrol Chainsaw 50.0cc/45cm

Description

The Echo CS-4920 is a heavier duty version of the CS-4910 chainsaw. It features a 50.1cc professional-grade two-stroke, stratified scavenging engine that provides more power and less emissions than any other saw in the same class.

Weighing just 5.0kg with professional features like dual drop prevention bar nuts, a heavy-duty air filter with tool-less access and a momentary switch, it's ideal for a range of jobs.

The Echo Easy Start system is a culmination of years of unique and innovative developments. It works to minimise the effort required to start the engine with greatly reduced pulling power and vastly reduced kick back effect. In most cases the effort required to pull the starter is reduced by up to 50% compared to standard models.

Down-time is money for the professional operator. Echo applies technology and innovative design to ensure that their range of lightweight chainsaws can be used safely, comfortably and for extended periods. Legendary Japanese build quality and reliability give Echo chainsaws the highest level of performance over a very long working life. Echo casts and machines every engine in Japan where quality and consistency are closely controlled. And to gain manufacturing efficiencies, they are assembled at various factories around the world to the same exact standards.

Echo's range of low-vibration, high-performance rear handle and top handle petrol chainsaws are used by professionals, farmers and homeowners for pruning, logging and tree felling.

Echo outdoor power equipment is covered by a five year domestic warranty and two year warranty in professional environments. For the domestic user there is the total reassurance of using equipment designed and built for the professional, and a five year warranty offers even greater peace of mind). The quality of Echo assures the professional user the highest standards of efficiency and durability. Registration of Echo products is necessary to validate the warranty. For optimum performance, always follow the maintenance schedule in your owner's manual.

Specification

More Information
Brand	Echo
Engine Type	2-stroke
Displacement	50.1cc
Power	2.5kW
Start Method	Recoil
Ignition System	CDI
Start Assist System	ES-Start
Priming Pump	Yes
Choke	Yes, with automatic fast idle release
Carburettor	Butterfly-valve diaphragm
Fuel Tank Capacity	0.48L
Fuel Consumption	1.32L/h
Guide Bar Length	45cm / 18"
Chain Pitch	0.325"
Chain Gauge	0.050"
Chain Tensioning	Side tensioner
Automatic Chain Lubrication	Yes
Oil Tank Capacity	0.33L
Vibration Level Data	Front handle: 3.5m/s² Rear handle: 3.4m/s²
Sound and Noise Data	Sound pressure level LpA: 102.5dB(A) Sound power level LwA: 111.8dB(A)
CO²	808g/kW.h
Weight excluding Bar & Chain	5.0kg
Warranty	5 years domestic / 2 year professional (registered within 30 days of sale)
Promotional Image	/j/a/japan-technology_11_2.jpg

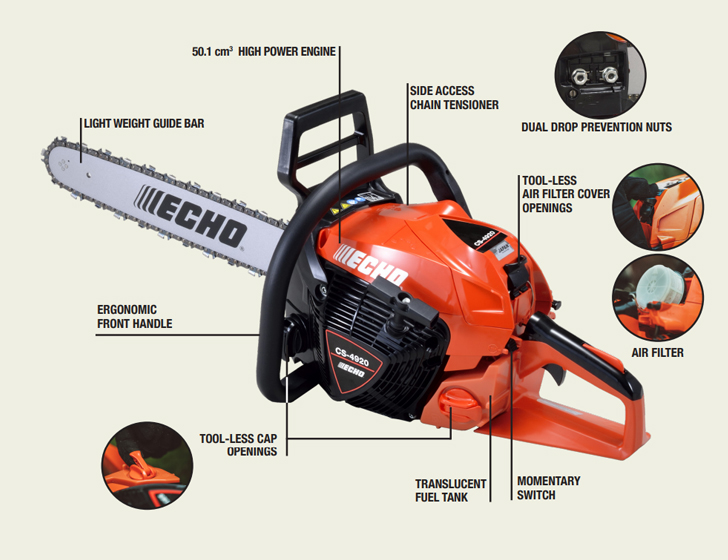

Features

Powerful, super efficient engine The 50.1cc professional-grade two-stroke, scavenger-type engine provides enormous power, whilst the dry weight is just 5.0kg. Echo has used its decades of engine making experience to create an engine that's powerful and produces incredibly low emissions.
	Professional-grade features A heavy-duty air filter with Echo's patented G-Force technology massively reduces the need for maintenance. The ergonomic, front handle ensures comfortable and precise control and dual drop prevention nuts mean smooth and precise cutting.
No hassle, just hard work Easy start technology alongside an always on, momentary switch means you can get to work without thinking about your saw. The tool-less air filter cover and tank openings make this saw a pleasure to use.
	Master of all trades The CS-4920 is a truly versatile chainsaw with plenty of professional-grade features.
