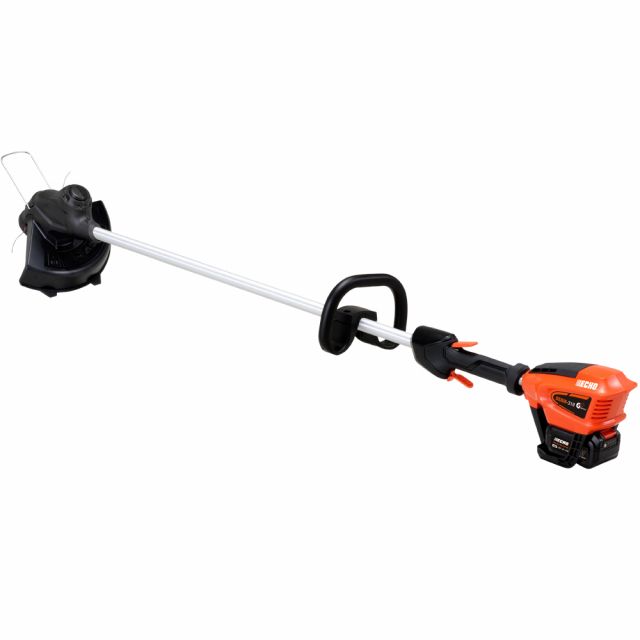

Echo DSRM-310L Garden+ 40V Cordless Grass Trimmer (Bare Tool)

Description

The Echo DSRM-310L is part of the battery-powered 40V Garden+ series and built for the enthusiastic domestic user. Features have been developed specifically for ease of use and power enabling the grass trimmer to perfectly trim those difficult to reach areas of your garden.

The geared motor delivers high torque and low power consumption, whilst the variable speed throttle allows for precise and optimised work.

The DSRM-310L features a single piece shaft to ensure high rigidity and reduced vibrations, which is equipped with loop handle and twin nylon line head. The handle is adjustable so you can work with the correct posture, whilst the over-moulded soft-grip material on the armrest improves comfort. The cutter head has a wide 30cm cutting swath and is fitted with 1.65mm twisted line and retractable plant protector for trimming safely around obstacles.

The Echo DSRM-310L lightweight, battery-powered strimmer gives excellent performance alongside the benefits of zero emissions, low noise, low vibration and mimimal maintenance. With optimised power consumption, you can achieve an extensive running time of up to 51 minutes on a single charge of a 4.0Ah battery.

NB: Battery and charger NOT included. The 4.0Ah battery is recommended.

Your space. Your passion. Your transformation.

The Echo Garden+ Series gives you the tools you need to transform your outdoor space into something wonderful. Created with the experience of over 75 years in the industry, Garden+ tools are the lightest weight in Echo's product line up, whilst being easy to use and powerful. Designed to feel instinctive and comfortable in your hands, features like the rotatable handle on the DHC-310 hedge trimmer provide unrivalled ease of use and precision. Adapt to any task with a tool for every need. So, whether you’re trimming, cutting, pruning or mowing, just connect, power on and transform.

Specification

More Information
Brand	Echo
Battery Housing	Single
Battery	Lithium-ion (not included)
Battery Voltage	40V (rated 36V)
Battery Charger	LC3604 (not included)
Battery Charge Time	2Ah - 80%: 46 mins / 100%: 100 mins 4Ah - 80%: 97 mins / 100%: 170 mins
Motor	Brushed DC
Speed Control	Throttle
Approx Run Time	2.0Ah battery: Up to 28 mins 4.0Ah battery: Up to 51 mins
Cutting Head	1 x dual twisted line head fitted 2 spare heads in the box
Feed Mechanism	Bump feed
Line Diameter	1.65mm
Metal Blade	No
Shaft Type	Single piece
Shaft Diameter	25mm
Handle Type	Loop, adjustable
Plant Protector	Yes
Sound and Noise Data	Sound pressure level LpA: 92.7dB(A) Sound power level LwA: 96.0dB(A)
Vibration Level Data	Front handle: 5.0m/s2 K=1.5m/s2 Rear handle: 6.5m/s2 K=1.5m/s2
Weight Without Battery	2.6kg
Warranty	Manufacturer's - 3 years domestic / 3 months professional (registered within 30 days of sale)
Promotional Image	/e/c/echo-garden-plus_1_1_1_1_1.jpg

Features

Large cutting swath The DSRM-310L grass trimmer features a large dual line 30cm cutting swath and a high torque motor for powerful and precise trimming.
	Plant protector The plant protector comes as standard and reduces the risk of accidentally damaging flowers.
Proportional trigger The proportional trigger allows you to use the power necessary for the job at hand. This ensures optimal cutting performance and prolongs run times.
	40V Garden+ Battery Warranty The Garden+ range of tools are all covered by Echo's 2 + 1 domestic use warranty. Each tool comes with a 2 year domestic use warranty as standard and by registering your product you will receive an additional 1 year. All batteries have a fixed, 2 year warranty. Echo expertise is built into every tool, so the warranty is Echo's pledge that you receive a tool worthy of the Echo name. A tool that you can depend on.
