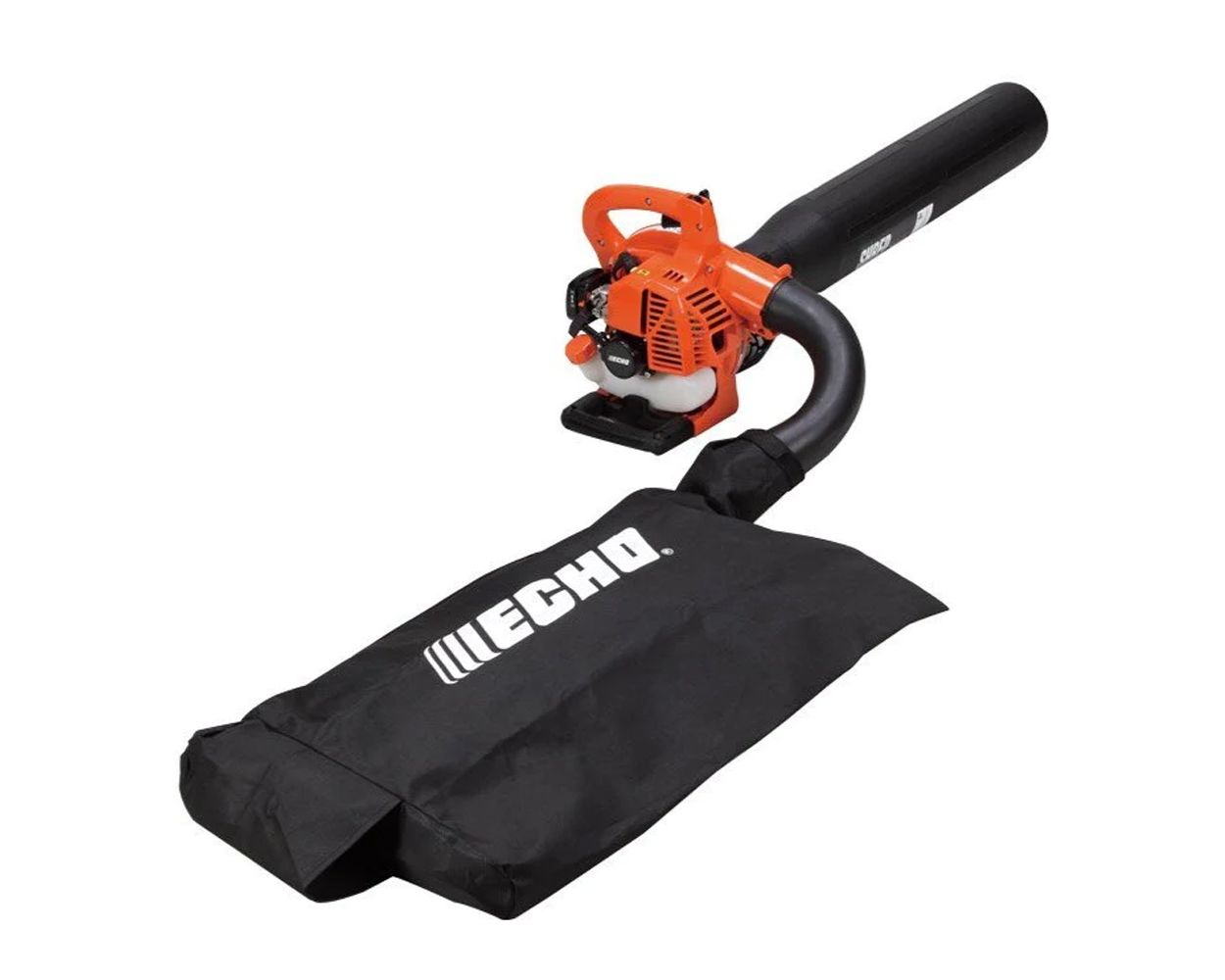

Echo ES-250ES Shred 'n' Vac Hand-Held Garden Blower

Description

This powerful garden leaf blower and garden vacuum shredder is for serious caretakers, landscapers and home users alike.

Powered by a 25.4cc commercial grade two-stroke engine, this Shred 'n' Vac garden blower generates a maximum airflow of 81.7m/sec whilst maintaining power and durability with fewer emissions than a standard two-stroke. The design features a new "Rotational Control" feature that reduces the stress on the users hand, wrist and forearm by providing a neutral balance compared to other handheld garden blowers.

The Echo ES-250ES garden leaf blower and vacuum shredder features the Echo Easy Start system for effortless first pull starting, the grouped throttle, cruise control and stop functions are conveniently located on the top handle providing an easier, more comfortable operation. The exhaust port is located at the front of the blower, dissipating the heat away from the operator. The larger air intake and fan have been designed for improved efficiency with lower noise; the heavy duty air filter keeps dirt and debris away from vital engine components and maintains performance.

The ES-250ES garden leaf blower can easily be converted to a powerful garden vacuum shredder with the accessory PBAV-255 supplied with this machine as standard, featuring the new EZ locking system for hassle free, fast conversion. The hardened steel triple edged shredder blades are designed to provide long service and will efficiently reduce the collected volume by a 12:1 ratio, in ideal cases the material can then be composted for use later on borders and vegetable patches.

Specification

More Information
Brand	Echo
Engine Type	2-stroke, Power Boost Vortex commercial grade
Displacement	25.4cc
Rated Power Output	0.7kW / 0.98ps
Fuel Tank Capacity	0.5L
Fuel / Oil Mixture	50 : 1
Fuel Consumption	0.52L/h
Spark Plug	NGK BPMR8Y
Start Method	Easy start recoil system
Maximum Air Flow Volume	576m3/h / 339cfm
Maximum Air Flow Speed	81.7m/sec / 183mph
Mulching Ratio	12 : 1
Nozzle	Outlet diameter: 31mm x 115.5mm
Vacuum Kit	Standard
Weight	5.7kg
Assembled Dimensions	L: 33cm x W: 28.5cm x H: 35cm
Shipping Dimensions / Weight	40cm x 37cm x 94cm / 8kg
Warranty	5 years domestic / 2 year professional (registered within 30 days of sale)
Promotional Image	/j/a/japan-technology_2_6.jpg

Features

	25.4cc Premium Grade Echo Engine Engine ensures performance, durability and reliability
	Low Emissions Stage 2 compliant low emission engine means reduced exhaust emissions
	Posi-Loc Pipe System Keeps the blower pipe sections ecurely connected at all times
	Easy Start Spring-assisted starting system for quick, almost effortless starting. Just one or two gentl pulls of the recoil will start the engine. A warm engine will usually start withone half pull of the recoil rope
	EZ Lock Pipe Connection The locking latch makes connecting/disconnecting the pipe to the machine easy and also ensures a secure connection
	Asymmetric Cutters Exclusively designed, these cutters shred leaves and garden debris to one twelfth of their original size
	Grouped Controls Controls are close together making the blower instinctive and easy to use
	Cruise Control When the throttle is locked in position, a constant engine speed is achieved without the user needing to keep his finger on the throttle
	See-through fuel tank Easy to check the level of fuel in the tank
	Warranty Echo power tools come with a five year domestic warranty or two year warranty in professional use
