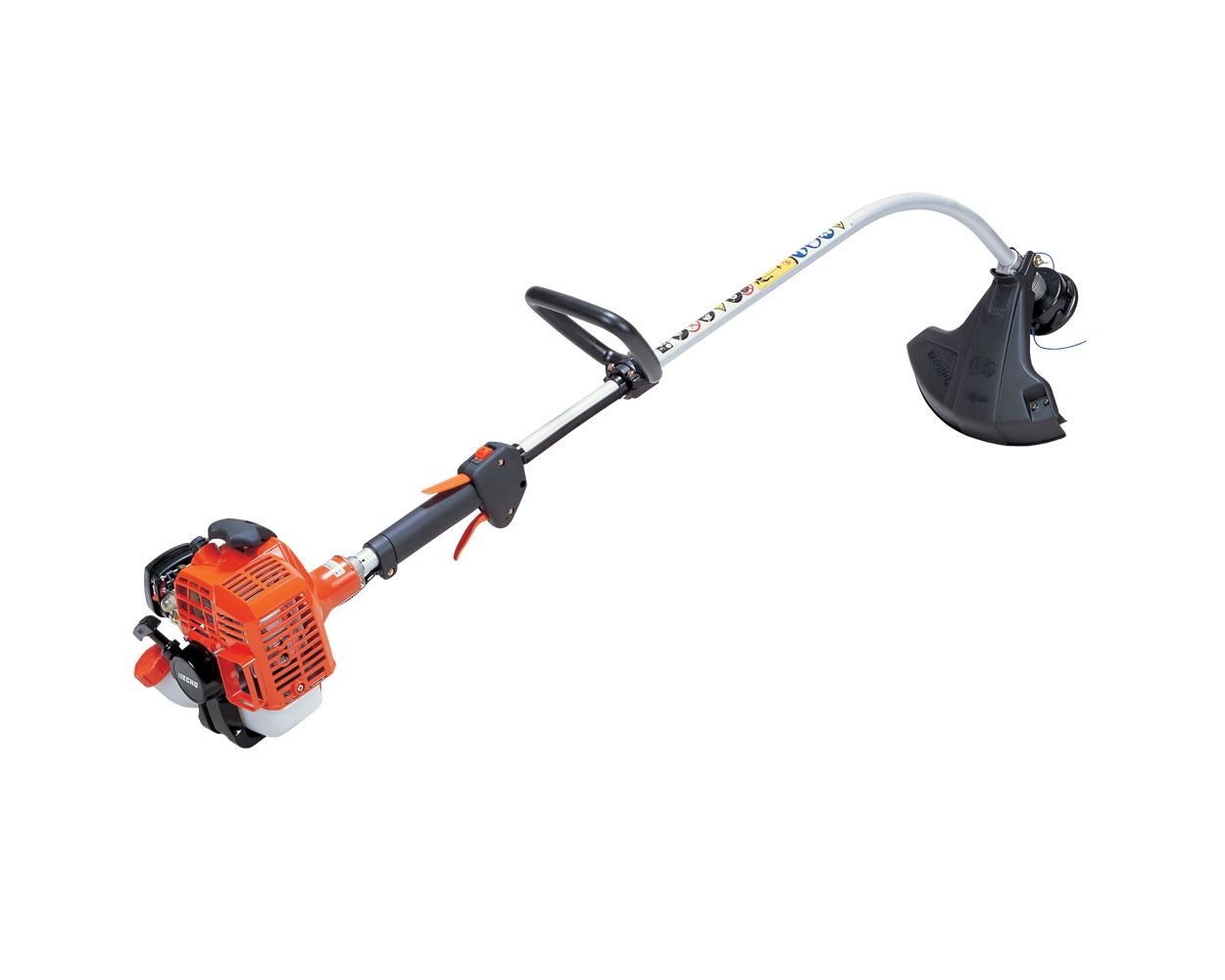

Echo GT-222ES Petrol Grass Trimmer

The Echo GT-222ES is a lightweight curved shaft line trimmer designed for the homeowner.

Powered by a professional-grade 21.2cc two-stroke engine, it can be started effortlessly with the help of Echo's innovative 'ES' Easy Start technology which minimises the effort required to start the engine and eliminates kick back.

Heavy duty, despite its low weight of just 4.3kg, the Echo GT-222ES line trimmer is ideal for domestic and commercial use with an ergonomic design that incorporates an adjustable loop handle for ease of operation. Low vibration levels are combined with precise balance and a superb build quality to ensure longer service and superior performance. Low noise emissions make the Echo GT-222ES petrol trimmer suitable for clearing heavy undergrowth, light brush and even small trees in residential areas.

The curved shaft makes it ideal for trimming in tight areas, around posts or along fence lines. Featuring a bump feed dual nylon line cutting head, a shoulder strap is included for operator comfort.

Specification

More Information
Brand	Echo
Engine Type	2-stroke
Displacement	21.2cc
Rated Power Output	0.71kW / 1.0ps
Start Method	Easy start recoil system
Carburettor	Diaphragm
Fuel Tank Capacity	0.4L
Fuel Consumption	0.45l/h at maximum engine power
Cutting Head	G137 100 / X047-000552, auto bump feed dual nylon line
Line Diameter	2.03mm
Brush Cutter Blade	No
Shaft Type	Bent
Shaft Diameter	25mm
Drive Shaft Diameter	6.1mm (flexible)
Handle Type	Loop
Harness	Shoulder strap
Vibration	Left handle: 4.9m/s / Right handle: 5.4m/s
Sound and Noise Data	Sound pressure level: 91.9dB(A) / Sound power level: 105.0dB(A)
CO²	1262g/kW.h
Weight	4.3kg
Warranty	Manufacturer's - 5 years consumer, 2 years commercial (subject to registration within 30 days)
Promotional Image	/j/a/japan-technology_3.jpg

Features

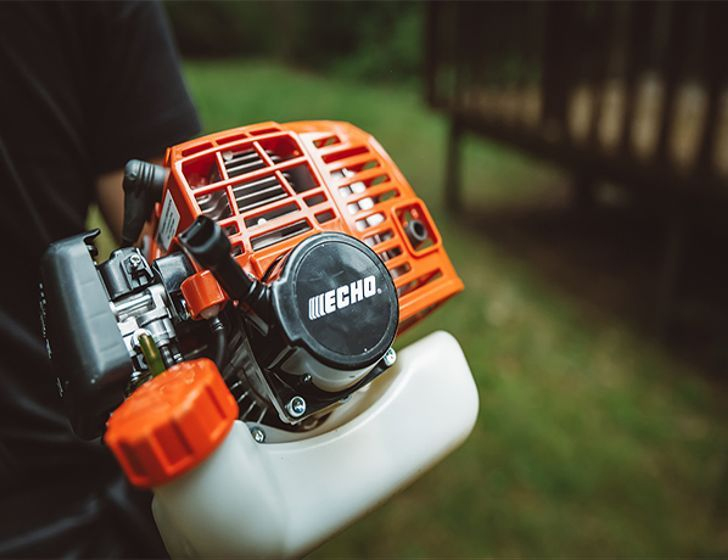

Professional engine A 21.2cc professional-grade engine allows you to clear tough brush and long, dense grass in one pass.

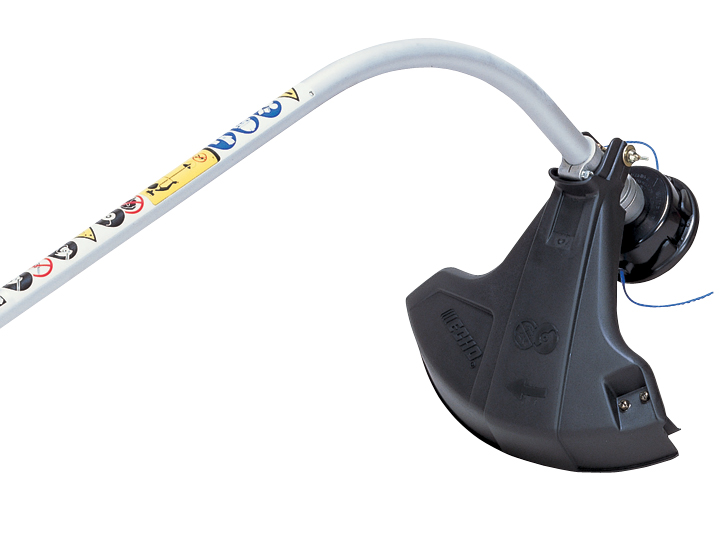

	Curved shaft The curved shaft makes it ideal for trimming around trees and borders or along fence lines. Low vibration levels are combined with precise balance and superb build quality to ensure longer service and superior performance.
Features for performance A heavy-duty, two-stage air filter provides greater durability and filtration than a standard filter, while Easy Start ensure almost effortless starting.
	Other key features Power to weight ratio Super lightweight design with exceptional power. Ergonomics Designed to maximise efficiency and comfort. Easy Start engine Echo's patented system for effortless starting.

Manuals

Product Data Sheet

Brand

ABOUT ECHO...

In a world that’s constantly changing, one thing you can depend on, is your Echo tool.

For over 75 years, Echo has been building tools for commercial users around the world. From its humble beginnings in Japan with a simple handheld crop duster, to creating the world’s first ever power blowers in 1975, Echo has become a technological leader and well respected global brand.

As technology and users’ needs evolve, so too does Echo, staying on the pulse of the industry through decades of expertise and by listening to the feedback we receive. Echo's aim is not to react to changes in the market, but to be at the forefront. It does this by putting its dedication to producing the highest quality products above all else. Echo petrol tools continuously exceed increasingly stringent emissions requirements yet retain the robust power and dependability Echo is renowned for. Echo is reaching into new technologies such as professional performance battery tools and robotics with the careful and precise consideration that makes all Echo products ones you can depend on; this is our priority.

In the line-up you will find our staple, professional engine products amongst new battery products aimed at professionals, and for the first time, a range aimed solely at domestic users. Echo believes that the technology is now ready to offer great benefits for both professional and domestic users alike. So, whether you’re a fully-fledged outdoor professional or someone newly inspired to transform your environment into something more, Echo guarantees a tool that’s been crafted with expertise and passion, a tool you can depend on.

PURCHASING ECHO PRODUCTS

Echo products come equipped with a range of unique product features designed to deliver ease and comfort for users.

Echo is successful in producing low vibration and low noise for power tools and are leaders in two-stroke power tool emission technology. Echo casts and machines every engine in Japan where quality and consistency are closely controlled. And to gain manufacturing efficiencies, they are assembled at various factories around the world to the same exact standards.

Leading in two-stroke power tool emission technology
Echo has the widest variety of emission compliant engines ever certified for EPA, CARB regulations and EU directives. Echo has condensed the years of development in the USA into the trademarked Power Boost Tornado technology, with a highly refined two-stroke engine design. This technology is now applied across the Echo Power Tool range, with engines delivering more power, higher fuel efficiency and better engine lubrication, while improving combustion and reducing exhaust emissions.

Low Vibration
Echo has taken up the challenge and is successfully producing measures for maximum control of vibration. Echo products are designed and manufactured for constant and lengthy use by professional users, with homeowners/domestic users also able to enjoy the benefits of commercial quality and features. Under independent tests, Echo brush cutters and Echo hedge cutters have produced the lowest vibration figures. ECHO is one of very few manufacturers who make its own engines, therefore every ECHO product is designed and tested as a completed package. This ensures high quality, ergonomically designed equipment, with maximum vibration controls.

Low Noise
With power tool equipment in use in public and residential areas, noise is of primary concern, Echo has developed the technology to control and minimise noise pollution. Echo designs and manufactures engines from scratch, matching low noise engines to low vibration products, by retaining complete manufacturing control.

ECHO Innovation - i-start
The i-start device makes first time starting of two-stroke engines a certainty, while removing 90% of the effort required. i-start stores the energy of one long and gentle pull, or two short pulls of the recoil starter and delivers it in a dynamic burst that starts the engine every time.

ECHO Innovation - Easy Start
Denoted by the ES symbol on the power tool, Easy Start works in a different way to i-start to minimise the effort required to start the engine. With Easy Start the pulling power needed on the starter rope is greatly reduced compared to other makes, with no kick-back effect when cranking.

WARRANTY

2-YEAR PROFESSIONAL WARRANTY*

Yes, you did read that right. You can have absolute confidence in our equipment. ECHO is designed to be durable and to do what you ask it, wherever you take it. Not only that, our products are built to the highest standards of quality and performance. Echo's warranty is their statement of confidence and badge of honour. Echo – world-class technology.

* Registration of Echo products and servicing are necessary to validate the warranty.

5-YEAR DOMESTIC WARRANTY*

Five years is a long time. Longer than you’ll get from most of the equipment you buy. That’s because Echo stand behind their products. Echo have been building equipment for professionals for decades and that has given them an exceptional level of engineering and manufacturing expertise. As a home owner, you want long term dependability enjoyed by professionals, and a well built product that you can buy with confidence.

* Registration of Echo products and servicing are necessary to validate the warranty.

40V GARDEN+ BATTERY WARRANTY

The Garden+ range of tools are all covered by Echo's 2 + 1 domestic use warranty. Each tool comes with a 2 year domestic use warranty as standard and by registering your product you will receive an additional 1 year. All batteries have a fixed, 2 year warranty. Echo expertise is built into every tool, so Echo's warranty is their pledge that you receive a tool worthy of the Echo name. A tool that you can depend on.

* Registration of Echo products is necessary for the additional third year.

56V BATTERY WARRANTY

The Professional Series is backed by the same industry leading warranty as its petrol stablemates; 2 year professional use and 5 year domestic use warranties on tools, as well as a 2 year warranty on batteries. That’s because Echo products are built to the highest standards of quality and performance, meaning you can have complete confidence in Echo tools.
