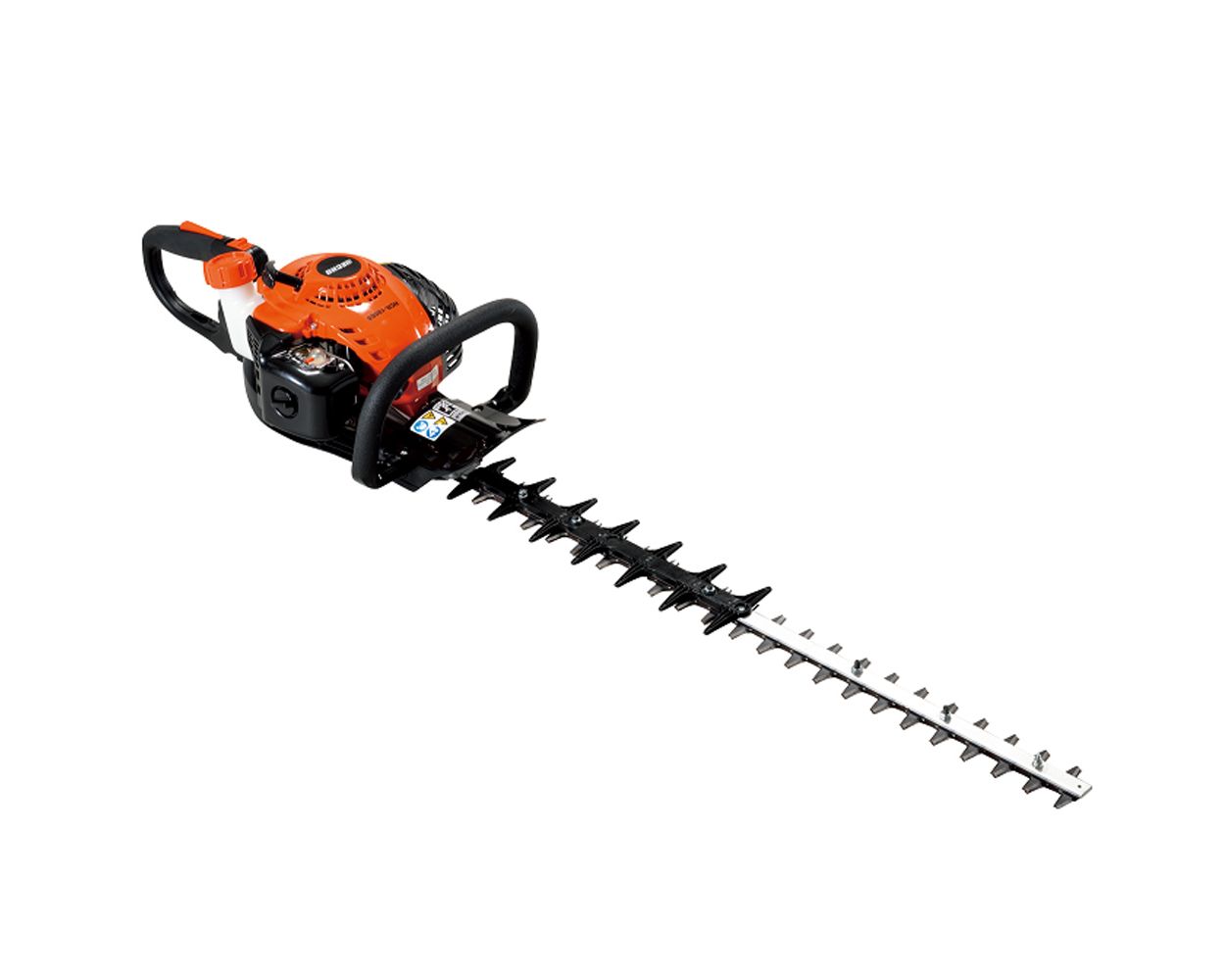

Echo HCR-185ES Petrol Hedge Trimmer

Description

Echo's HCR-185ES hedge trimmer with low vibration, laser precision and rotating handle for serious professionals is equipped with a double-sided 744mm cutting blade, a 21.2cc two-stroke engine and numerous other features for performance and comfort.

The Echo HCR-185ES petrol hedge trimmer features the Easy Start system which means the pulling power needed on the starter rope is greatly reduced compared to other makes, with no kick-back effect in cranking. Enhanced manoevrability and comfort is ensured thanks to the five-position rotating rear handle.

More comfortable operation in difficult areas is ensured thanks to the rotating rear handle and low vibration, which reduces user fatigue.

A healthy, handsome and well groomed hedge needs a razor sharp, precision ground, smooth running hedge cutter. Carefully balanced and generously specified, Echo hedge trimmers are built to last and to immaculately groom your hedges year after year. In private use an Echo hedge cutter could last a lifetime.

Echo outdoor power equipment is covered by a five year domestic warranty and two year warranty in professional environments. For the domestic user there is the total reassurance of using equipment designed and built for the professional, and a five year warranty offers even greater peace of mind). The quality of Echo assures the professional user the highest standards of efficiency and durability.

Registration of Echo products is necessary to validate the warranty. For optimum performance, always follow the maintenance schedule in your owner's manual.

Specification

More Information
Brand	Echo
Engine Type	2-stroke, air-cooled, single cylinder
Displacement	21.2cc
Rated Power Output	0.6kW / 0.8ps
Start Method	Recoil
Starting System	ES Easy Start / Soft-start
Ignition Type	CDI, digital magneto
Fuel Tank Capacity	0.37L
Fuel / Oil Mixture	50 : 1
Fuel Consumption	0.4l/h at maximum engine power
Carburettor	Diaphragm, horizontal-draft with purge bulb
Spark Plug	NGK BPMR8Y
Blades	Double-sided, dual reciprocating
Effective Blade Length	744mm / 29.3"
Tooth Spacing	35mm
Blade Speed	3,600 per min
Handle Type	Adjustable rear handle, 5 positions
Vibration	Front handle: 3.9m/s² Rear handle: 4.8m/s²
Sound and Noise Data	Sound pressure level: 96.2dB(A) / Sound power level: 106.4dB(A)
CO²	1372g/kW.h
Assembled Dimensions	L: 1277mm x W: 272mm x H: 207mm
Weight	5.3kg
Warranty	5 year domestic, 2 year professional manufacturer's warranty
Promotional Image	/j/a/japan-technology_1_9.jpg

Features

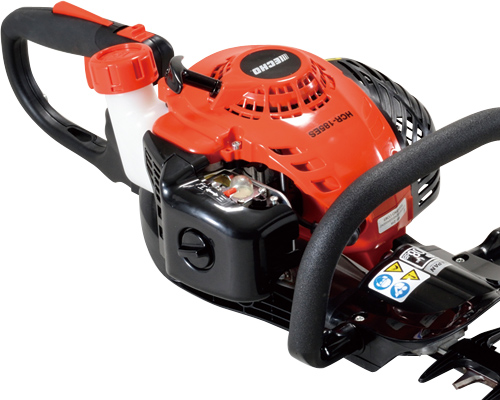

Lightweight and ergonomic Lightweight construction and robust components ensure the tool is rugged yet easy to wield.
	Ergonomically-designed handle layout The frame base is located higher than the cutter blade so the HCR-185ES runs smooth on hedges without bumping and snagging. A full suspension system reduces vibration on both front and rear handles for operator comfort.

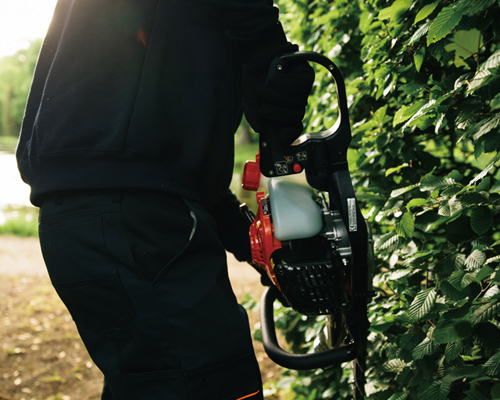

Rotatable handle Just another small innovation from Echo that makes a big difference. Echo's rotatable rear handle massively improves user comfort in all positions.
	Other key features Easy start system for quick, effortless startingThrottle lock-out helps to prevent accidental throttle engagement Integrated low vibration technology for comfortable operation and use over extended periods Easy, tool-free access to air filter, even when wearing gloves Three stage heavy duty air filter Laser cut, precision ground, double reciprocating blades for long lasting sharpness and a cleaner cut Twin blade layout 35mm blade pitch for tackling a variety of hedges Half-length blade guard helps protect the user from accidental contact with blades Superior exhaust system means exhaust emissions are redirected away from the user, also preventing scorching and discolouration of the hedge
