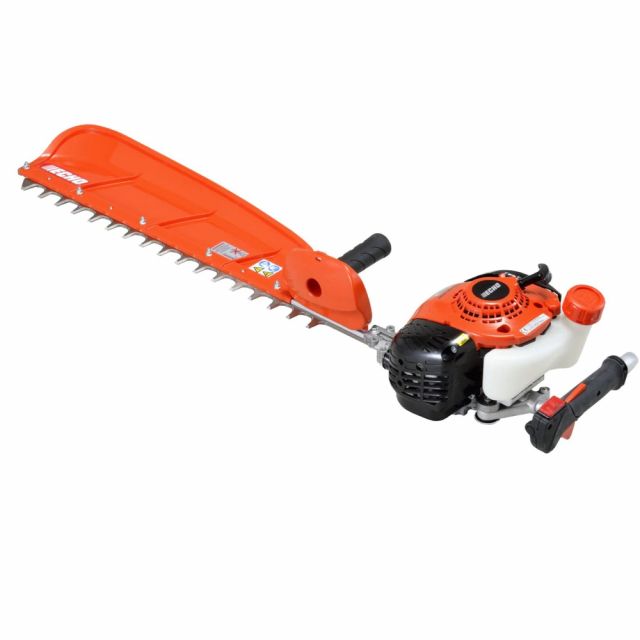

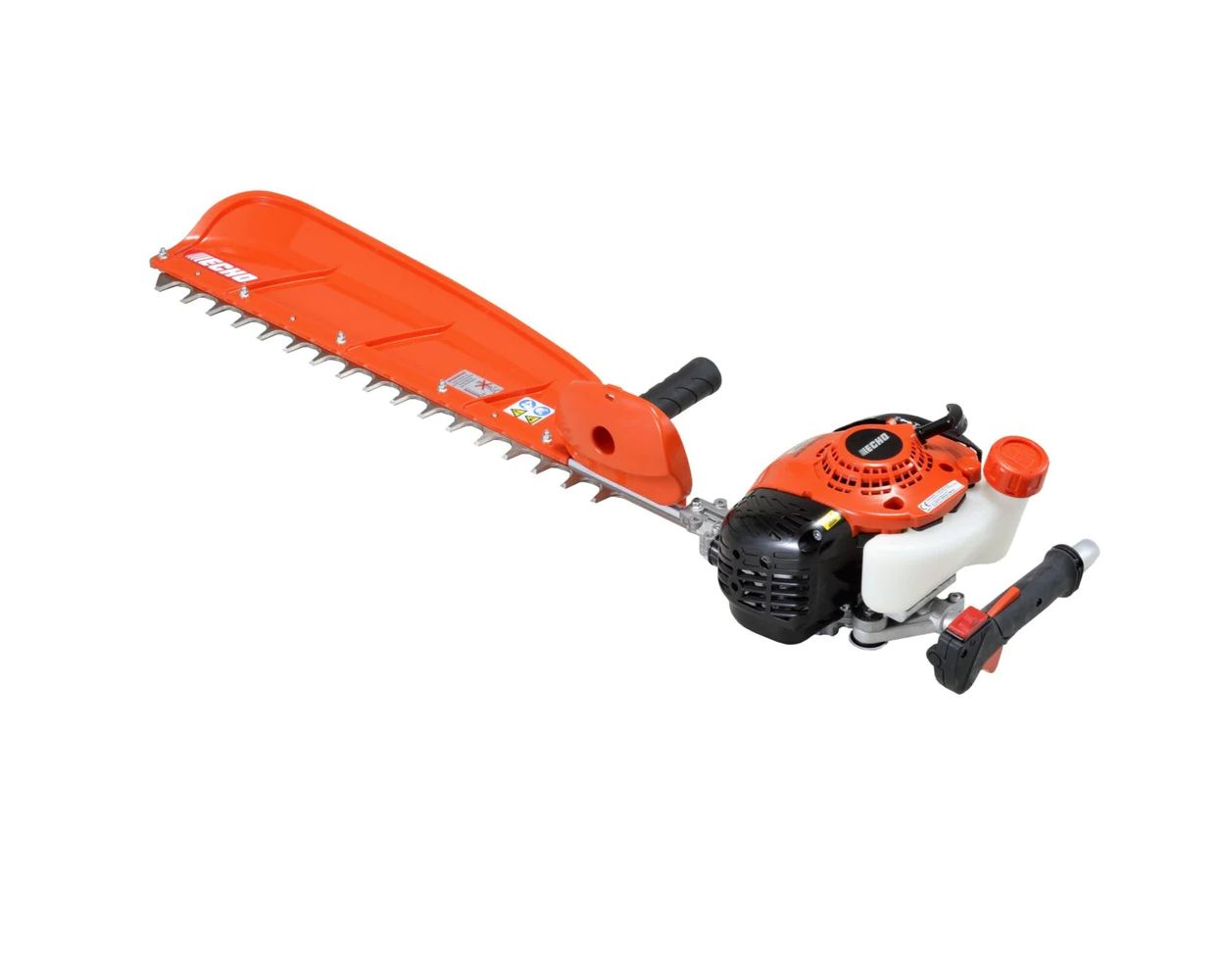

Echo HCS-2810ES X-Series Petrol Hedge Trimmer

Description

This professional-grade single-sided hedge trimmer from Echo has a lightweight, ergonomic design and provides beautiful finishes on hedges.

The Echo HCS-2810ES employs a powerful 21.2cc two-stroke engine to drive the single 59cm (23") blade. The laser-cut and precision-ground blade features a cuttings deflector to catch and sweep cuttings away from the hedge. 24mm long cutter blade teeth run at an increased stroke rate of 4,670 strokes per minute so trimming is precise and effortless.

Fitted with ergonomically-designed controls, the Echo HCS-2810ES features E-Start for easy starting and weighs just 4.7kg (dry weight). These features combine with vibration-isolating technology to make this machine suitable for prolonged use by landscapers and professional gardeners.

A superior front-facing exhaust system protects both the user and hedge from hot exhaust emissions, which prevents scorching and discolouration of the foliage. A vertical fuel filler neck makes refuelling quick and easy.

A healthy, handsome and well groomed hedge needs a razor sharp, precision ground, smooth running hedge cutter. Carefully balanced and generously specified, Echo hedge trimmers are built to last and to immaculately groom your hedges year after year. In private use an Echo hedge cutter could last a lifetime.

Echo outdoor power equipment is covered by a five year domestic warranty and two year warranty in professional environments. For the domestic user there is the total reassurance of using equipment designed and built for the professional, and a five year warranty offers even greater peace of mind). The quality of Echo assures the professional user the highest standards of efficiency and durability. Registration of Echo products is necessary to validate the warranty. For optimum performance, always follow the maintenance schedule in your owner's manual.

X-Series means Echo's best-in-class products. More power, lighter weight and performance that will noticeably increase your productivity. Designed for professionals who demand the best and highest quality tools. X-Series engines make this line-up exceptional. They offer a revolutionary combination to get jobs done faster with less fatigue.

Specification

More Information
Brand	Echo
Engine Type	2-stroke, air-cooled, single cylinder
Displacement	21.2cc
Rated Power Output	0.6kW / 0.8ps
Start Method	Recoil
Starting System	ES-start
Fuel Tank Capacity	0.39L
Fuel Consumption	0.40l/h at maximum engine power
Blades	Single-sided
Blade Length	589mm
Blade Height	24mm
Tooth Spacing	35mm
Blade Speed	4670spm
Vibration	Front handle: 8.7m/s² / Rear handle: 5.1m/s²
Sound and Noise Data	Sound pressure level: 94.9dB(A) / Sound power level: 105.2dB(A)
CO²	1380g/kW.h
Weight	4.7kg
Warranty	Manufacturer's - 5 years consumer, 2 years commercial (subject to registration within 30 days)
Promotional Image	/e/c/echo-x-series_13.jpg

Features

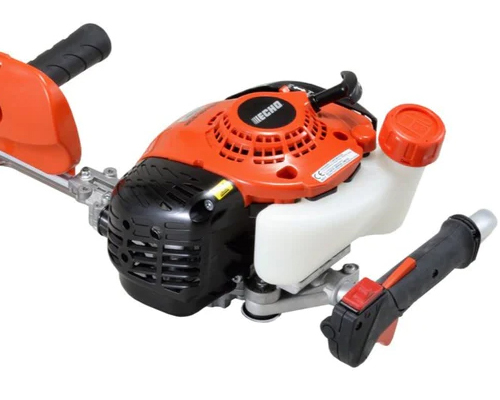

Professional engine The Echo professional-grade 21.2cc engine at the heart of the hedge cutter generates 0.6kW of power for effortless trimming.

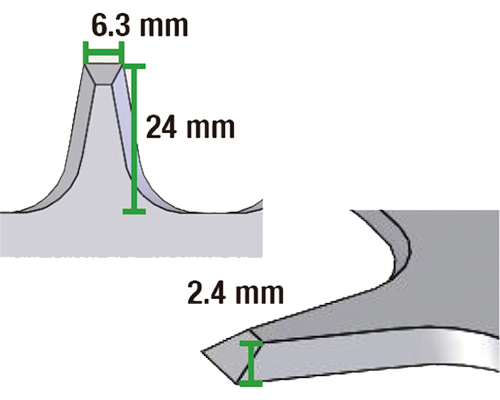

	Professional-grade cutting blades Long and thin blades provide superior cutting performance. Three sharp edges on the cutter blade produce sharp and clean finishing. The high intensity and lightweight aluminium cutter bar prevents blade deflection.

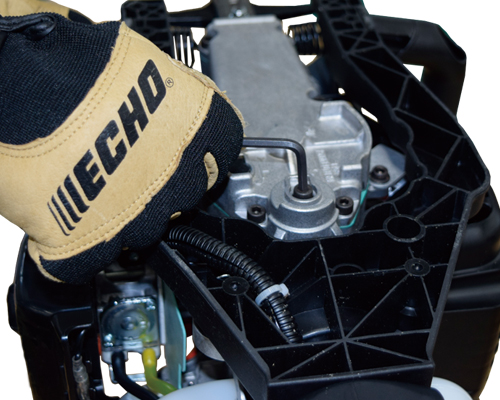

Easy blade grinding The blades can be slid safely for grinding through maintenance hole.
	Other key features Echo's patented ES-start system for effortless starting Professional-grade components inside gear case allows faster cutter speed for clear cut Cooling air intake from recoil cover allows engine run cooler with no blockage Front exhaust pipe eliminates damage to bush from hot exhaus Vibration reduced by Echo anti-vibe technology
Echo X-Series X-Series means Echo’s best in class products. More power, lighter weight and performance that will noticeably increase your productivity. Designed for professionals who demand the best and highest quality tools. Best-in-class features Each model has specific, best-in-class features that are designed to help green space professionals perform their jobs better in their respective applications. Being light weight and more powerful with features like vibration reduction and longer run times all contribute to getting one job done faster and moving onto the next. Withstand tough conditions Echo X-Series equipment is so extreme, that only the hardest working and committed can challenge the limits of its capabilities. The equipment is tested in extreme conditions to assure easy starting and smooth operation, whatever the environment.

Video

Manuals

PRODUCT BROCHURE

Brand

ABOUT ECHO...

In a world that’s constantly changing, one thing you can depend on, is your Echo tool.

For over 75 years, Echo has been building tools for commercial users around the world. From its humble beginnings in Japan with a simple handheld crop duster, to creating the world’s first ever power blowers in 1975, Echo has become a technological leader and well respected global brand.

As technology and users’ needs evolve, so too does Echo, staying on the pulse of the industry through decades of expertise and by listening to the feedback we receive. Echo's aim is not to react to changes in the market, but to be at the forefront. It does this by putting its dedication to producing the highest quality products above all else. Echo petrol tools continuously exceed increasingly stringent emissions requirements yet retain the robust power and dependability Echo is renowned for. Echo is reaching into new technologies such as professional performance battery tools and robotics with the careful and precise consideration that makes all Echo products ones you can depend on; this is our priority.

In the line-up you will find our staple, professional engine products amongst new battery products aimed at professionals, and for the first time, a range aimed solely at domestic users. Echo believes that the technology is now ready to offer great benefits for both professional and domestic users alike. So, whether you’re a fully-fledged outdoor professional or someone newly inspired to transform your environment into something more, Echo guarantees a tool that’s been crafted with expertise and passion, a tool you can depend on.

PURCHASING ECHO PRODUCTS

Echo products come equipped with a range of unique product features designed to deliver ease and comfort for users.

Echo is successful in producing low vibration and low noise for power tools and are leaders in two-stroke power tool emission technology. Echo casts and machines every engine in Japan where quality and consistency are closely controlled. And to gain manufacturing efficiencies, they are assembled at various factories around the world to the same exact standards.

Leading in two-stroke power tool emission technology
Echo has the widest variety of emission compliant engines ever certified for EPA, CARB regulations and EU directives. Echo has condensed the years of development in the USA into the trademarked Power Boost Tornado technology, with a highly refined two-stroke engine design. This technology is now applied across the Echo Power Tool range, with engines delivering more power, higher fuel efficiency and better engine lubrication, while improving combustion and reducing exhaust emissions.

Low Vibration
Echo has taken up the challenge and is successfully producing measures for maximum control of vibration. Echo products are designed and manufactured for constant and lengthy use by professional users, with homeowners/domestic users also able to enjoy the benefits of commercial quality and features. Under independent tests, Echo brush cutters and Echo hedge cutters have produced the lowest vibration figures. ECHO is one of very few manufacturers who make its own engines, therefore every ECHO product is designed and tested as a completed package. This ensures high quality, ergonomically designed equipment, with maximum vibration controls.

Low Noise
With power tool equipment in use in public and residential areas, noise is of primary concern, Echo has developed the technology to control and minimise noise pollution. Echo designs and manufactures engines from scratch, matching low noise engines to low vibration products, by retaining complete manufacturing control.

ECHO Innovation - i-start
The i-start device makes first time starting of two-stroke engines a certainty, while removing 90% of the effort required. i-start stores the energy of one long and gentle pull, or two short pulls of the recoil starter and delivers it in a dynamic burst that starts the engine every time.

ECHO Innovation - Easy Start
Denoted by the ES symbol on the power tool, Easy Start works in a different way to i-start to minimise the effort required to start the engine. With Easy Start the pulling power needed on the starter rope is greatly reduced compared to other makes, with no kick-back effect when cranking.

WARRANTY

2-YEAR PROFESSIONAL WARRANTY*

Yes, you did read that right. You can have absolute confidence in our equipment. ECHO is designed to be durable and to do what you ask it, wherever you take it. Not only that, our products are built to the highest standards of quality and performance. Echo's warranty is their statement of confidence and badge of honour. Echo – world-class technology.

* Registration of Echo products and servicing are necessary to validate the warranty.

5-YEAR DOMESTIC WARRANTY*

Five years is a long time. Longer than you’ll get from most of the equipment you buy. That’s because Echo stand behind their products. Echo have been building equipment for professionals for decades and that has given them an exceptional level of engineering and manufacturing expertise. As a home owner, you want long term dependability enjoyed by professionals, and a well built product that you can buy with confidence.

* Registration of Echo products and servicing are necessary to validate the warranty.

40V GARDEN+ BATTERY WARRANTY

The Garden+ range of tools are all covered by Echo's 2 + 1 domestic use warranty. Each tool comes with a 2 year domestic use warranty as standard and by registering your product you will receive an additional 1 year. All batteries have a fixed, 2 year warranty. Echo expertise is built into every tool, so Echo's warranty is their pledge that you receive a tool worthy of the Echo name. A tool that you can depend on.

* Registration of Echo products is necessary for the additional third year.

56V BATTERY WARRANTY

The Professional Series is backed by the same industry leading warranty as its petrol stablemates; 2 year professional use and 5 year domestic use warranties on tools, as well as a 2 year warranty on batteries. That’s because Echo products are built to the highest standards of quality and performance, meaning you can have complete confidence in Echo tools.
