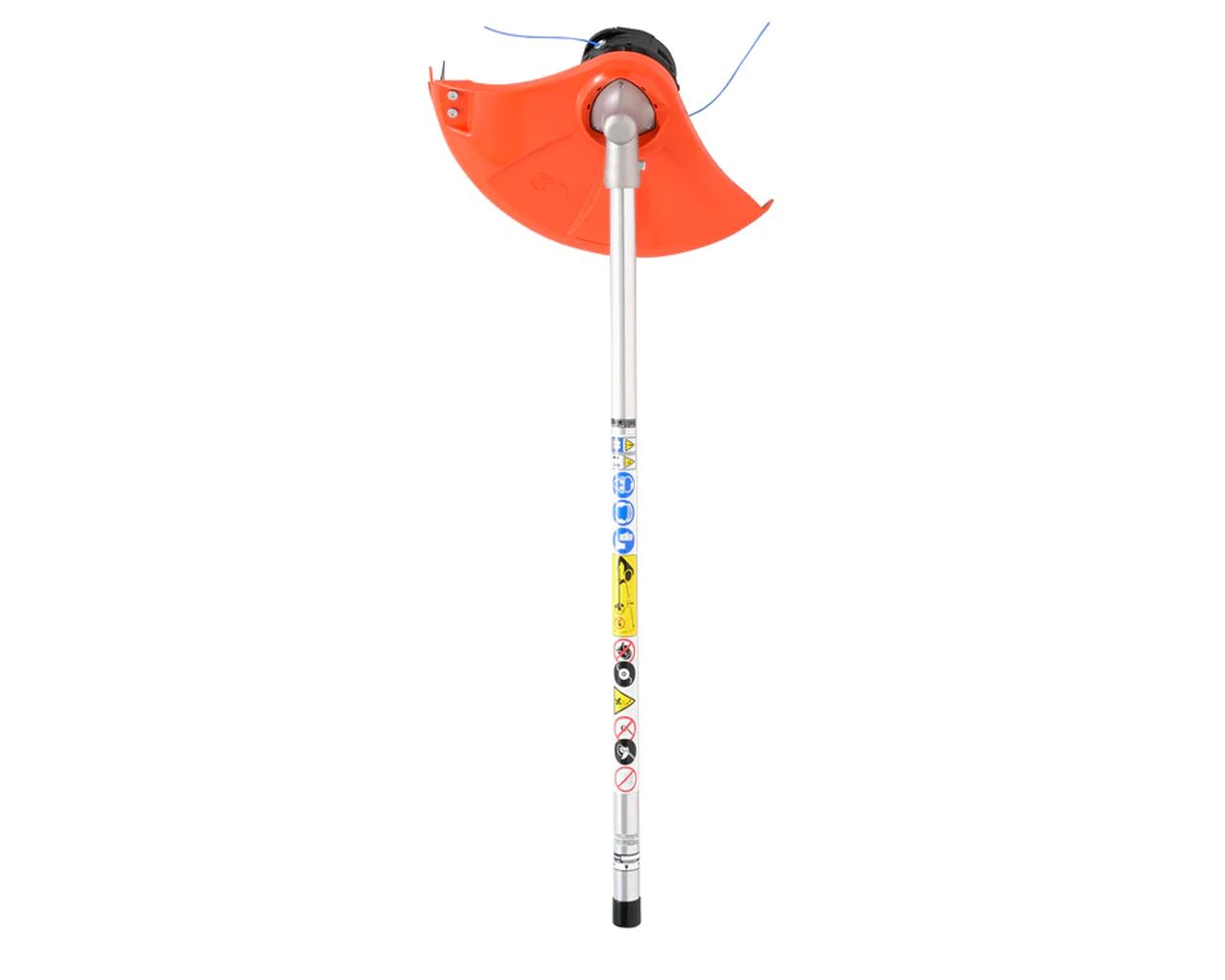

Echo MTA-DTB 56 eFORCE Multi Tool Grass Trimmer Attachment

Description

Echo MTA-DTB grass trimmer / brush cutter attachment for the the DPAS-2600 56 eFORCE power unit. The multi tool attachment comes as standard with a Speed Feed 400 trimmer head and Echo Black Diamond trimmer line which is a potent combination for cutting efficiency. Should you be tackling some seriously heavy stuff out there you can also opt for the three-cutter metal blade (which can be purchased separately), to make short work of thick brush and even small branches.

Echo's patented revolutionary Speed-Feed® trimmer head takes the hassle out of refilling your trimmer head and is the easiest loading tap-to advance head available. In fact the Speed-Feed reloads in under 30 seconds with just three easy steps, all without taking the head apart. SF400 is perfectly balanced for vibration-free operation and comes pre-loaded with 2.4mm Black diamond line.

The 56 eFORCE professional cordless multi tool system from Echo incorporates three easily switchable attachments to cover a range of jobs; a power pruner for precise cutting of high branches, a hedge trimmer for accurate and clean trimming and a brush cutter for powerful efficient clearing.

X-Series means ECHO's best-in-class products. More power, lighter weight and performance that will noticeably increase your productivity. Designed for professionals who demand the best and highest quality tools. X-Series engines make this line-up exceptional. They offer a revolutionary combination to get jobs done faster with less fatigue.

NB: Battery, charger and power unit NOT included.

Specification

More Information
Brand	Echo
Power Source Compatibility	DPAS-2600
Approx Run Time	Up to 32 mins
Gear Reduction Ratio	1.62
Cutting Diameter	17"
Rotating Direction	Counterclockwise, viewed from the top
Line Head	Speed Feed 400 twin nylon line head
Line Diameter	2.4mm Echo Black Diamond
Brush Cutter Blade	No, optional 3-tooth 9" accessory: EA-P021-014310
Drive Shaft	Flexible, solid steel
Drive Shaft Diameter	6.1mm
Pipe Diameter	25mm
Length	818mm
Weight	0.9kg
Weight with Power Unit	3.8kg
Assembled Dimensions	L: 1830mm x W: 310mm x H: 275mm (with power unit)
Warranty	5 year domestic, 2 year commercial manufacturer's
Promotional Image	/e/c/echo-eforce_5_1_1_1_1_1.jpg

Features

Echo X-Series

X-Series means Echo’s best in class products. More power, lighter weight and performance that will noticeably increase your productivity. Designed for professionals who demand the best and highest quality tools.

Best-in-class features

Each model has specific, best-in-class features that are designed to help green space professionals perform their jobs better in their respective applications. Being light weight and more powerful with features like vibration reduction and longer run times all contribute to getting one job done faster and moving onto the next.

Withstand tough conditions

Echo X-Series equipment is so extreme, that only the hardest working and committed can challenge the limits of its capabilities. The equipment is tested in extreme conditions to assure easy starting and smooth operation, whatever the environment.

Professional Series Warranty

The professional series is backed by the same industry leading warranty as its petrol stablemates; 2 year professional use and 5 year domestic use warranties on tools, as well as a 2 year warranty on all batteries. Echo products are built to the highest levels of quality and performance so you can have total confidence in Echo tools.
