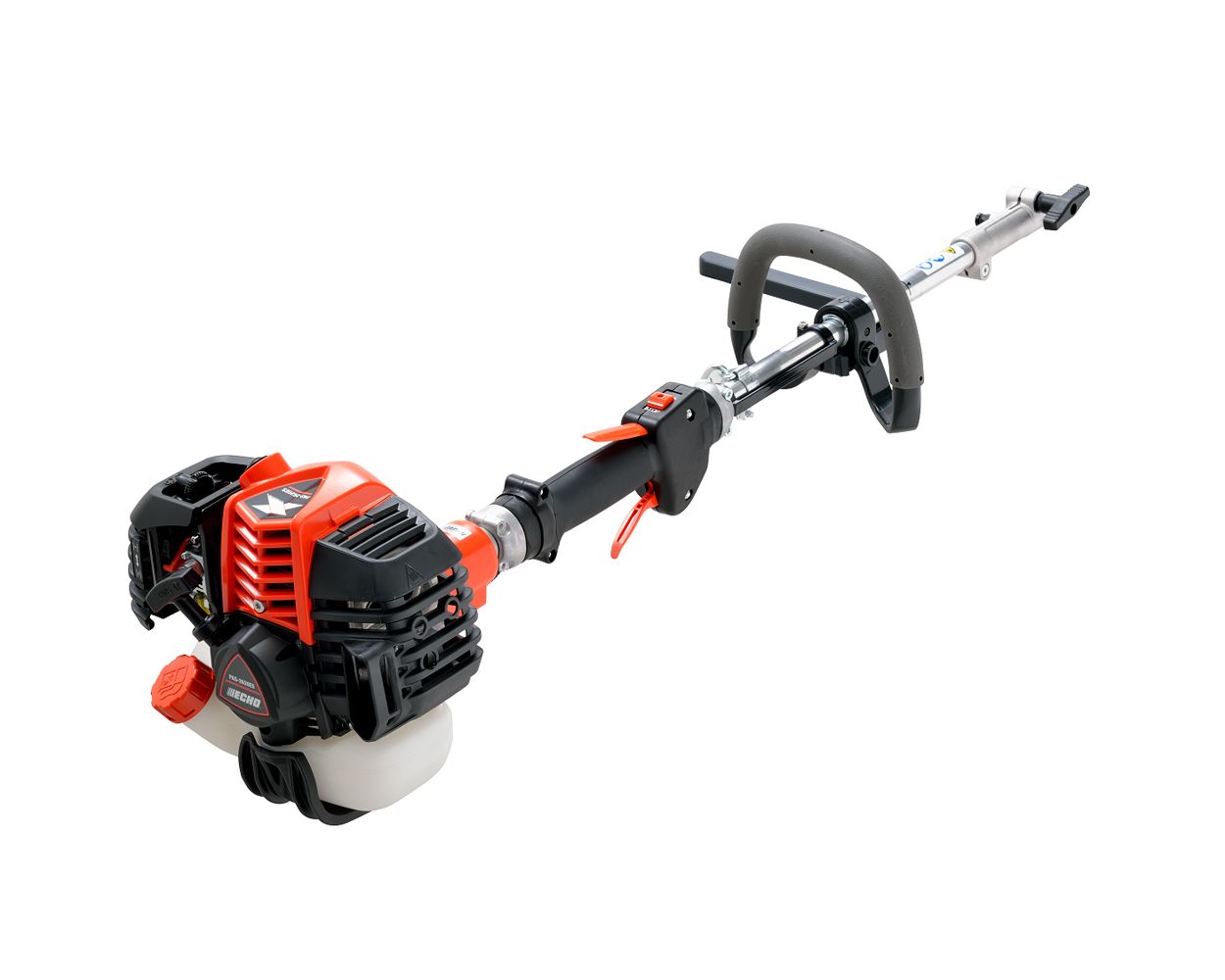

Echo PAS-2620ES X-Series Multi Tool Petrol Power Unit

Description

The Echo professional petrol multi tool system offers outstanding performance and dependability whatever job you are doing, enabling you to own a range of the very best tools at a much reduced total cost.

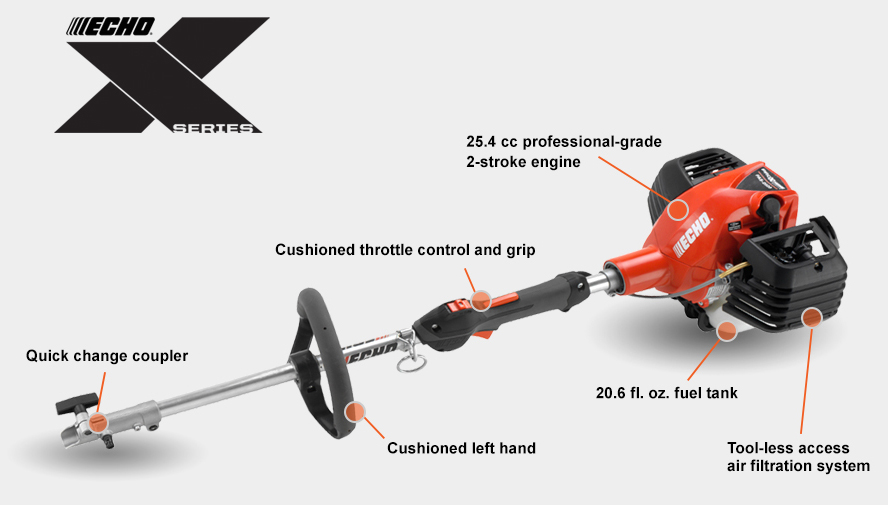

At the heart of the multi tool system is the PAS-2620ES power unit; a 25.4cc heavy-duty Echo engine of almost legendary relability, connected to a half-length driveshaft. It is equipped with Easy Start for almost effortless starting, a loop handle for ease of operation and grouped cluster controls. The Echo Easy Start system is a culmination of years of unique and innovative developements. It works to minimise the effort required to start the engine with greatly reduced pulling power and vastly reduced kick back effect. In most cases the effort required to pull the starter is reduced by up to 50% compared to standard models.

The PAS-2620ES has been designed for comfortable use and easy maintenance. The fuel tank is positioned to make fuelling easier with a higher intake spout and the primer is neatly located next to the choke for one handed operation, allowing the user to hold the shaft of the machine for stability when starting. A two-stage air filtration system increases cleaning capability and allows for longer maintenance intervals.

Thanks to the quick change coupler, nine optional tools can be fitted quickly and easily, simply by pushing and tightening the preferred attachment to the engine unit.

Specification

More Information
Brand	Echo
Engine Type	2-stroke
Displacement	25.4cc
Rated Power Output	1.0kW / 1.4ps
Fuel Tank Capacity	0.6L
Fuel / Oil Mixture	50 : 1
Fuel Consumption	0.6L/h at maximum engine power
Start Method	Recoil
Ignition System	CDI, ES-start assist start system
Spark Plug	NGK CMR7H
Carburettor	Walbro WYG-9, diaphragm, horizontal-draft
Coupling	Quick-change
Drive Shaft	Flexible shaft, 6.15mm diameter, 802mm long
Shaft Length	Housing: outer diameter: 25mm / inner diameter: 22mm / length: 760mm
Handle Type	Loop
Assembled Dimensions	L: 103.9mm x W: 32.5cm x H: 26.0cm
Weight	4.8kg
Warranty	Manufacturer's - 5 years consumer, 2 years commercial (subject to registration within 30 days)
Promotional Image	/e/c/echo-x-series_7.jpg

Features

Echo X-Series

X-Series means Echo’s best in class products. More power, lighter weight and performance that will noticeably increase your productivity. Designed for professionals who demand the best and highest quality tools.

Best-in-class features

Each model has specific, best-in-class features that are designed to help green space professionals perform their jobs better in their respective applications. Being light weight and more powerful with features like vibration reduction and longer run times all contribute to getting one job done faster and moving onto the next.

Withstand tough conditions

Echo X-Series equipment is so extreme, that only the hardest working and committed can challenge the limits of its capabilities. The equipment is tested in extreme conditions to assure easy starting and smooth operation, whatever the environment.
