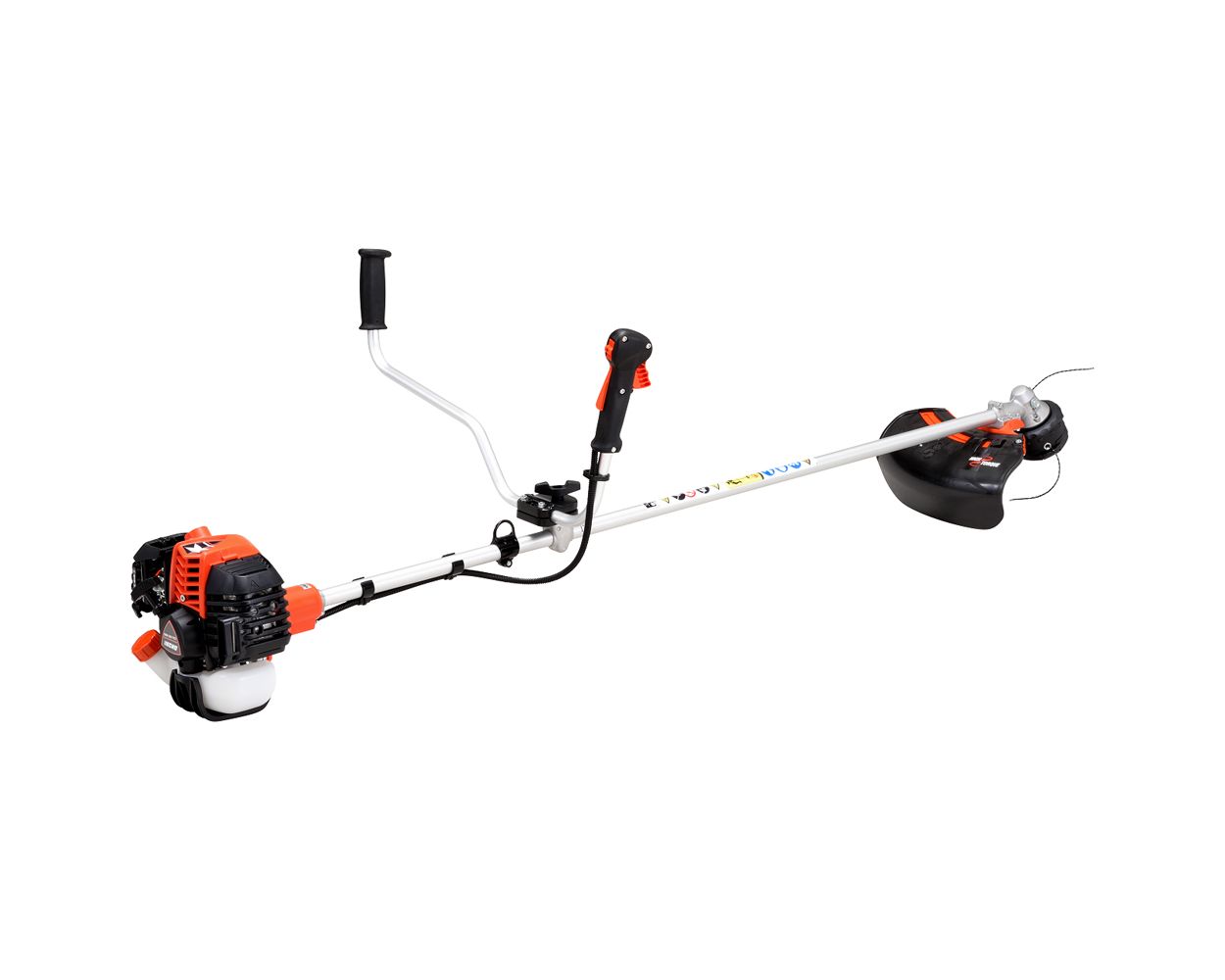

Echo SRM-2621TES/U X-Series Petrol Brush Cutter

Description

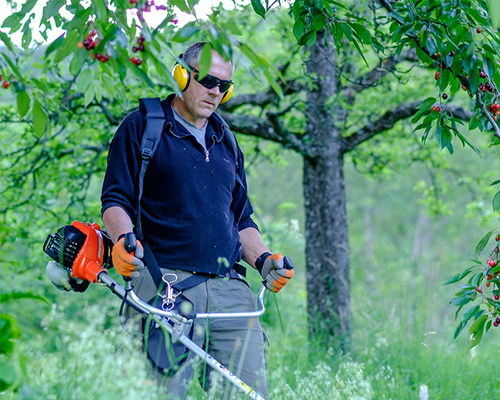

A good all-round professional brush cutter with cowhorn handle design and commercial-grade 25.4cc two-stroke engine. The light weight and ultra low vibration make this an ideal brush cutter for sustained use in the clearance of long grass, weeds and brush. A high tensile steel shaft, conveniently placed and easy to use controls and heavy duty debris shield are incorporated.

The Echo SRM-2621TES/U features a high torque gear case which makes it exceptionally powerful when clearing dense grass and brush. Lower rpm with more power mean the blades cut consistently, retaining precision, whether you're trimming short grass or tall, thick brush. High torque increases the power output of the tool making it comparable to a model with a 5cm³ to 10cm³ larger engine size.

Echo's patented ES-Start system is a culmination of years of unique and innovative developments. It works to minimise the effort required to start the engine with greatly reduced pulling power and vastly reduced kick back effect. In most cases the effort required to pull the starter is reduced by up to 50% compared to standard models. A heavy-duty air filter ensures dust and debris are kept away from the internal components of the engine.

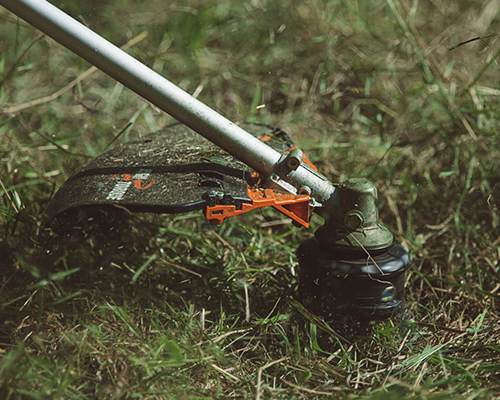

Supplied with twin line bump feed nylon head, the Echo SRM-2621TES/U is also capable of accepting metal blades for cutting through longer, denser grass and scrub. Echo's patented, revolutionary Speed Feed 400 trimmer head takes the hassle out of refilling your trimmer head by using the easiest load tap to advance head available. Speed Feed 400 reloads in under 30 seconds with just three easy steps, all without taking the head apart. Perfectly balanced for vibration-free operation, the trimmer head comes preloaded with 2.4mm line.

This brush cutter has the power and manoeuvrability to take on an incredibly versatile range of tasks in the most demanding environments and has become one of Echo's most popular products.

X-Series means Echo's best-in-class products. More power, lighter weight and performance that will noticeably increase your productivity. Designed for professionals who demand the best and highest quality tools. X-Series engines make this line-up exceptional. They offer a revolutionary combination to get jobs done faster with less fatigue.

Specification

More Information
Brand	Echo
Engine Type	2-stroke, air-cooled, single cylinder
Displacement	25.4cc
Rated Power Output	1.04kW / 1.4ps
Start Method	Easy start recoil system
Ignition System	CDI
Start Assist System	ES-start
Carburettor	Diaphragm
Spark Plug	NGK CMR7H
Fuel Tank Capacity	0.61L
Fuel / Oil Mixture	50 : 1
Fuel Consumption	0.61l/h
Gear Reduction Ratio	2.07
Brush Cutter Blade	Blade capable, not included (arbour diameter for blade: 25.4mm)
Nylon Line Head	Speed Feed SF400, dual line
Line Diameter	2.4mm
Line Feed	Bump
Rotating Direction	Counterclockwise as viewed from top
Shaft Type	Straight, solid
Shaft Diameter	25mm
Drive Shaft Diameter	7mm
Handle Type	Cowhorn
Vibration	Left handle: 4.6m/s / Right handle: 4.6m/s
Sound and Noise Data	Sound pressure level: 94.2dB(A) / Sound power level: 108.1dB(A)
CO²	998g/kW.h
Assembled Dimensions	L: 1789mm x W: 646mm x H: 537mm
Weight	5.7kg
Warranty	Manufacturer's - 5 years consumer, 2 years commercial (subject to registration within 30 days)
Promotional Image	/e/c/echo-x-series_8_1.jpg

Features

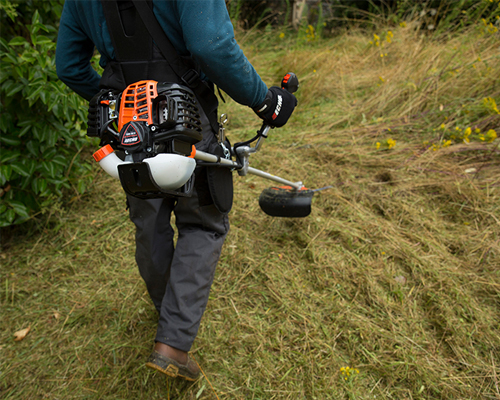

U-handle U-handles are ideal for large scale professional jobs as they take the weight off of the operator whilst providing a consistent range of movement.
	No job too big The SRM-2621TES/U has been specifically designed for large-scale commercial jobs, From the easy starting engine to the heavy duty air filter, every aspect has been carefully crafted to increase comfort and productivity.
High torque gear case By controlling the rpm the high torque gear case ensures smooth cutting whether you're dealing with short grass or tall, dense brush. This means you can move freely through differing areas of density without problems.
	Other key features Bike-style handle design Nylon line cutting head with 'Tap & Go' system Anti-vibration system offers operator comfort for extended periods of use, making it an attractive choice for local authorities and large contractors Exclusively tuned carburettor and air filtration system for a powerful but clean operation Pleated paper main air filter means longer service intervals and easier cleaning than a felt filter Foam pre-filter keeps dust and debris out of the pleats Tool-less air filter cover for easy air filter access, even when wearing gloves New fan cover design reduces snagging of cables on branches
Echo X-Series X-Series means Echo’s best in class products. More power, lighter weight and performance that will noticeably increase your productivity. Designed for professionals who demand the best and highest quality tools. Best-in-class features Each model has specific, best-in-class features that are designed to help green space professionals perform their jobs better in their respective applications. Being light weight and more powerful with features like vibration reduction and longer run times all contribute to getting one job done faster and moving onto the next. Withstand tough conditions Echo X-Series equipment is so extreme, that only the hardest working and committed can challenge the limits of its capabilities. The equipment is tested in extreme conditions to assure easy starting and smooth operation, whatever the environment.
