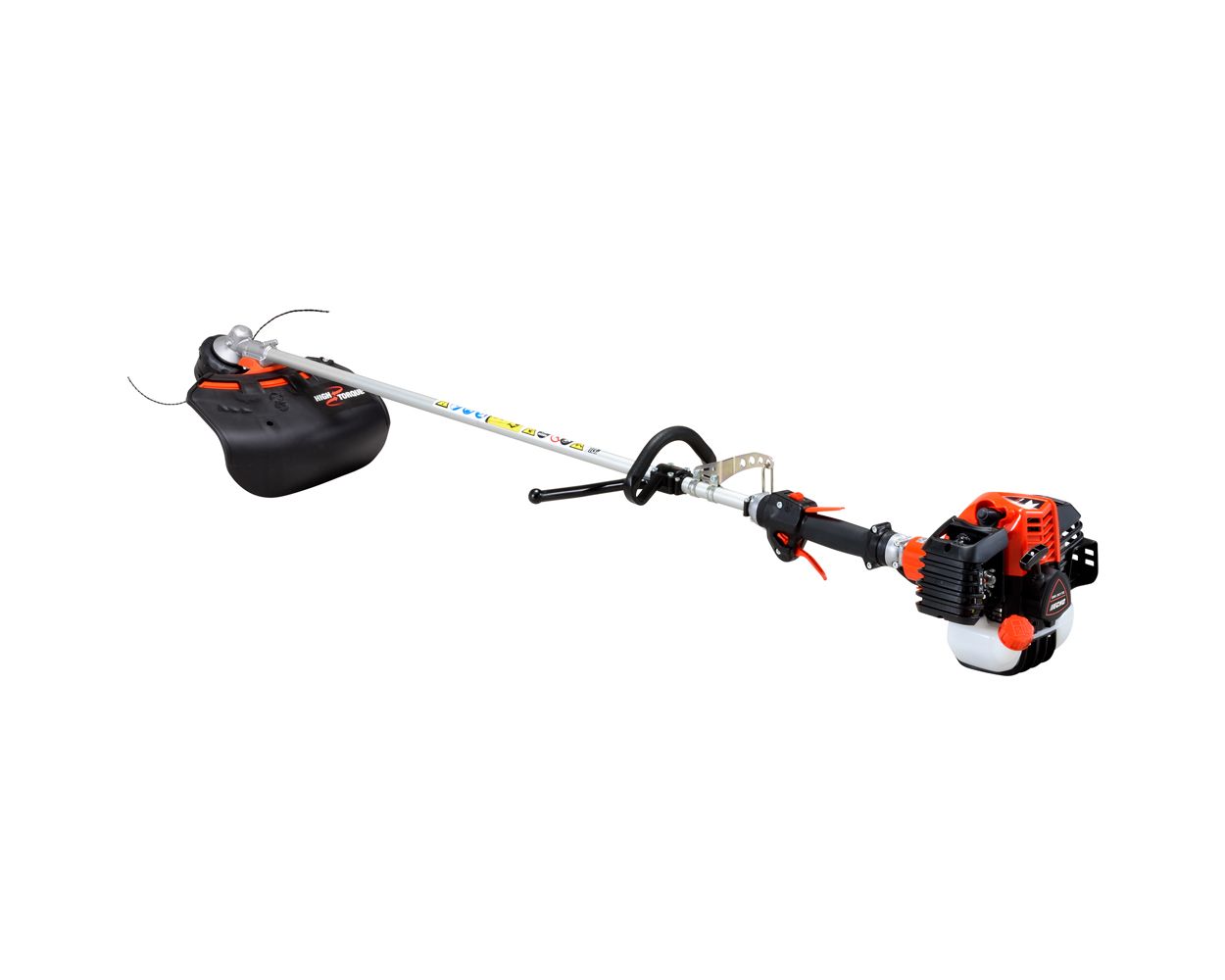

Echo SRM-3021TES/L X-Series Petrol Brush Cutter

Description

Specifically designed for large-scale commercial applications, the Echo SRM-3021TES/L brush cutter is a real powerhouse, featuring an incredibly powerful Echo engine and high torque gear case. Combining the perfect balance between value and performance, a high tensile steel shaft, well placed and easy to use cluster controls and heavy duty debris shield are incorporated.

The Echo SRM-3021TES/L features a high torque gear case which makes it exceptionally powerful when clearing dense grass and brush. With a 1 : 1.62 gear reduction ratio, it generates outstanding levels of torque – up to 50% more than previous models. Lower rpm with more power mean the blades cut consistently, retaining precision, whether you're trimming short grass or tall, thick brush.

The Echo professional-grade 30.5cc engine at the heart of the SRM-3021TES-L generates 1.3kW of power. Echo's patented ES-Start system is a culmination of years of unique and innovative developments to get you to work fast, every time. It works to minimise the effort required to start the engine with greatly reduced pulling power and vastly reduced kick back effect. In most cases the effort required to pull the starter is reduced by up to 50% compared to standard models. A heavy-duty air filter ensures dust and debris are kept away from the internal components of the engine.

Supplied with twin line bump feed nylon head, the Echo SRM-3021TES/L is also capable of accepting metal blades for cutting through longer, denser grass and scrub. Echo's patented, revolutionary Speed Feed 400 trimmer head takes the hassle out of refilling your line head by using the easiest load tap to advance head available. Speed Feed 400 reloads in under 30 seconds with just three easy steps, all without taking the head apart. Perfectly balanced for vibration-free operation, the trimmer head comes preloaded with 2.4mm line.

A powerful and robust, yet lightweight and manoeuvrable professional two-stroke brush cutter, each feature on the Echo SRM-3021TES/L has been meticulously crafted to increase your productivity so you can move to the next job faster.

X-Series means Echo's best-in-class products. More power, lighter weight and performance that will noticeably increase your productivity. Designed for professionals who demand the best and highest quality tools. X-Series engines make this line-up exceptional. They offer a revolutionary combination to get jobs done faster with less fatigue.

Specification

More Information
Brand	Echo
Engine Type	2-stroke, air-cooled, single cylinder
Displacement	30.5cc
Rated Power Output	1.3kW / 1.8ps
Start Method	Recoil
Ignition System	CDI
Start Assist System	ES-start
Carburettor	Diaphragm, Walbo WYG-11
Spark Plug	NGK CMR7H
Fuel Tank Capacity	0.71L
Fuel / Oil Mixture	50 : 1
Fuel Consumption	0.72l/h
Gear Reduction Ratio	1 : 1.62
Brush Cutter Blade	Blade capable, not included (arbour diameter for blade: 25.4mm)
Nylon Line Head	Speed Feed SF400, dual line
Line Diameter	2.4mm
Line Feed	Bump
Rotating Direction	Counterclockwise as viewed from top
Shaft Type	Straight, solid
Shaft Diameter	25mm
Drive Shaft Diameter	7mm
Handle Type	Loop
Vibration	Left handle: 3.5m/s / Right handle: 2.6m/s
Sound and Noise Data	Sound pressure level: 94.9dB(A) / Sound power level: 107.0dB(A)
CO²	912g/kW.h
Assembled Dimensions	L: 1799mm x W: 350mm x H: 349mm
Weight	5.9kg
Warranty	Manufacturer's - 5 years consumer, 2 years commercial (subject to registration within 30 days)
Promotional Image	/e/c/echo-x-series_8_2.jpg

Features

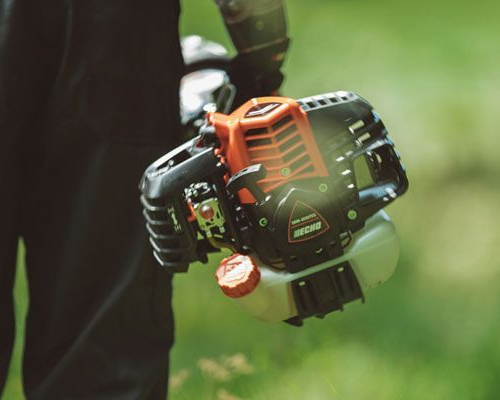

Powerful by nature The Echo professional-grade 30.5cc engine at the heart of the brush cutter generates 1.3kW of power. Coupled with the high torque gear case, you get the power to make light work of the toughest jobs.

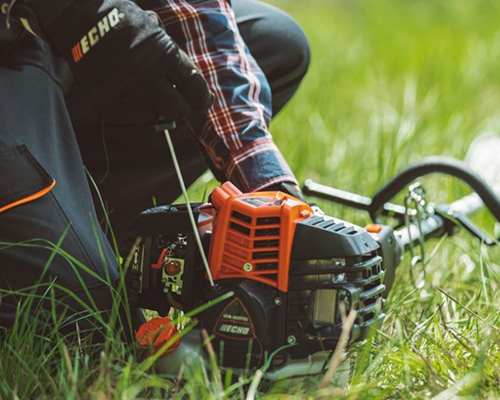

	Ease of use Echo's patented ES start technology will get you to work fast, every time. The lightweight and durable frame complements the loop handle perfectly for optimum manoeuvrability and precision. Add an anti-vibration engine casing to the mix and you have the perfect tool for powering through jobs.
Increased productivity Specifically designed for large scale applications, this is a powerful and robust, yet lightweight and manoeuvrable brush cutter. Each feature has been meticulously crafted to increase your productivity so you can move on to the next job faster.
	Other key features Easy start system for quick, effortless starting Loop handle design Nylon line cutting head with 'Tap & Go' system Anti-vibration system offers operator comfort for extended periods of use, making it an attractive choice for local authorities and large contractors Exclusively tuned carburettor and air filtration system for a powerful but clean operation Pleated paper main air filter means longer service intervals and easier cleaning than a felt filter Foam pre-filter keeps dust and debris out of the pleats Tool-less air filter cover for easy air filter access, even when wearing gloves Fan cover design reduces snagging of cables on branches
Echo X-Series X-Series means Echo’s best in class products. More power, lighter weight and performance that will noticeably increase your productivity. Designed for professionals who demand the best and highest quality tools. Best-in-class features Each model has specific, best-in-class features that are designed to help green space professionals perform their jobs better in their respective applications. Being light weight and more powerful with features like vibration reduction and longer run times all contribute to getting one job done faster and moving onto the next. Withstand tough conditions Echo X-Series equipment is so extreme, that only the hardest working and committed can challenge the limits of its capabilities. The equipment is tested in extreme conditions to assure easy starting and smooth operation, whatever the environment.

Video

Manuals

SERVICE DATA

Brand

ABOUT ECHO...

In a world that’s constantly changing, one thing you can depend on, is your Echo tool.

For over 75 years, Echo has been building tools for commercial users around the world. From its humble beginnings in Japan with a simple handheld crop duster, to creating the world’s first ever power blowers in 1975, Echo has become a technological leader and well respected global brand.

As technology and users’ needs evolve, so too does Echo, staying on the pulse of the industry through decades of expertise and by listening to the feedback we receive. Echo's aim is not to react to changes in the market, but to be at the forefront. It does this by putting its dedication to producing the highest quality products above all else. Echo petrol tools continuously exceed increasingly stringent emissions requirements yet retain the robust power and dependability Echo is renowned for. Echo is reaching into new technologies such as professional performance battery tools and robotics with the careful and precise consideration that makes all Echo products ones you can depend on; this is our priority.

In the line-up you will find our staple, professional engine products amongst new battery products aimed at professionals, and for the first time, a range aimed solely at domestic users. Echo believes that the technology is now ready to offer great benefits for both professional and domestic users alike. So, whether you’re a fully-fledged outdoor professional or someone newly inspired to transform your environment into something more, Echo guarantees a tool that’s been crafted with expertise and passion, a tool you can depend on.

PURCHASING ECHO PRODUCTS

Echo products come equipped with a range of unique product features designed to deliver ease and comfort for users.

Echo is successful in producing low vibration and low noise for power tools and are leaders in two-stroke power tool emission technology. Echo casts and machines every engine in Japan where quality and consistency are closely controlled. And to gain manufacturing efficiencies, they are assembled at various factories around the world to the same exact standards.

Leading in two-stroke power tool emission technology
Echo has the widest variety of emission compliant engines ever certified for EPA, CARB regulations and EU directives. Echo has condensed the years of development in the USA into the trademarked Power Boost Tornado technology, with a highly refined two-stroke engine design. This technology is now applied across the Echo Power Tool range, with engines delivering more power, higher fuel efficiency and better engine lubrication, while improving combustion and reducing exhaust emissions.

Low Vibration
Echo has taken up the challenge and is successfully producing measures for maximum control of vibration. Echo products are designed and manufactured for constant and lengthy use by professional users, with homeowners/domestic users also able to enjoy the benefits of commercial quality and features. Under independent tests, Echo brush cutters and Echo hedge cutters have produced the lowest vibration figures. ECHO is one of very few manufacturers who make its own engines, therefore every ECHO product is designed and tested as a completed package. This ensures high quality, ergonomically designed equipment, with maximum vibration controls.

Low Noise
With power tool equipment in use in public and residential areas, noise is of primary concern, Echo has developed the technology to control and minimise noise pollution. Echo designs and manufactures engines from scratch, matching low noise engines to low vibration products, by retaining complete manufacturing control.

ECHO Innovation - i-start
The i-start device makes first time starting of two-stroke engines a certainty, while removing 90% of the effort required. i-start stores the energy of one long and gentle pull, or two short pulls of the recoil starter and delivers it in a dynamic burst that starts the engine every time.

ECHO Innovation - Easy Start
Denoted by the ES symbol on the power tool, Easy Start works in a different way to i-start to minimise the effort required to start the engine. With Easy Start the pulling power needed on the starter rope is greatly reduced compared to other makes, with no kick-back effect when cranking.

WARRANTY

2-YEAR PROFESSIONAL WARRANTY*

Yes, you did read that right. You can have absolute confidence in our equipment. ECHO is designed to be durable and to do what you ask it, wherever you take it. Not only that, our products are built to the highest standards of quality and performance. Echo's warranty is their statement of confidence and badge of honour. Echo – world-class technology.

* Registration of Echo products and servicing are necessary to validate the warranty.

5-YEAR DOMESTIC WARRANTY*

Five years is a long time. Longer than you’ll get from most of the equipment you buy. That’s because Echo stand behind their products. Echo have been building equipment for professionals for decades and that has given them an exceptional level of engineering and manufacturing expertise. As a home owner, you want long term dependability enjoyed by professionals, and a well built product that you can buy with confidence.

* Registration of Echo products and servicing are necessary to validate the warranty.

40V GARDEN+ BATTERY WARRANTY

The Garden+ range of tools are all covered by Echo's 2 + 1 domestic use warranty. Each tool comes with a 2 year domestic use warranty as standard and by registering your product you will receive an additional 1 year. All batteries have a fixed, 2 year warranty. Echo expertise is built into every tool, so Echo's warranty is their pledge that you receive a tool worthy of the Echo name. A tool that you can depend on.

* Registration of Echo products is necessary for the additional third year.

56V BATTERY WARRANTY

The Professional Series is backed by the same industry leading warranty as its petrol stablemates; 2 year professional use and 5 year domestic use warranties on tools, as well as a 2 year warranty on batteries. That’s because Echo products are built to the highest standards of quality and performance, meaning you can have complete confidence in Echo tools.
