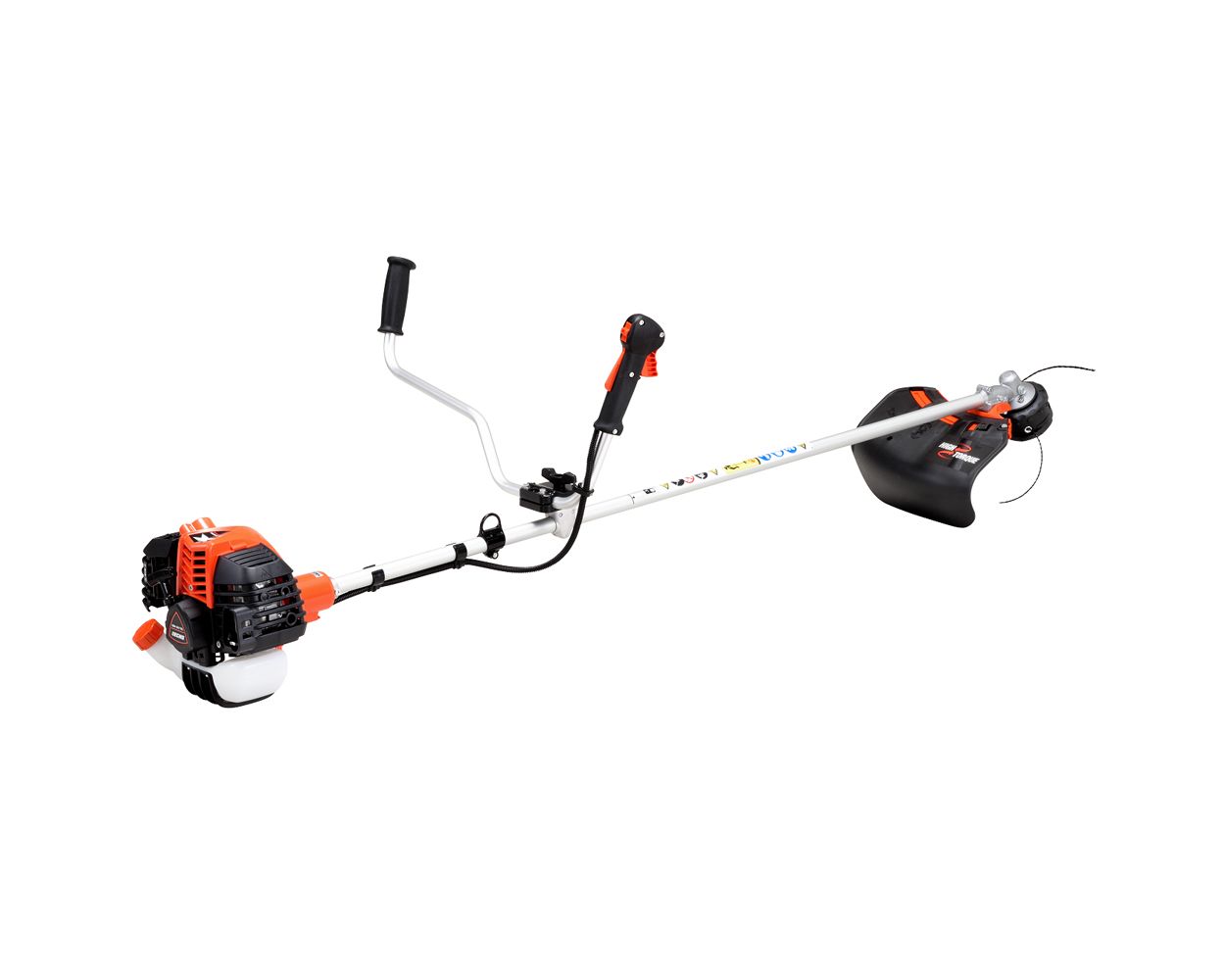

Echo SRM-3021TES/U X-Series Petrol Brush Cutter

Description

Designed to power through the biggest, most gruelling jobs out there, the Echo SRM-3021TES/U brush cutter is a real powerhouse, featuring an incredibly powerful Echo engine and high torque gear case, ES-Start and digital CDI for effortless starting in all conditions. The U-handles also make this machine ideal for large scale, professional jobs by taking the weight off of the operator whilst providing a consistent range of movement.

The Echo SRM-3021TES/U features a high torque gear case which makes it exceptionally powerful when clearing dense grass and brush. With a 1 : 1.62 gear reduction ratio, it generates outstanding levels of torque – up to 50% more than previous models. Lower rpm with more power mean the blades cut consistently, retaining precision, whether you're trimming short grass or tall, thick brush.

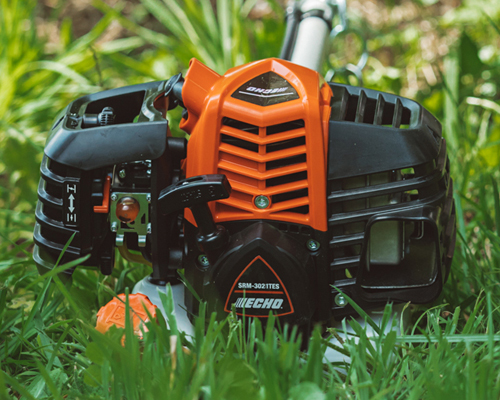

The Echo professional-grade 30.5cc engine at the heart of the SRM-3021TES-U generates 1.3kW of power. Echo's patented ES-Start system is a culmination of years of unique and innovative developments to get you to work fast, every time. It works to minimise the effort required to start the engine with greatly reduced pulling power and vastly reduced kick back effect. In most cases the effort required to pull the starter is reduced by up to 50% compared to standard models. A heavy-duty air filter ensures dust and debris are kept away from the internal components of the engine.

Supplied with twin line bump feed nylon head, the Echo SRM-3021TES/U is also capable of accepting metal blades for cutting through longer, denser grass and scrub. Echo's patented, revolutionary Speed Feed 400 trimmer head takes the hassle out of refilling your line head by using the easiest load tap to advance head available. Speed Feed 400 reloads in under 30 seconds with just three easy steps, all without taking the head apart. Perfectly balanced for vibration-free operation, the trimmer head comes preloaded with 2.4mm line.

A powerful and robust, yet lightweight and manoeuvrable professional two-stroke brush cutter, each feature on the Echo SRM-3021TES/U has been meticulously crafted to increase your productivity so you can move to the next job faster.

X-Series means Echo's best-in-class products. More power, lighter weight and performance that will noticeably increase your productivity. Designed for professionals who demand the best and highest quality tools. X-Series engines make this line-up exceptional. They offer a revolutionary combination to get jobs done faster with less fatigue.

Specification

More Information
Brand	Echo
Engine Type	2-stroke, air-cooled, single cylinder
Displacement	30.5cc
Rated Power Output	1.3kW / 1.8ps
Start Method	Recoil
Ignition System	CDI
Start Assist System	ES-start
Carburettor	Diaphragm, Walbo WYG-11
Spark Plug	NGK CMR7H
Fuel Tank Capacity	0.71L
Fuel / Oil Mixture	50 : 1
Fuel Consumption	0.72l/h
Gear Reduction Ratio	1 : 1.62
Brush Cutter Blade	Blade capable, not included (arbour diameter for blade: 25.4mm)
Nylon Line Head	Speed Feed SF400, dual line
Line Diameter	2.4mm
Line Feed	Bump
Rotating Direction	Counterclockwise as viewed from top
Shaft Type	Straight, solid
Shaft Diameter	25mm
Drive Shaft Diameter	7mm
Handle Type	Cowhorn
Vibration	Left handle: 3.9m/s / Right handle: 2.6m/s
Sound and Noise Data	Sound pressure level: 94.9dB(A) / Sound power level: 107.7dB(A)
CO²	912g/kW.h
Assembled Dimensions	L: 1799mm x W: 646mm x H: 569mm
Weight	6.0kg
Warranty	Manufacturer's - 5 years consumer, 2 years commercial (subject to registration within 30 days)
Promotional Image	/e/c/echo-x-series_8_2_1.jpg

Features

Powerful by nature The Echo professional-grade 30.5cc engine at the heart of the brush cutter generates 1.3kW of power. Echo's patented ES start technology will get you to work fast, every time. The lightweight and durable frame complements the cowhorn handle perfectly for optimum manoeuvrability and precision. Add an anti-vibration engine casing to the mix and you have the perfect tool for powering through jobs.
	Increased productivity As part of the X-Series, the SRM-3021TES/U is a 'best in class' product which means your productivity will be noticibly improved, leaving more time for the finer things in life. Specifically designed for large scale applications, this is a powerful and robust, yet lightweight and manoeuvrable brush cutter. Each feature has been meticulously crafted to increase your productivity so you can move on to the next job faster.
High torque The high torque gear case regulates rotational speed and force depending on the density of brush, which basically means you don't need to thank about what you're trimming - just power on through!
	Other key features Easy start system for quick, effortless starting Bike handle design Nylon line cutting head with 'Tap & Go' system Anti-vibration system offers operator comfort for extended periods of use, making it an attractive choice for local authorities and large contractors Exclusively tuned carburettor and air filtration system for a powerful but clean operation Pleated paper main air filter means longer service intervals and easier cleaning than a felt filter Foam pre-filter keeps dust and debris out of the pleats Tool-less air filter cover for easy air filter access, even when wearing gloves Fan cover design reduces snagging of cables on branches
Echo X-Series X-Series means Echo’s best in class products. More power, lighter weight and performance that will noticeably increase your productivity. Designed for professionals who demand the best and highest quality tools. Best-in-class features Each model has specific, best-in-class features that are designed to help green space professionals perform their jobs better in their respective applications. Being light weight and more powerful with features like vibration reduction and longer run times all contribute to getting one job done faster and moving onto the next. Withstand tough conditions Echo X-Series equipment is so extreme, that only the hardest working and committed can challenge the limits of its capabilities. The equipment is tested in extreme conditions to assure easy starting and smooth operation, whatever the environment.
