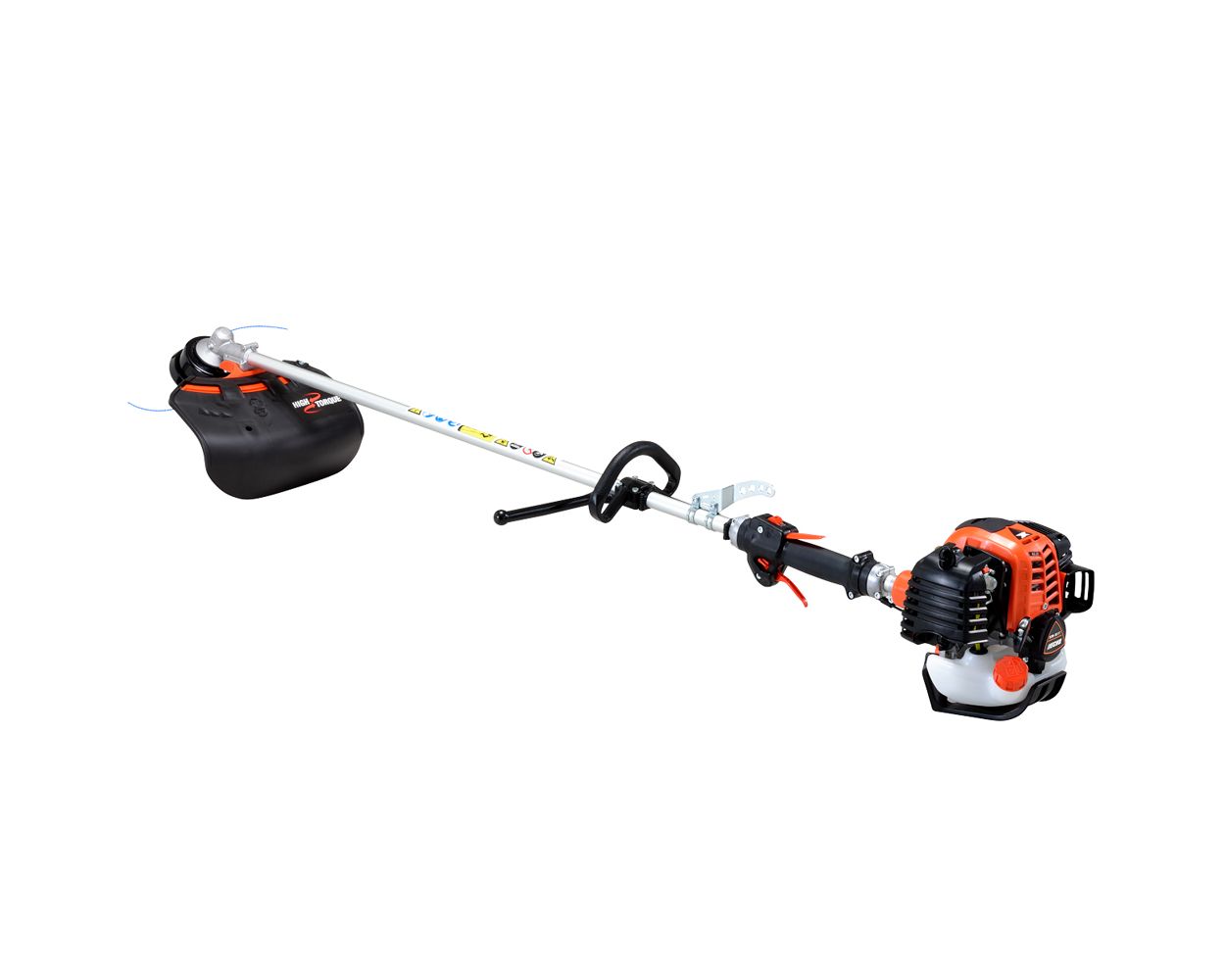

Echo SRM-3611T/L X-Series Hybrid 4 Petrol Brush Cutter

Description

The Echo SRM-3611T/L is a powerful trimmer designed for commercial application boasting exceptional cutting performance with high torque for tackling those difficult jobs. Featuring a lightweight yet robust frame alongside a large fuel tank and heavy duty air filter, you'll spend less time on maintenance and more time getting jobs done. The loop handle version is slightly lighter than its U handle counterpart.

The Echo 36.3cc SRM-3611T/L loop handle brush cutter features a high torque head. With a 1:1.62 gear reduction ratio, it generates outstanding levels of torque – up to 50% more than previous models.

More torque means more cutting performance and by installing a thicker line, the user can tackle a wider range of tasks with just one brush cutter. Featuring a comparatively small engine, the unit is lightweight and features low levels of vibration, but has the cutting performance of a higher capacity machine.

The SRM-3611T-L’s engine combines the best features of 4-stroke and 2-stroke engines: stable cutting performance in heavy working conditions; low noise and low emissions; runs with mixed fuel, meaning there’s no need to check oil levels; can be operated in any position.

X-Series means Echo's best-in-class products. More power, lighter weight and performance that will noticeably increase your productivity. Designed for professionals who demand the best and highest quality tools. X-Series engines make this line-up exceptional. They offer a revolutionary combination to get jobs done faster with less fatigue.

Specification

More Information
Brand	Echo
Engine Type	Hybrid 4-stroke, air-cooled, single cylinder
Displacement	36.3cc
Rated Power Output	1.4kW / 1.9ps
Start Method	Recoil
Ignition System	CDI, digital megneto
Start Assist System	Decompression valve
Carburettor	Diaphragm, ZAMA RB-110137B
Spark Plug	NGK CMR5H
Fuel Tank Capacity	0.85L
Fuel / Oil Mixture	50 : 1 (premixed alkylate fuel for 2-stroke can be used)
Fuel Consumption	0.92l/h
Gear Reduction Ratio	1 : 1.62
Cutting Diameter	510mm / 20"
Brush Cutter Blade	No
Nylon Line Head	Z5 M10L (EA-X047-000332)
Line Diameter	3.0mm, SilentSpiral
Length of Cord	5.0m
Line Feed	Tap & go
Rotating Direction	Counterclockwise as viewed from top
Shaft Type	Straight, solid
Shaft Diameter	25mm
Drive Shaft Diameter	7mm
Handle Type	Loop
Handle Type	Front: D-loop Rear: Throttle handle
Grip	Rubber, anti-vibration
Vibration	Left handle: 5.8m/s / Right handle: 3.9m/s
Sound and Noise Data	Sound pressure level: 94.5dB(A) / Sound power level: 106.5dB(A)
CO²	832g/kW.h
Assembled Dimensions	L: 1806mm x W: 340mm x H: 363mm
Weight	6.1kg
Warranty	Manufacturer's - 5 years consumer, 2 years commercial (subject to registration within 30 days)
Promotional Image	/e/c/echo-x-series_8_2_2.jpg

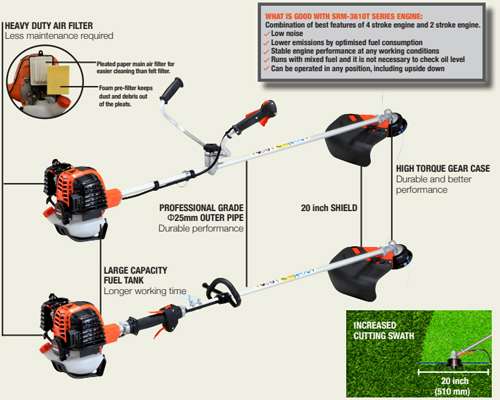

Features

Features & Benefits

High power, low noise and lower emissions

36.3cc professional-grade hybrid engine provides stable cutting performance at heavy working conditions like 4-stroke engine
Low noise and lower emissions
Mixed fuel can be used and operated in any position

Suitable for tough work

Powerful engine along with high torque gear case powers through dense brush faster
Professional-grade 25mm outer pipe for durability
Professional-grade felt air filter for proved filtration and longer maintenance interval
20" shield allows longer swath for increased work efficiency.
Large capacity fuel tank for reduced down-time
Nylon head Z5 as standard

Ease of use

Tool-less air filter cover for easy access
Fan cover design reduces snagging of cables on branches
Anti-vibration engine mount for operator comfort

Hybrid 4

The best of both worlds

Historically, most outdoor power tools were powered by 2-stroke engines which are lightweight, easy to maintain with few moving parts and have excellent power-to-weight ratios. But since the early-1990s,
manufacturers have been under regulatory pressure to achieve lower exhaust emissions.

Four-stroke engines inherently offer a much cleaner-burning alternative to provide lower emission levels than even the best 2-stroke engines, but add weight to the product.

Blending the best elements of two-stroke and four-stroke technology, provides an ideal solution for the hand-held products. The result is Hybrid 4 Engine Technology.

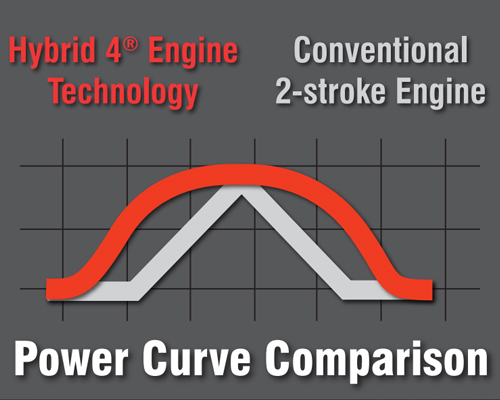

Hybrid 4 vs traditional 2-stroke

Looking for a greener alternative to traditional 2-stroke engine-driven equipment? Hybrid 4 is definitely the answer. This extraordinary technology combines the best part of 2-stroke engines (lightweight,
high power-to-weight ratios, minimal maintenance and all-position operation) with that of 4-stroke engines (precise ignition/exhaust timing and reduced emissions). Hybrid 4 products have less emissions, better fuel economy, and more torque than traditional
2-stroke models.

Built for professionals

The SRM-3611T/L is built for professionals from the ground up

The new Echo design provides:-

High power
High torque
High durability
Good acceleration
Low noise
Low maintenance cycle
Ease of maintenance

Anti-vibration

The anti-vibration engine mount ensures comfortable operation, making the SRM-3611T/L perfect for large, commercial jobs.

High torque gear case

The high torque gear case regulates the rpm so you get smooth and precise cutting regardless of whether you're working with short grass or tall, dense brush. Move through different intensities of brush without compromising that clean cut.

Echo X-Series

X-Series means Echo’s best in class products. More power, lighter weight and performance that will noticeably increase your productivity. Designed for professionals who demand the best and highest quality tools.

Best-in-class features

Each model has specific, best-in-class features that are designed to help green space professionals perform their jobs better in their respective applications. Being light weight and more powerful with features like vibration reduction and longer run times all contribute to getting one job done faster and moving onto the next.

Withstand tough conditions

Echo X-Series equipment is so extreme, that only the hardest working and committed can challenge the limits of its capabilities. The equipment is tested in extreme conditions to assure easy starting and smooth operation, whatever the environment.
