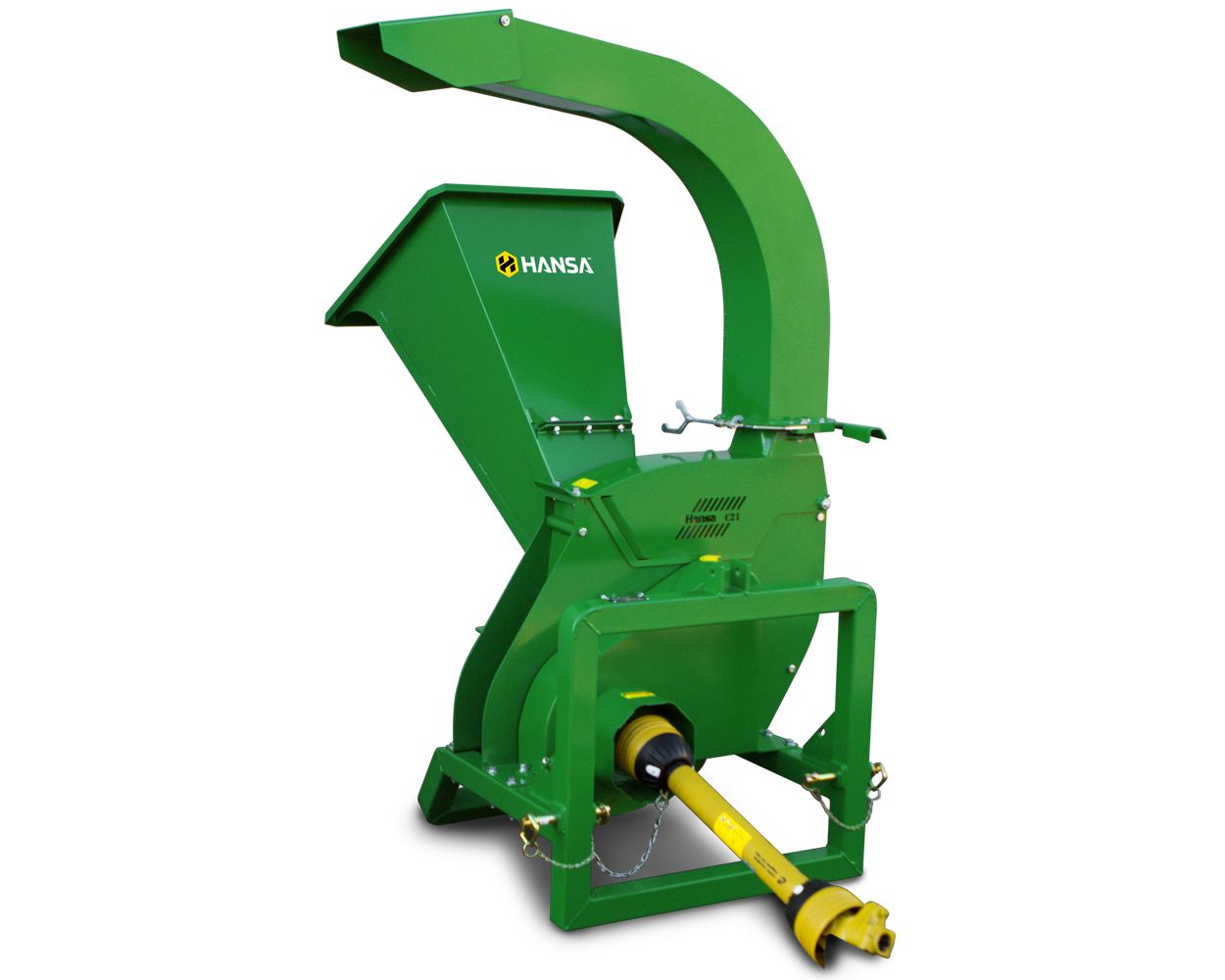

A world-class chipper designed for commercial use and built in New Zealand by Hansa, the C21PTO is the largest gravity self-feeding model in the range. Boasting an extremely heavy duty cutting disc, the machine is able to handle the rigorous needs of the most demanding operator. Its inlet chute is specifically shaped to assist the feeding of heavier branches and bushy foliage.
Suitable for lawn tractors of 20hp to 55hp, this chipper is connected to the tractor by the three-point linkage. Designed for a PTO speed of 540rpm, the driveshaft is fitted with a shear pin device for protection of the machine and tractor. Because of its compact design, the machine is relatively light, easily manoeuvred and can be operated in areas with restricted space and access.
This disc type chipper is of solid construction which boasts a chipping capacity of 100 to 130mm diameter branches, depending on the type of wood. The C21PTO will process branch and brushy material and other vegetation material. It has a large inlet chute for feeding in bigger bundles of brushy and twiggy materials, vines and larger branches, therefore no pre-cutting is necessary. The machine has a very efficient self feeding action thanks to the design of the rotor and the blade set-up, resulting in a user friendly machine easy on the operator. The inertia generated by the large rotor disc creates enough momentum to keep cutting as well as giving the machine enough draught to discharge the mulch up to 10 metres away (or close to the operating area by adjusting the deflector on the outlet chute). Having a discharge height of 1.8 metres makes the C21PTO ideal for discharging onto a trailer or truck, eliminating the need for any double handling of mulch.

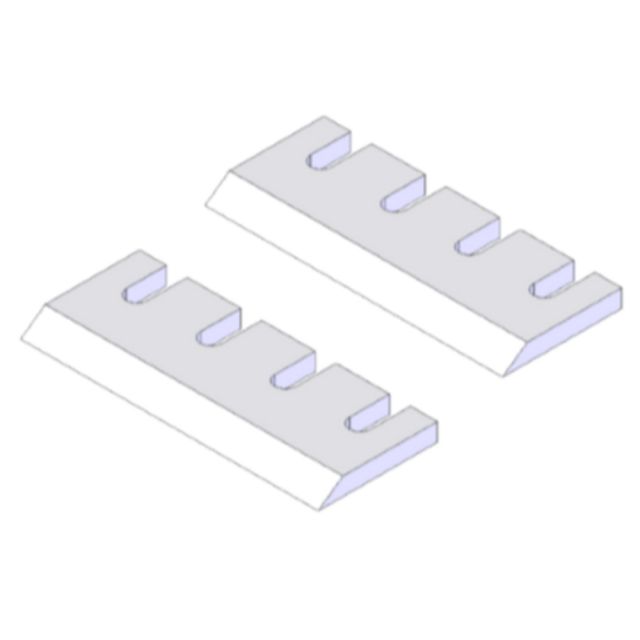

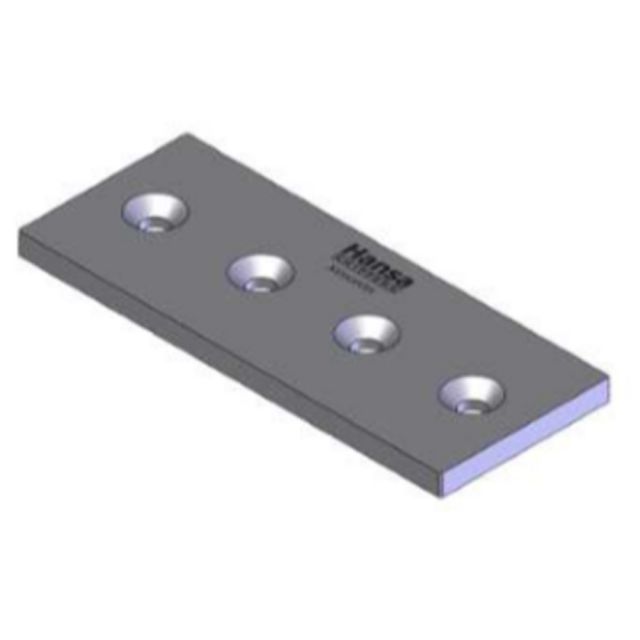

By pivoting open the outlet chute this allows full access to the inside of the machine. This makes changing blades for sharpening simple and requires little effort. As with all of the larger Hansa chippers, adjustable blades eliminate the need to adjust the anvil after sharpening, giving the ability to adjust each blade individually to the anvil for optimal clearance. The blades will last anywhere up to 30 hours use before requiring sharpening, depending on the type of material being mulched.
The Hansa C21PTO is suitable for us by contractors, farmers and local authorities, in orchards, parks and nature reserves.
Brand | Hansa |
---|---|
Cutting System | Disc |
Maximum Branch Diameter | 100 - 130mm |
Feed Rate | 0.4 - 0.8m/s |
Inlet Size at Rotor | 200 x 285mm |
Approx Chip Size | 20mm |
Discharge Chute | 1.8m high, rotating 270° with deflector |
Output | 10m distance |
Housing Material | 5mm steel plate |
Weight | 307.0kg |
Assembled Dimensions | L: 200cm x W: 90cm x H: 100cm |
Warranty | 3 years domestic based on product registration |
Promotional Image | no_selection |
ABOUT HANSA PRODUCTS.....
Hansa Products is an innovative family business based in Hamilton, New Zealand. Formed in 1980, Hansa prides itself on being a specialist in the design and manufacture of high quality wood and brush chippers. Hansa has been around long enough to say they know chippers, having built and sold over 25,000 and still counting. Hansa's focus is not to make the same chippers every day but to relentlessly sharpen each design.
Hansa employs the latest manufacturing technology such as CNC machining, folding and laser cutting to produce products with a high quality finish. All machines are Hansa's own design, developed over time from first hand experience in the field. As a small business, Hansa has to offer a superior product to remain competitive and stand apart from imported models in product quality, efficiency and solid build.
Hansa is always looking for new ways to create a better chipping experience. Its goal is to build products that help you to "hansform" your landscape, and work faster, better and safer than ever before.
The complete Hansa range is made in New Zealand and is backed by a one year warranty, whilst the engines are of top quality and warranted by their own manufacturers.
Hansa - Hansforming landscapes...one chipper at a time!
White Glove Delivery Service
Ready Steady GO!
Fully Assembled
Your chipper will be fully assembled for you.
Pre-Delivery Inspection
We will complete a PDI in compliance with the manufacturer's guidelines.
Tried and Tested
Your machine will be fuelled, oiled, run and workshop tested to ensure it is in perfect working order.
Personal Delivery
Wherever possible, your chipper will be delivered to your location on our own transport.
Full Working Handover
You will receive a full working handover by a trained member of The Green Reaper so you can start work straightaway.
For Greater Distances
The machine is cable tied to a pallet and shrink-wrapped into a cocoon. Our transport partner will then deliver the machine on a tail-lift lorry on an agreed working weekday. You simply unwrap the pallet, cut the cable ties and you're ready for work.
You may also be interested in
-
Hansa C13 9cm PTO Driven Wood ChipperSpecial Price £4,490.00 (inc VAT) Regular Price £4,800.00 (inc VAT)
-
Hansa C16C 11cm Petrol Garden ChipperSpecial Price £7,650.00 (inc VAT) Regular Price £8,000.00 (inc VAT)
-
GTM Professional GTS1300 12cm PTO Wood ChipperSpecial Price £3,989.00 (inc VAT) Regular Price £4,299.00 (inc VAT)
-

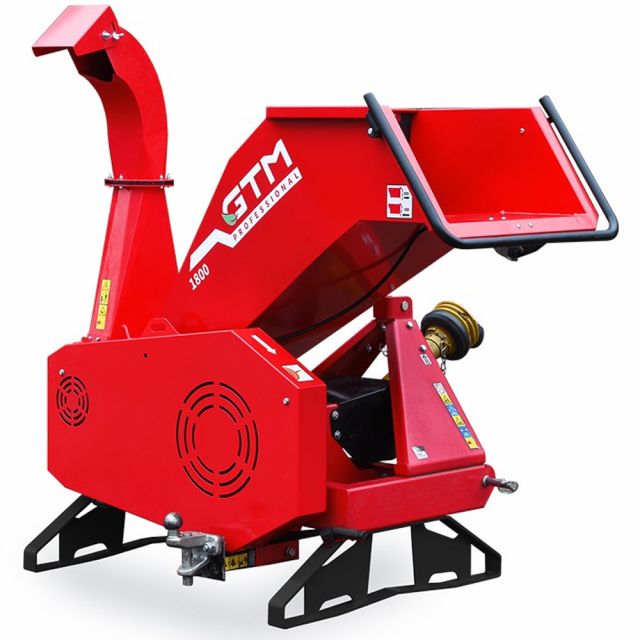

GTM Professional GTS1800P 14cm Wood Chipper with 3-Point Linkage Category 1 MountingSpecial Price £4,866.00 (inc VAT) Regular Price £4,999.00 (inc VAT)
-
