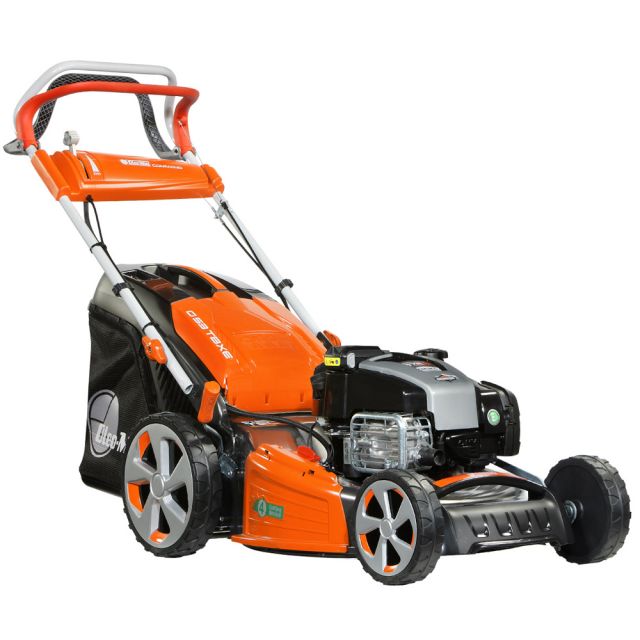

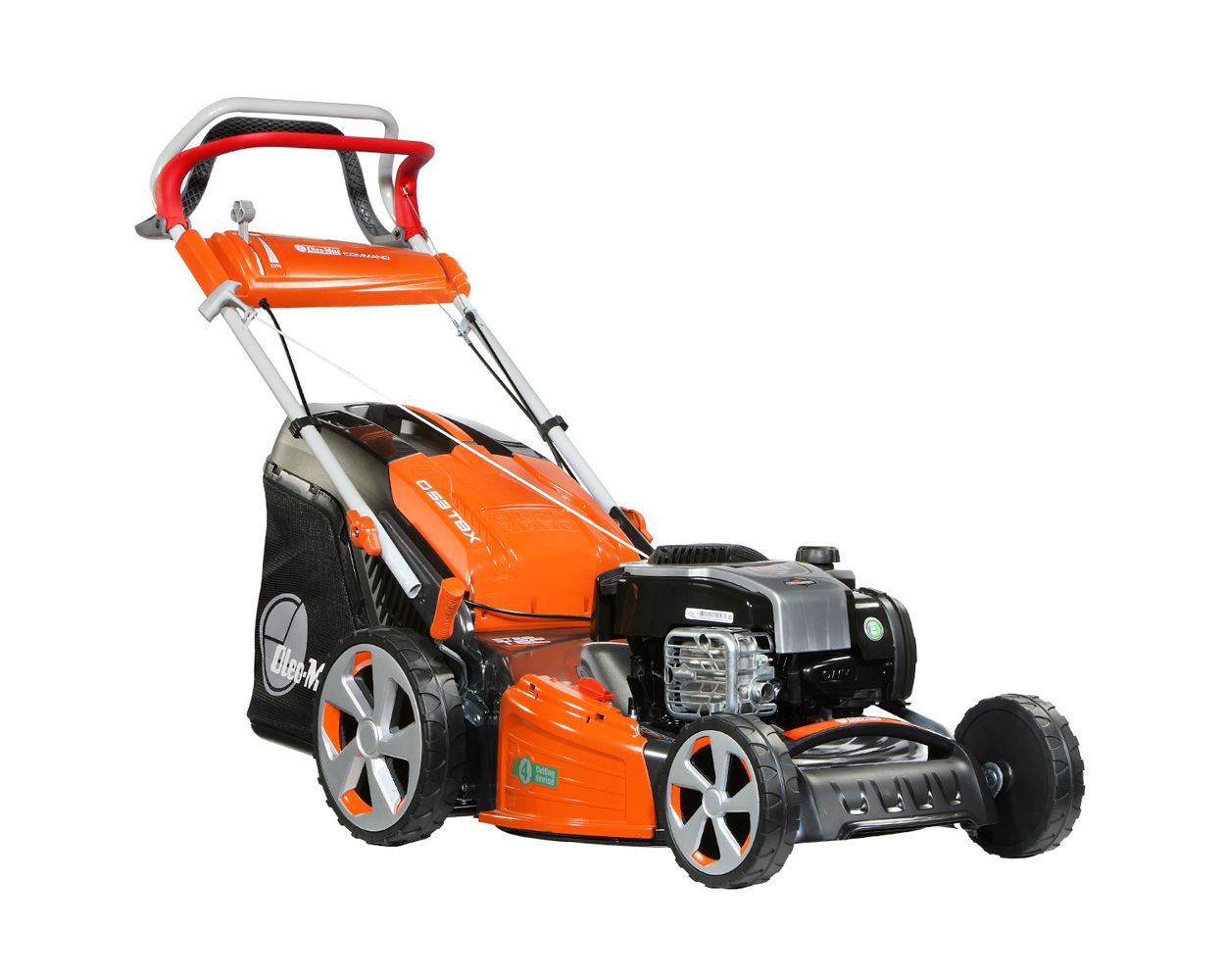

Oleo-Mac G 53 TBX Allroad Plus 4 4-in-1 Self-Propelled Petrol Lawn Mower

Description

The Oleo-Mac G 53 TBX Allroad Plus 4 self-propelled petrol lawn mower is powered by a reliable and easy starting 150cc Briggs & Stratton 625 EXi OHV Series™ engine with recoil start.

Featuring a 51cm cutting width, this mower is equipped with a robust steel deck which is streamlined and fitted with a mulching blade to ensure optimal cutting efficiency and perfect feed to the strong 70 litre plastic and fabric grass catcher which has bag-full indicator.

The Oleo-Mac G 53 TBX Allroad Plus 4 benefits from Oleo-Mac's "4-cutting device" cutting system which includes mulching, collection and side discharge as standard. Side discharge is easily achieved by simply opening the side tunnel and inserting the grass discharge deflector. The five position cutting height adjustment lever features reinforced, ergonomic construction.

Comfortable grip is assured at all times thanks to the new ergonomic plastic engine brake and clutch levers. The large rear wheels gives smoother movement on rough terrain and enhanced manoeuvrability of the Oleo-Mac G 53 TBX Allroad Plus 4 lawn mower.

The 625EXi Series™ engine combines powerful performance with new levels of easy operation. Easy to use, easy to maintain, easy to start – the EXi Series delivers a new engine experience for the most demanding job. The EXi Series needs no regular oil change - just an occasional top-up.

Specification

More Information
Brand	Oleo-Mac
Recommended Lawn Area	1400-1800m²
Engine	Briggs & Stratton
Engine Model	625 EXi
Engine Type	Petrol, 4-stroke, OHV
Displacement	150cc
Start Method	Recoil
Throttle Control	No
Propulsion	Self-propelled single speed
Ground Speed	3.6km/h
Cutter Deck	Steel
Width of Cut	46cm
Minimum Cutting Height	28mm
Maximum Cutting Height	75mm
Cutting Height Adjustment	Central
Grass Collector	Fabric grass bag with hard top
Collector Capacity	70L
Fill Level Indicator	Yes
Mulch Kit	Standard
Mulch Plug	Accessory - 66070096R
Side Deflector	Standard
Wheels - Front	200mm
Wheels - Rear	280mm
Weight	34.4kg
Warranty	3 years
Promotional Image	no_selection

Features

	Multi-function lawn mowers with collection or mulching system (in mulching operation the grass cuttings are finely shredded and distributed over the lawn surface where they decompose rapidly to become an efficient natural fertiliser.
	4 cutting device - system that includes mulching, collection and side discharge as standard, with deflector for rear discharge.
	The mulching blade supplied as standard and the streamlined deck ensure optimal cutting efficiency and perfect feed to the grass catcher.
	Mulching kit as standard. The grass clippings are broken down into fine particles and released back onto the turf to keep the lawn clean and uniform after each cut.
	Side discharge as standard. The clippings are discharged in neat lines to the right side of the machine.
	Strong and versatile 70 litre capacity plastic and fabric grass catcher, which can be assembled without tools, has full-bag indicator.
	Large wheels (280mm rear and 200mm front) with ball bearings and new tread profile for smoother movement, optimal traction on all types of terrain and enduring quality through time.
	New engine brake and traction levers in plastic, for a consistently safe and comfortable grip.
	Front bumper with integrated carry handle provides greater protection of the deck against accidental impact.
	ALLROAD PLUS 4 SERIES SELF-PROPELLED LAWN MOWERS WITH STEEL DECK The new Allroad Plus 4 line of steel deck lawn mowers from Efco come in 46 and 51cm cutting widths. They feature a 4 cutting device system which, in addition to grass collection, offers a mulching and side discharge function. Equipped with large diameter wheels, these lawn mowers combine the strength of Oleo-Mac's steel deck models with smoother running action, even on rough terrain.
	TOUGH-TECH Solid and dependable, Tough-tech machines are designed for heavy and frequent use in countryside environments: clearing overgrown and uncultivated areas, pruning and cutting firewood, crop irrigation and disinfestation tasks. Designed adopting solutions certain to ensure high work rates and maximum durability over time.
