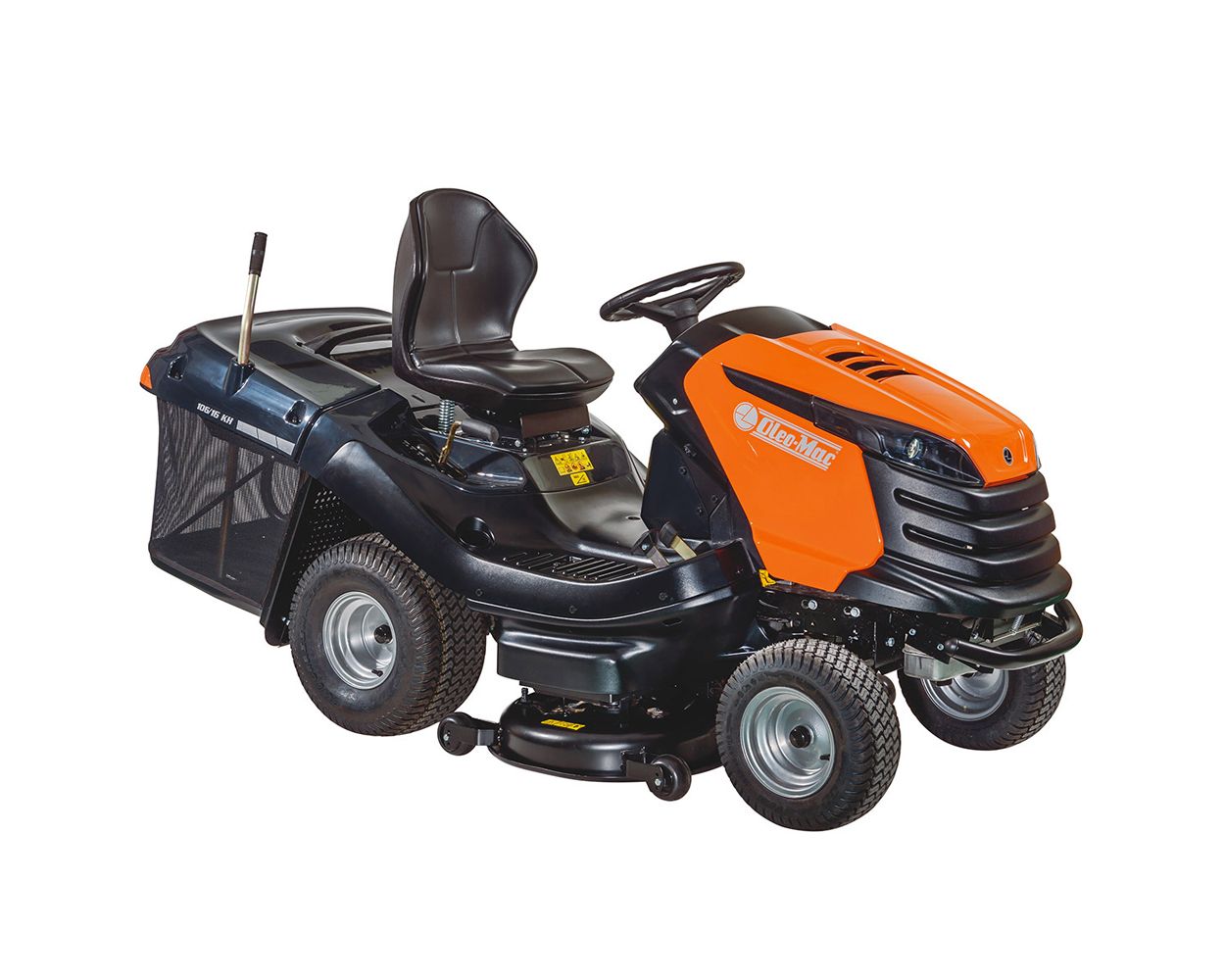

Oleo-Mac OM 106 S/16 KH Hydrostatic Rear Collect Lawn Tractor

The Oleo-Mac OM 106 S/16 KH is a high specification rear collect lawn tractor packed with premium features throughout.

Powered by a commercial-grade OHV engine from the machine's Italian manufacturer Emak, the K 1600 AVD series four-stroke engine produces 16hp. Made by transmission industry-leaders Tuff Torque, the infinitely variable hydrostatic drive ensures superb control and manoeuvrability, whilst the tight 40cm turning circle enhances the lawn tractor's agility around obstacles or awkward corners of the lawn.

A robustly-built machine from the ground up, the Oleo-Mac OM 106 S/16 KH features a cast-iron front-axle and reinforced steel chassis. Reinforced blade supports, bearings and screens on the 102cm (40") cutter deck ensure long term durability and the heavy-duty front bumper protects against accidental knocks.

Featuring contra-rotating twin blades for a neat finish, the cutter deck is fitted with four anti-scalp deck wheels to prevent unsightly gouging of the lawn surface when turning. Grass clippings are deposited into a super-sized 320 litre grass bag via an oversized discharge chute to guarantee superior collection performance. The blades are activated by convenient electronic push-button PTO engagement. The height of cut can be adjusted with a handbrake-style lever through seven positions between 30mm and 95mm.

Designed for lawns up to 7,000 square metres in size, full headlights mean you don't have to stop mowing when the light begins to fade. High levels of comfort are provided by the engine's anti-vibration system, low noise levels thanks to the fully enclosed bonnet, ergonomic steering wheel and adjustable high-back seat. A deck wash port makes it quick and easy to keep the cutting mechanism clean on the tractor's undercarriage.

Representing the synthesis of strength and reliability, Italian-built Oleo-Mac rear discharge lawn tractors are designed to meet the needs of the more demanding user seeking advanced mowing performance and collection capacity combined with unprecedented driving pleasure.

An optional rear deflector and mulch kit is available.

Specification

More Information
Brand	Oleo-Mac
Recommended Lawn Area	< 7,000m²
Engine	Emak
Engine Model	K 1600 AVD
Engine Type	4-stroke petrol OHV
Engine Cylinders	Single
Displacement	452cc
Horsepower	16hp
Battery Charger	Optional: 68130481
Start Method	Electric key
Transmission Type	Hydrostatic
Transmission	Foot-pedal operated
Drive Method	Rear wheel
Speeds	Forward: 0-9.0km/h Reverse: 0-4.5km/h
Turning Circle	40cm
Cutting System	Cut & collect
Width of Cut	102cm / 40"
Cutter Deck	Steel
Blades	2
Blade Engagement	Electric PTO
Minimum Cutting Height	30mm
Maximum Cutting Height	95mm
Cutting Height Adjustment	Single lever, 7 positions
Anti-Scalp Deck Wheels	4
Deck Wash Nozzle	Standard
Collector Capacity	320L
Fill Level Indicator	Yes, with acoustic signal
Collector Emptying	From seat
Mulch Kit	Optional accessory: 6812008A
Rear Deflector	Optional accessory: 68120003
Side Discharge	N/A
Front Bumper	Yes
Headlights	Yes
Seat	High-back, adjustable
Assembled Dimensions	L: 242cm x W: 106cm x H: 116cm
Weight	272.0kg
Warranty	3 years for domestic use
Promotional Image	no_selection

Manuals

OPERATOR'S MANUAL

Brand

ABOUT OLEO-MAC.....

Gardening, farming and forestry tools for home users and professionals. Oleo-Mac covers all shades of green.

With different models to meet each user’s needs but all sharing the same exceptional quality standards in terms of performance, reliability, comfort and safety. The accessories range is offered as an extension and completion of the product range. Ergonomics, quality and styling are essential ingredients of the development of Oleo-Mac’s products: primarily designed to meet the needs of professionals whilst also taking care of the requirements of less expert users who insist on the very best.

A truly comprehensive range of superb quality products at highly competitive prices – that’s the Oleo-Mac formula.

The Italian Oleo-Mac brand is distributed by The Emak Group which is active in the development, production and worldwide sale of an extensive range of products for three business segments:

Outdoor Power Equipment

Products for gardening, forestry and agriculture, including brushcutters, law mowers, garden tractors, chainsaws, rotary tillers and rotary cultivators.

Pumps and High Pressure Water Jetting

Products for agriculture, including centrifugal and diaphragm pumps for crop spraying and weed control;
Products for industry, including pumps for industrial applications and high and very-high pressure systems;
Products for cleaning, namely professional and semi-professional high-pressure washers, floor scrubber-dryers and vacuum sweepers.

Components and Accessories

Products such as strimmer line and line heads for brushcutters, accessories for chainsaws, guns, valves and nozzles for high-pressure washers and for agricultural applications, plus precision farming products (sensors and computers).


A range of machines aimed at the home user, for tidying and cleaning the garden, cutting hedges and small trunks or stems, and DIY jobs in general. Characterized by lightweight and compact construction, to make the task of the operator that much simpler. Easy to start, easy to use, easy to maintain: these are the ideal tools for getting things done quickly and neatly around the home.	Solid and dependable, these are machines designed for heavy and frequent use in countryside environments: clearing overgrown and uncultivated areas, pruning and cutting firewood, crop irrigation and disinfestation tasks. Designed adopting solutions certain to ensure high work rates and maximum durability over time.	No-nonsense everyday tools for the busy professional, these are machines that stand out for the toughness of their components, their high performance and their matchless long-term durability. Specific materials used in construction guarantee unwavering quality even when tackling the most severe and lengthy of tasks, like forestry work and the clearance of uncultivated areas or scrub and undergrowth.
