Oleo-Mac OM 109 L/16 K Comfort 108cm Hydrostatic Side Discharge Lawn Tractor

Description

The Oleo-Mac OM 109 L/16 K is a domestic-use lawn tractor combining style and power with premium features. A 108cm twin-bladed cutting deck, mulching capability and high performance Emak engine unite to create a superby lawn tractor at a cute price.

Featuring convenient electric key start, the Oleo-Mac OM 109 L/16 K is powered by the manufacturer's own 452cc smooth-running, reliable and fuel-efficient four-stroke OHV engine. The hydraulic Tuff Torq transmission, with a single drive pedal, is the result of a painstaking ergonomic process, making it easy to control the speeed and change direction of the lawn tractor, resulting in a safe, intuitive and enjoyable driving experience.

The tight 45cm turning radius enables the lawn tractor to easily manoeuvre in confined areas and mow gardens with a variety of features and obstacles.

The lawn tractor is equipped with a durable, generous 108cm (42") cutter deck with twin blades and two anti-scalp wheels. Perfect for the sort of long grass found in meadows and outlying informal areas, the side discharge chute lays out clippings in uniform, clump-free lines to its right. By inserting the mulch pluge supplied as standard, the grass clippings keep circulating under the deck for longer, reducing them to a fine particulate so they can be returned directly to the surface where can constitute a valuable nutrient for the lawn.

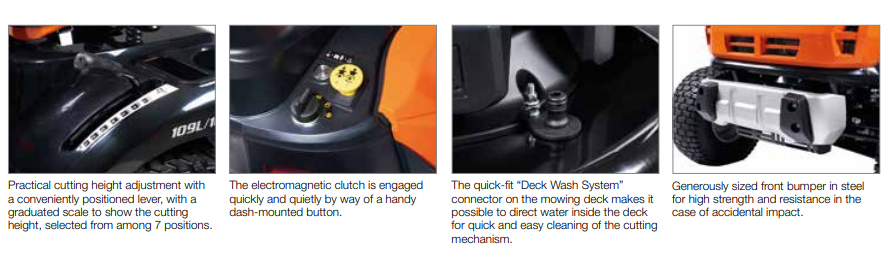

Blade engagement is activated by simply pushing the electromagnetic clutch control button. This system eliminates drive belt slippage, for persistently precise blade activation with no kickbacks. The cutting height adjustment is very practical using the conveniently-positioned lever with a graduated scale to give an immediate indication of the selected cutting height through seven positions between 30mm and 90mm.

Rugged by design, a generously-sized steel bumper provides high strength and resistance in the event of accidental impact. LED headlights with daytime function ensure high visibility even in low light conditions. User comfort is ensured thanks to the ergonomic, shock-absorbing and adjustable seat, whilst a cup holder is positioned at the operator's side.

When you have completed the mowing, the quick-fit deck wash system connector on the mowing deck makes it possible to direct water inside the deck for quick and easy cleaning of the cutting mechanism. The added bonus of a tow hitch turns the OM 109 L/16 K lawn tractor into an all-year-round workhorse, with a wide variety of tow-behind attachments available.

Specification

More Information
Brand	Oleo-Mac
Model	58059203
Recommended Lawn Area	< 8000m²
Engine	Emak
Engine Model	K 1600 AVD
Engine Type	4-stroke, OHV
Engine Cylinders	Single
Displacement	452cc
Horsepower	12.5hp
Fuel Tank Capacity	7.5L
Battery Voltage	12V
Battery Capacity	18Ah
Battery Charger	Included
Start Method	Electric key
Transmission Type	Hydrostatic
Transmission	Tuff Torq K46DR, foot pedal control
Speeds	Forward: 0-8.8km/h / Reverse: 0-4.5km/h
Brake Type	On transmission
Parking Brake	Lever
Turning Circle	45cm
Cutting System	Twin-bladed cutting deck
Width of Cut	108cm / 42"
Blades	2
Blade Engagement	Electromagnetic clutch (button)
Minimum Cutting Height	30mm
Maximum Cutting Height	90mm
Cutting Height Adjustment	7 positions
Anti-Scalp Deck Wheels	2
Deck Wash Nozzle	Yes, with quick-fit coupling
Grass Collector	N/A
Side Deflector	Standard
Mulch Plug	Included (no tools required)
Seat	Ergonomic, shock-absorbing, adjustable
Steering Wheel	Ergonomic
Headlights	2 x LED with daylight function
Wheels - Front	15 × 6.00-6
Wheels - Rear	18 × 8.50-8
Tow Hitch	Standard
Sound and Noise Data	Sound pressure level: 84.5dB(A) / Sound power level: 96.6dB(A)
Vibration Level Data	≤ 2.7m/s²
Assembled Dimensions	L: 172cm x W: 139cm x H: 110cm
Weight	173.5kg
Warranty	Machine: 5 years for domestic use - 2 years from date of purchase + a further 3 years limited warranty subect to registration, reasonable homeowner use and annual servicing by an approved Cobra dealer Engine: 5 years for domestic use (T&Cs apply)
