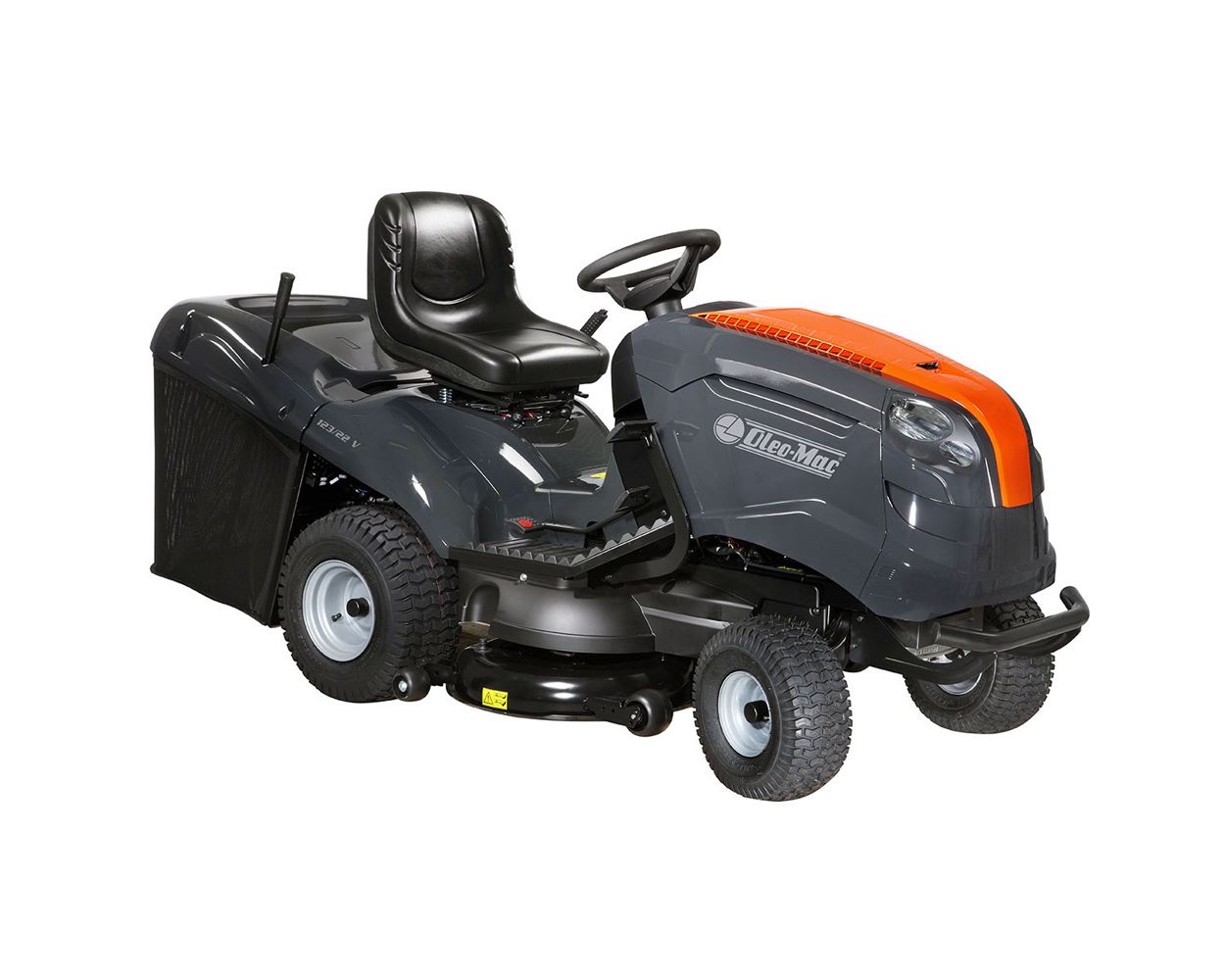

Oleo-Mac OM 123/21 KV Hydrostatic Rear Collect Lawn Tractor

Description

The Oleo-Mac OM 123/21 KV rear collect lawn tractor is equipped with a generous 122cm (48") steel cutter deck and the manufacturer's own high-powered, smooth-running V-twin engine.

The Oleo-Mac OM 123/21 KV has a seven stage cutting height adjustment between 30mm to 90mm, electromagnetic clutch for smooth blade engagement, ergonomically-positioned controls and 90cm turning radius.

Easily emptied from the driver's seat, the lawn tractor features a large 320 litre-capacity collection bag which has the benefit of an accoustic bag-full alarm. For added versatility and to save you the job of stopping to empty the grass bag, a mulch kit is included so you can finely cut the grass clippings and redistribute them back onto the lawn surface where they will break down into valuable nutrients.

Under the bonnet is a beefy 708cc Emak K 2400 AVD V-twin engine which employs overhead valve technology for reduced noise and lower emissions, with electric key start for trouble-free starting every time. Smooth, hydrostatic transmission is foot-pedal controlled and gearless, giving you intuitive control and manoeuvrability. For an even more relaxed drive, simply activate the cruise control button to maintain the forward speed at a desired level without having to operate the pedal.

To keep you in the know, the LCD display assures quick and intuitive consultation of the main garden tractor information, including working hours, battery voltage, and fuel level.

The feature-packed Oleo-Mac OM 123/21 V lawn tractor also boasts a comfortable, high back adjustable seat, headlights to enable you to work in poor light conditions, a steel front bumper for high strength and resistance in the case of accidental impact, wide-profile pneumatic tyres which provide maximum traction whilst being kind to your lawn, plus a deck wash system for quick and easy cleaning of the cutting mechanism.

A towing kit, fitted as standard, makes the lawn tractor even more versatile around the garden all year round, allowing you to tow an attachment such as a trailer, lawn roller or aerator.

An optional rear deflector is available.

Representing the synthesis of strength and reliability, Italian-built Oleo-Mac rear discharge lawn tractors are designed to meet the needs of the more demanding user seeking advanced mowing performance and collection capacity combined with unprecedented driving pleasure.

NB: Images for illustration purposes only.

Specification

More Information
Brand	Oleo-Mac
Recommended Lawn Area	< 9,000m²
Engine	Emak
Engine Model	K 2400 AVD V-twin
Engine Type	4-stroke petrol OHV
Engine Cylinders	V-twin
Displacement	708cc
Battery Charger	Included as standard: 68130481
Start Method	Electric key
Transmission Type	Hydrostatic
Transmission	Foot-pedal operated
Drive Method	Rear wheel
Speeds	Forward: 0-8.8km/h Reverse: 0-4.5km/h
Cruise Control	Yes
Turning Circle	90cm
Cutting System	Collection & mulching
Width of Cut	122cm / 48"
Cutter Deck	Steel
Blades	2
Blade Engagement	Electric PTO
Minimum Cutting Height	30mm
Maximum Cutting Height	90mm
Cutting Height Adjustment	Single lever, 7 positions
Anti-Scalp Deck Wheels	4
Deck Wash Nozzle	Standard
Collector Capacity	320L
Fill Level Indicator	Yes, with acoustic signal
Collector Emptying	From seat
Mulch Kit	Included as standard: 68050021
Rear Deflector	Optional accessory: 68050023
Side Discharge	N/A
Front Bumper	Yes
Headlights	Yes
Seat	High-back, adjustable
Tow Hitch	Included as standard: 68050025
Assembled Dimensions	L: 242cm x W: 105cm x H: 107cm
Weight	231.0kg
Warranty	3 years for domestic use
Promotional Image	no_selection
