Orec FL500BC 50cm Field & Brush Mower

Description

Designed and manufacturered in Japan, the Orec FL500BC is a universal, easy-to-use and comfortable rotary field and brush mower for commercial use. The machine, with its working width of 50cm (20"), is suitable for very precise mowing of tall grass, including dry, laid grass, clearing meadows, mowing grass in orchards, vineyards, forest nurseries, on roadside verges or in ditches.

The FL500BC is a stable and solid machine built for intensive use for many years. The durable structure of the tubular steel frame ensures extended life of the machine but, above all, it prevents the mower from turning in extreme conditions, which affects the comfort of use and work efficiency.

The Orec FL500BC is equipped with an aluminum gearbox with three forward gears and one reverse gear enabling efficient manoeuvring of the mower. The differential lock, combined with rear wheels with a large tread area, ensure safe grip of the machine to the ground, especially on uneven and steep terrain.

Powered by a 163cc Honda GXV160 four-stroke OHV engine, the mower's cutting height can be easily and infinitely adjusted between 20mm and 80mm via a screw lever.

The comfort of work and accessible mowing area is enhanced by the ability to adjust the handlebar to a comfortable working position in given conditions by means of height and side adjustment.

Specification

More Information
Brand	Orec
Engine	Honda
Engine Model	GXV160
Engine Type	Petrol, 4-stroke, OHV
Displacement	163cc
Engine Cylinders	Single
Oil Tank Capacity	1.4L
Start Method	Recoil
Propulsion	Self-propelled variable speed
Gears	3 forward + 1 reverse
Speeds	Forward - 1st: 1.5km/h / 2nd: 2.4km/h / 3rd: 3.8km/h Reverse: 1.8km/h
Differential Locking	Yes
Cutter Deck	Pressed steel
Blades	Single rotary
Width of Cut	50cm / 20"
Minimum Cutting Height	20mm
Maximum Cutting Height	80mm
Height Adjustment	Infinitely variable via screw lever
Handle Type	Adjustable, vertically and 180° horizontally
Wheels	Front: 8" on bearings / Rear: 3.50 - 50, tractor
Assembled Dimensions	L: 155cm x W: 58cm x H: 96.5cm
Weight	68.0kg
Warranty	Manufacturer's - 2 years domestic / 1 year professional (registered within 30 days of sale)
Promotional Image	no_selection

Features

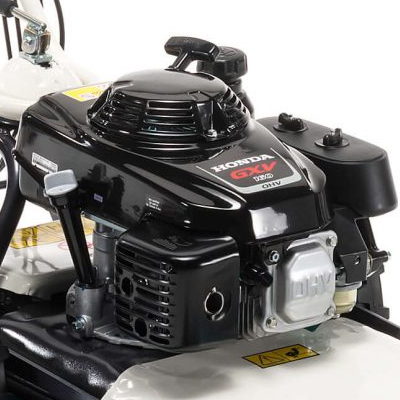

Honda GX340 OHV engine The Orec FL500BC field and brush mower is equipped with a professional 337cc Honda GX340 OHV engine with the following top features:- The OHV configuration guarantees very efficient combustion while respecting all the strictest regulations existing in Europe A high power-displacement ratio supporting a demanding workload Easy and light starting, thanks to an efficient decompression system and ergonomic handle High quality materials, designed to last the life of the mower Very low fuel consumption Reduced vibration and noise

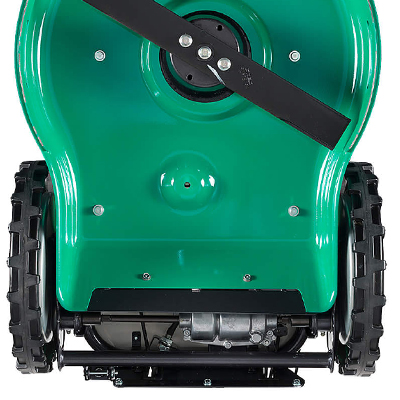

	Orec transmission - maximum efficiency at reduced costs The transmission is a fundamental part of a motor vehicle and makes it more or less professional. For this reason, to give maximum quality, Orec designs and builds its own transmissions in-house. The Orec FL500BC is equipped with a mechanical transmission with three forward speeds and one reverse speed, and is also equipped with differential lock. The particular reliability of these transmissions, designed for heavy-duty work, avoids breakages or expensive maintenance interventions and allows them to last a long time.

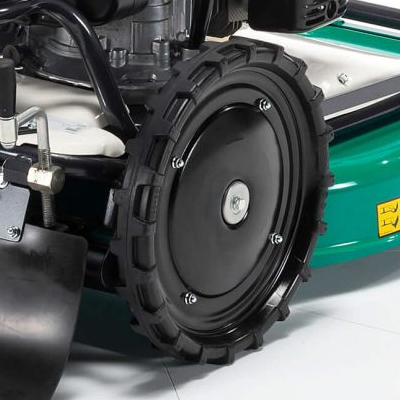

Oversized wheels The large rear steel wheels ensure grip on all types of terrain and, if you need more traction, simply operate the rear wheel lock control to have grip even on slopes.

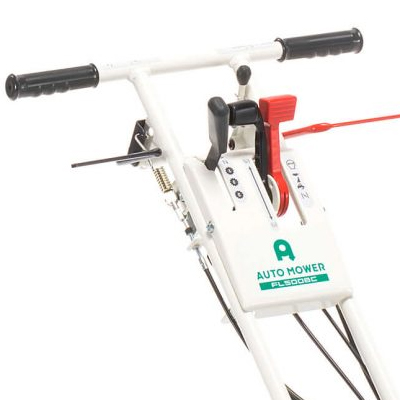

	Control panel The FL500BC has all the necessary controls located on the handlebars. It is equipped with a mechanical transmission with three forward gears and one reverse gear with differential lock to ensure optimal progress even on irregular terrain and slopes.

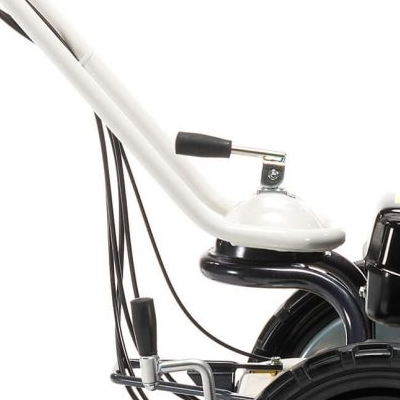

Handlebar adjustment The 180° adjustable handlebar allows you to easily cut close to edges, hedges, walls or fences.

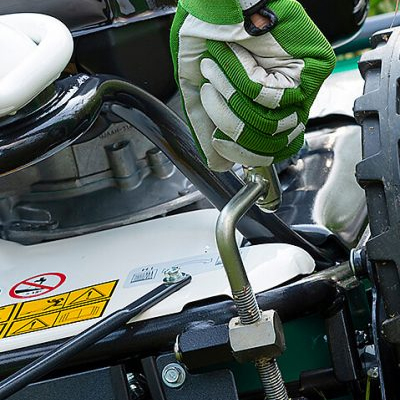

	Cutting height adjustment Height adjustment is easy and millimetric thanks the screw lever.

Manuals

INSTRUCTION MANUAL

Brand

ABOUT OREC .....

The ideal solution for the perfect elimination of overgrown grass and weeds on flat, sloping, uncultivated and neglected fields.

Orec was established in 1948 as a family owned and operated provider of outdoor power equipment serving small-plot farmers and large property owners for the local region of Fukuoka, Japan. With the strong belief from its humble beginnings that product innovation requires strong community collaboration and a manufacturer’s commitment to quality and durability, Orec now serves a variety of outdoor professionals ranging from landscapers and construction contractors to farmers and rental equipment companies.

Today, Orec is a global brand that provides outdoor power solutions throughout Europe, Asia, Australia and North America. The company are still owned and led by the same family that started this journey more than seven decades ago as the third generation of this family is being prepared to successfully lead the brand to new heights and more innovations on the way towards its first 100 years of business and beyond.

Orec has built its reputation for superior performance by listening to its customers’ changing needs and then building quality products to help them meet those needs. Orec equipment is designed and manufactured in Japan, Orec build their own transmissions which are famous for their durability and quality you can rely on.
