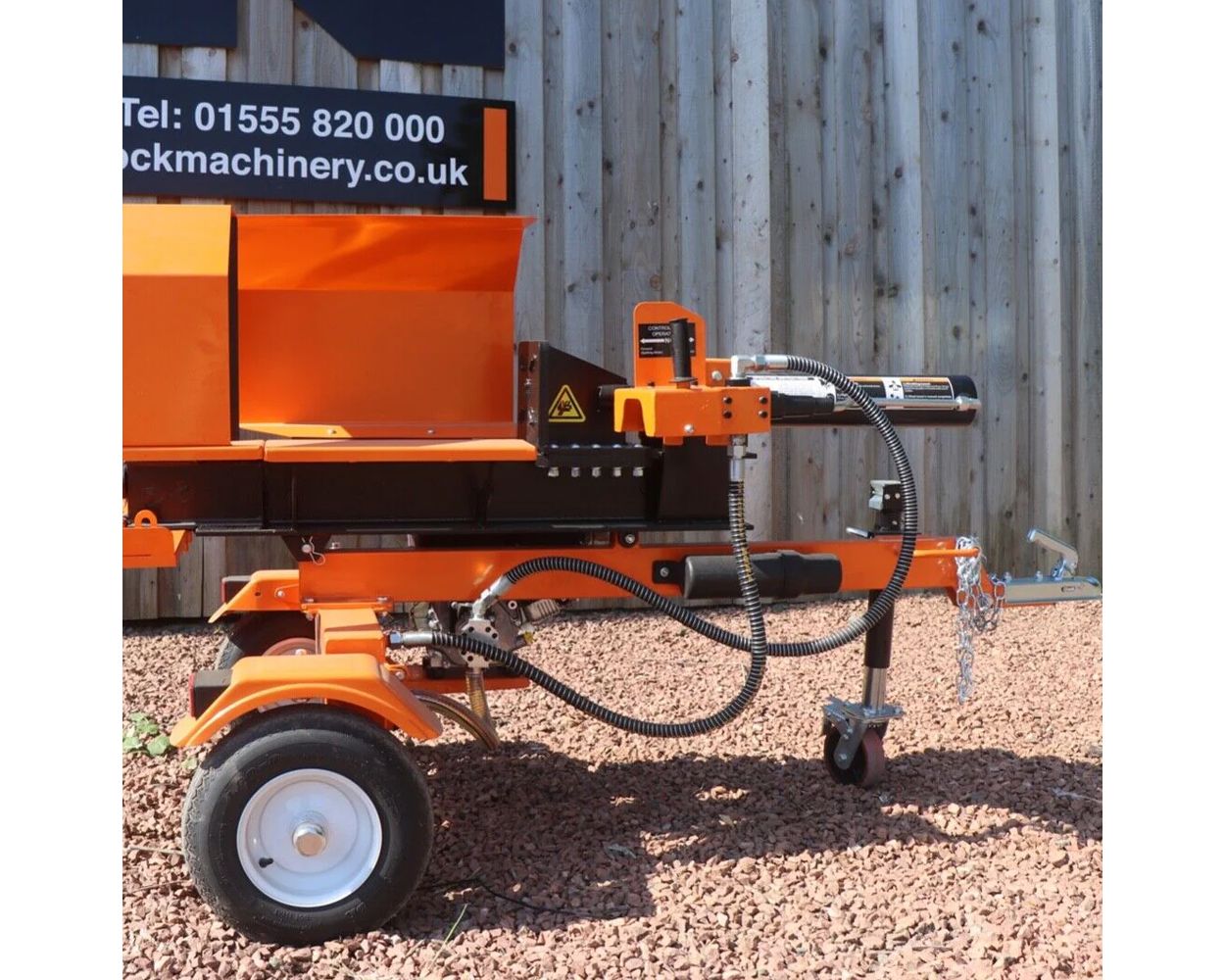

The Venom HZ-Series is a variant of the 22 ton log splitter family which features a different splitting system whereby the splitting head is mounted to the rear of the machine rather than the ram. The ram will now have a reinforced pushing plate to simply push the log into the splitting head allowing the user to keep all debris and split logs in the splitting area.
This machine can only be used horizontally, has a 13 second cycle time and can develop 22 ton of splitting force.
The safety-orientated, two-handled ram operation conforms fully with E.U health and safety regulations, features an auto return ram system that allows for the ram to return automatically or be stopped anywhere on the cycle to decrease splitting time. The log splitter has a 7" hardened steel splitting head for effective splitting.
Powered by the new 6.5hp Briggs & Stratton Vanguard engine with the new cyclonic air cleaner and travel guard, this reliable and high performance engine comes with Briggs’ three year warranty.
Fitted with a 50mm ball hitch, Rock has added a jockey wheel to the front drawbar to make hitching the splitter to your vehicle easier. This model is NOT road towable. The rear table can also be folded up when towing the splitter around the yard or farm.
Brand | Rock Machinery |
---|---|
Log Splitter Type | Horizontal |
Engine | Briggs & Stratton |
Engine Model | Vanguard |
Engine Type | 4-stroke |
Displacement | 203cc |
Horsepower | 6.5hp |
Start Method | Recoil |
Splitting Force | 22 ton |
Log Length Capacity | 540mm |
Splitting Wedge | 2-way |
Cycle Time | 13 secs |
Pump | 11gpm two-stage |
Transport Wheels | 16" |
Tow Hitch | 50mm ball hitch |
Assembled Dimensions | Approx 248cm x 121cm x 122cm |
Weight | 220.0kg |
Warranty | Machine: 2 year manufacturer's / Briggs & Stratton engine: 3 years |
Promotional Image | /v/e/venom-log-splitters_4_1.jpg |
ABOUT ROCK MACHINERY.....
Rock Machinery, the home of Venom logo splitters, prides itself on being a specialist in a whole range of heavy-duty garden machinery including log splitters, chippers and stump grinders for domestic to professional use.
All Rock Machinery products are quality checked and arrive fully built and ready to work.
Best Seller – 22-ton Venom Log Splitter
Since its release in 2011, the 22 ton Venom has become the exemplar of what a log splitter should be. It is now established as one of the best splitters available in the UK and Europe.
Rock Machinery has taken customer feedback onboard and improved the splitter year on year – adding a working table, road towing axle, and making overall design improvements. Today, the 22 ton Venom looks quite different to how it did in 2011 but it still retains its robust workhorse features that make it a hit with professionals and domestic users alike. With features that include a Briggs and Stratton Vanguard engine, vertical and horizontal splitting positions, and ergonomic controls, this machine really has no equal.
IMPORTANT DELIVERY INFORMATION FOR ROCK MACHINERY ORDERS
FREE DELIVERY TO ENGLAND AND WALES!
Delivery to England and Wales is FREE of charge. Scottish postcodes may incur an additional delivery charge which will be calculated in your shopping basket.
ANTICIPATED DELIVERY TIME
Your order will be directly fulfilled by Rock Machinery who aims to build, test and despatch all machinery orders within three working days. Once the machine has reached your local delivery depot, the local delivery company will call and "book in" the delivery and pick a suitable day with you. Please allow approximately 7 to 10 working days for delivery.
READY TO WORK
Rock Machinery builds and quality checks a large majority of the machines offered. Every machine is quality checked, filled with oil and hydraulic fluid (where necessary). Their expert, qualified agricultural equipment engineers ensure your machine is ready for you to use as soon as it is delivered.
PALLETISED DELIVERY
Most machines are delivered on pallets. The delivery company will unload your machine from their vehicle but will not be involved in handling the machine or removing it from the pallet. Machines are shipped by a specialist haulage company.
As standard, the delivery vehicle will be a large 17.5-ton lorry. However, a smaller 7.5-ton vehicle can be arranged by exception if access is difficult. Please consult the diagram below and contact us as soon as your order is placed if you envisage any access or unloading restrictions.
SMALLER ITEMS
Items such as sprayers, ATV baskets, smaller security boxes and spares will be delivered by courier.
You may also be interested in
-
Hyundai HYLS25000T 25 Tonne Horizontal & Vertical Petrol Log Splitter£2,489.99 (inc VAT)
-
Rock 22 Ton Venom Vertical & Horizontal Towable Petrol Log Splitter with Table£2,329.99 (inc VAT)
-
Rock 35 Ton Venom Pro-Elite Vertical & Horizontal Towable Petrol Log Splitter£2,829.99 (inc VAT)
-
Rock 35 Ton Venom SE-Series Vertical Towable Petrol Log SplitterSpecial Price £2,379.99 (inc VAT) Regular Price £2,629.99 (inc VAT)
-

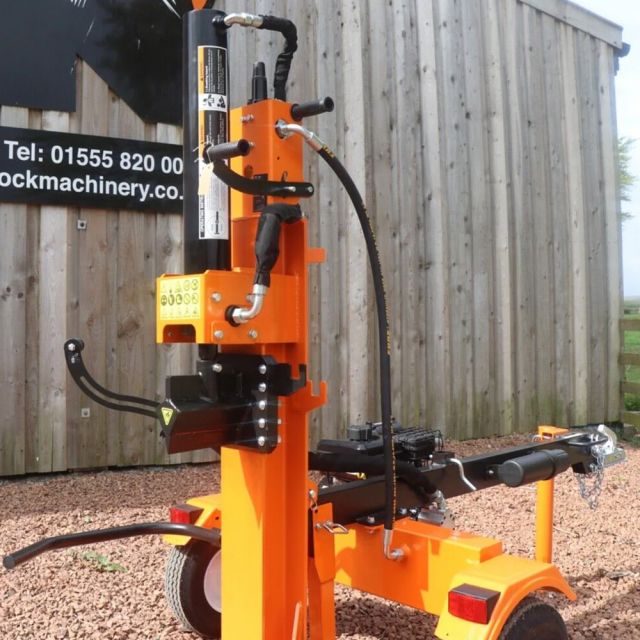

Rock 22 Ton Venom SE-Series Vertical Petrol Log SplitterSpecial Price £1,929.99 (inc VAT) Regular Price £2,129.99 (inc VAT)
-
