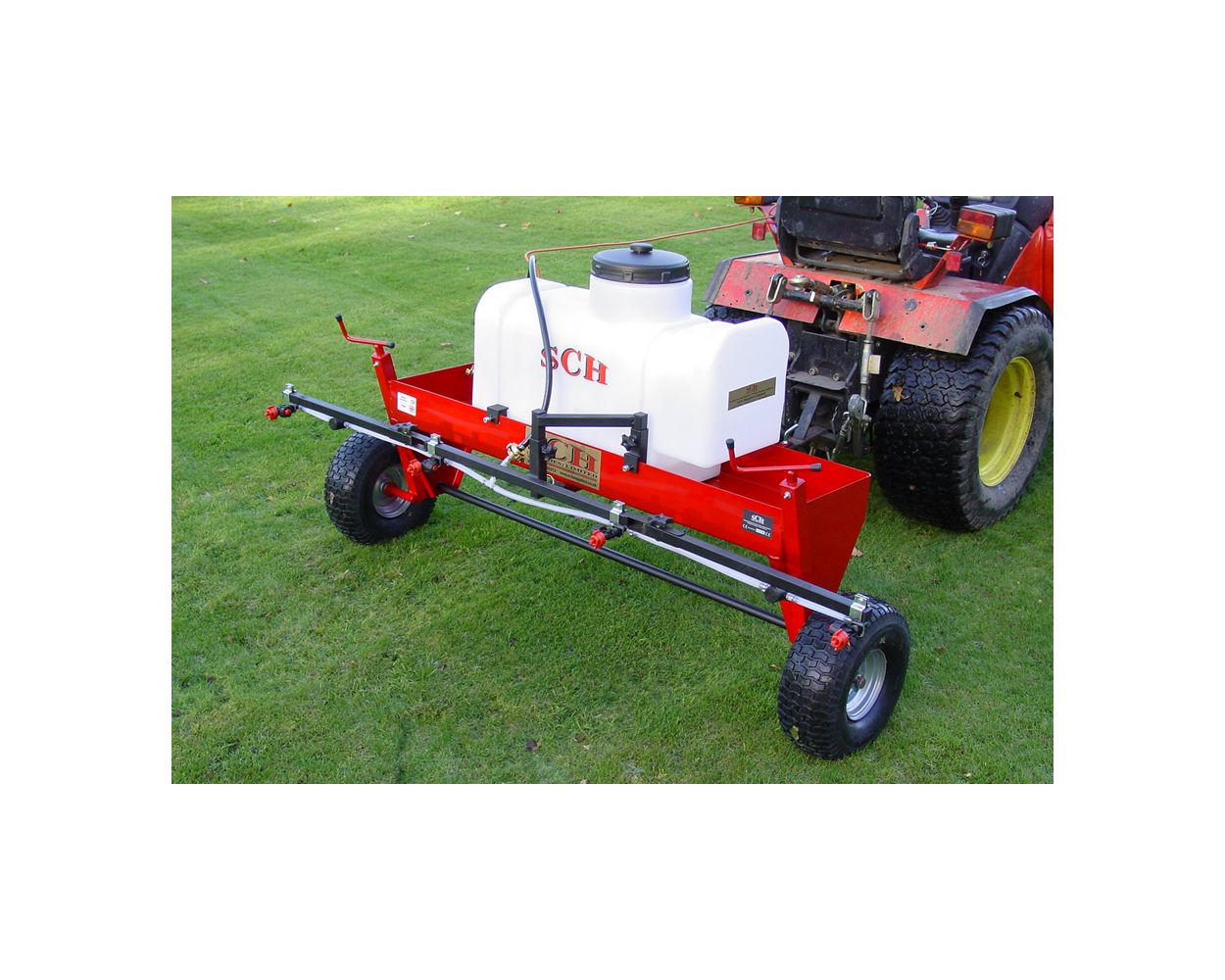

The SCH power sprayer attachment slots into the weight tray of the 48" carrier frame. A 12-volt diaphragm pump, powered from the towing tractor, pumps the herbicide fertilisers etc, to the spray boom.
The four nozzles have a maximum spray width of 75". The two outer nozzles can be turned off, leaving the two inner nozzles producing a 36" spray width. A brass hand trigger lance can be detached from the sprayer for spot spraying in hard-to-reach areas.
The tank has a large lid for ease of cleaning and to prevent accidental spills when filling the tank, which can burn the grass.
The boom has a 'break-back' function which allows the boom to fold in on itself when it comes into accidental contact with a tree or fence, preventing damage.
IMPORTANT: Picture for illustration purposes only. This attachment must be used in conjunction with either the SCH 48" Heavy Duty Carrier Frame Towed (Ref: F48T) or Mounted (Ref: F48M) which can be purchased separately (see related items below).
Brand | SCH (Supplies) |
---|---|
Spray Width | 1900mm (75") / 915mm (36" |
Tank Capacity | 70 litres / 15 gallons |
Pump | 12V diaphragm |
Power Source | Tractor's battery (a separate battery can be supplie as an optional extra) |
Pump Delivery | 7l/min (max) |
Warranty | 1 year manufacturer's |
Promotional Image | /b/r/british-built_102.jpg |
ABOUT SCH SUPPLIES.....
They say that necessity is the mother of invention – and this is certainly true of the birth of SCH (Supplies) Ltd.
Back in 1986, the late founder and former managing director Andrew Rodwell became frustrated at the lack of suitable lawn care attachments to fit to his garden tractor. Not being one to back away from a challenge, Andrew set about designing and manufacturing the attachments he wanted and started selling them to friends who had encountered the same problem.
SCH Supplies Limited now has over thirty years' experience in the manufacture of quality grounds care machinery and is proud of the fact that 90 per cent of its products are British built. SCH products are robustly made and, in most cases, very simple to use. The company can supply almost everything you could possibly want to tow behind your estate or garden tractor, including a range of lawn care maintenance machines, waterers, sprayers and trailers, as well as specialist equestrian and sports surface machines.
Based in Ipswich, Suffolk, the company has grown to 20 employees who design, manufacture and delivery a vast range of products, not to mention the 'one offs'. If required, SCH will work with a customer to build a bespoke garden machine to agreed specifications.
Please Note: Due to the nature of this specialist equipment, SCH Supplies builds its products to order and prefers to deliver using its own transport, which is why we quote an extended lead time.
British Products for Outdoor People
IMPORTANT DELIVERY INFORMATION FOR SCH ORDERS
FREE DELIVERY TO ENGLAND AND WALES!
Delivery to England and Wales is FREE of charge. Scottish postcodes incur an additional delivery charge which will be calculated in your shopping basket.
BUILT TO ORDER
SCH (Supplies) manufactures and builds all its products to order and they are delivered "ready for use".
Personal Delivery
Due to the nature of this specialist equipment and wherever possible, your order will be delivered on SCH's own transport with prior notice.
ANTICIPATED DELIVERY TIME
England & Wales
Estimated delivery time is currently approximately three to four weeks from placing your order.
Scotland
SCH makes a delivery run to Scotland every six weeks, so please allow longer for your order to arrive. Extra carriage charges may apply depending on your postcode.
For Greater Distances
Occasionally the product is palletised and despatched by a third party carrier.
