SCH GWTS10 500kg Two-Wheel Timber Tipping Trailer

A good, strongly constructed timber bodied trailer for use behind garden tractors and ATVs. The sides are hinged and can be completely removed along with the tailgate if required to give a platform body with a fixed head board.

The GWTS10 features a welded steel frame clad with highly durable phenol-coated ply. This coating resists water and helps to prevent rot. Galvanised steel rails run along the top of the wooden sides and tailboard to protect the edges of the ply. The axle is built from a solid steel 1" thick shaft, as opposed to inferior hollow tubing used by many alternative trailer manufacturers.

The two sides and back can fold down for ease of loading and unloading. Galvanised hinges are attached to the sides and tailboard and, when the securing mechanism is undone, these hinges can easily slide off.

A simple to use sprung-pin mechanism releases the trailer and allows it to tip. The pivot point of the trailer is roughly underneath the centre, which allows for very easy tipping and emptying. The tailgate is removable for the efficient discharge of material when tipped. The galvanised tailgate securing mechanism can be quickly released and relatched.

The trailer is fitted with wide profile pneumatic tyre wheels complete with bearings. These have a significant surface contact area, making the trailer extremely stable under load. The wide wheels also minimise track marks on the grass.

Optional Extras (see related items below):-

• 50mm ball hitch

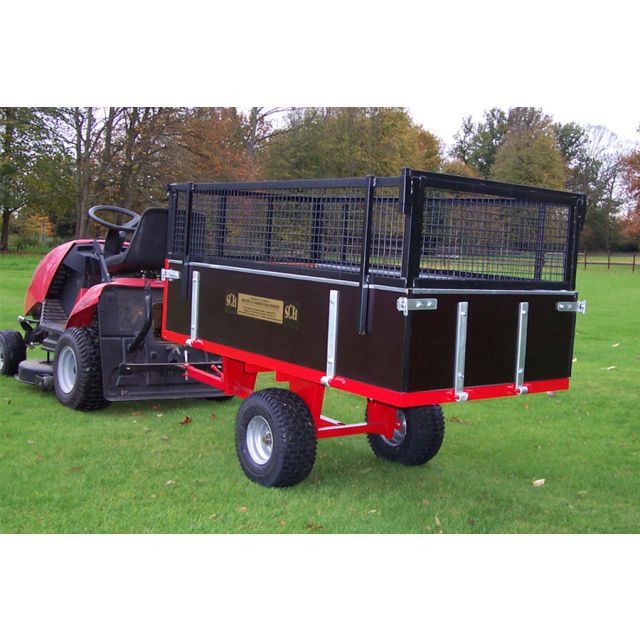

• Four easily removable 300mm (12") high extension sides (shown in photograph) may be fitted (ref GWTX10)

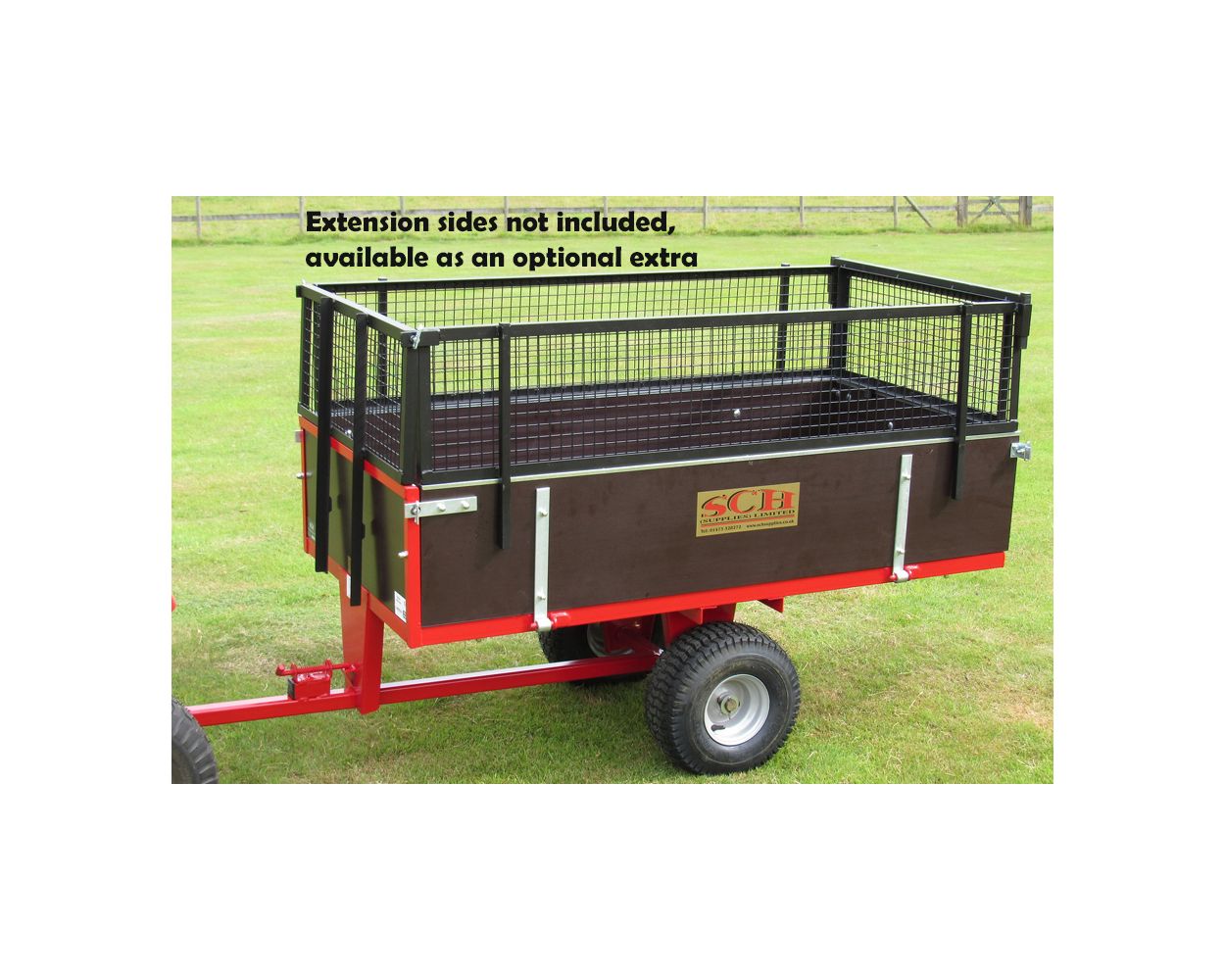

Please note: Photographs for illustration purposes only - does not include optional extension sides which may be purchased and fitted separately for additional carrying capacity.
