SCH GWTS15 760kg Two-Wheel Timber Tipping Trailer

Special Price £1,127.00 (inc VAT) Regular Price £1,251.95 (inc VAT)

You Save 10% (£124.95)

In stock

Product Code

GWTS15

Currently, people are looking at this product

Hitch Options

Clevis Hitch Standard

50mm Ball Hitch + £39.99 (inc VAT)

Delivery Time: BUILT AND SUPPLIED TO ORDER
** PLEASE ALLOW APPROXIMATELY 2 - 3 WEEKS FOR DELIVERY **
NB: Delivery to Scotland may take up to 6 WEEKS

Qty

FREE DELIVERY TO ENGLAND AND WALES*

* Scotland incurs an additional delivery charge

Description

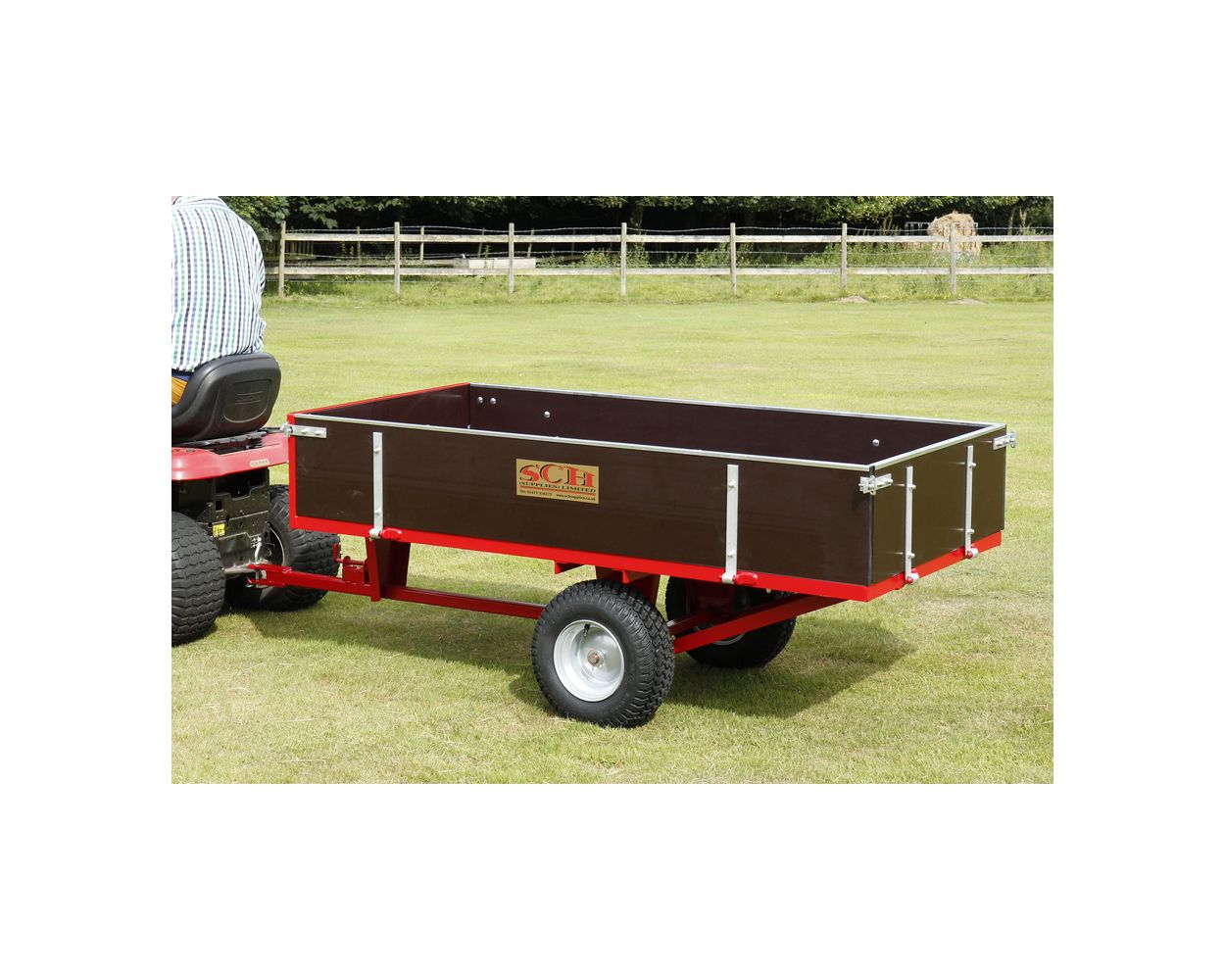

A two-wheeled, timber bodied tipper trailer with a large 760kg (15cwt) carrying capacity. The tailgate and sides are easily removed to give a generous sized platform truck with a fixed head board.

The GWTS15 features a welded steel frame clad with highly durable phenol-coated ply. This coating resists water and helps to prevent rot. Galvanised steel rails run along the top of the wooden sides and tailboard to protect the edges of the ply. The axle is built from a solid steel 1" thick shaft, as opposed to inferior hollow tubing used by many alternative trailer manufacturers.

The two sides and back can fold down for ease of loading and unloading. Galvanised hinges are attached to the sides and tailboard and, when the securing mechanism is undone, these hinges can easily slide off.

A simple to use sprung-pin mechanism releases the trailer and allows it to tip. The pivot point of the trailer is roughly underneath the centre, which allows for very easy tipping and emptying. The tailgate is removable for the efficient discharge of material when tipped. The galvanised tailgate securing mechanism can be quickly released and relatched.

The trailer is fitted with extra wide profile pneumatic wheels complete with bearings. These have a significant surface contact area, making the trailer extremely stable under load. The wide wheels also minimise track marks on the grass.

Optional Extras (see related items below):-

50mm ball hitch (BH)
Extension sides (GWTX15) - four easily removable heavy duty 450mm (18") high extension sides may be purchased separately

Please note: Photographs for illustration purposes only - does not include optional extension sides which may be purchased and fitted separately.

Specification

More Information
Propulsion	Towed
Brand	SCH (Supplies)
Capacity	760kg / 15cwt
Bed Design	Hinged, removable sides and tailgate
Bed Size	L: 1800mm / 72" x W: 915mm / 36" x D: 300mm / 12"
Tipping	Yes
Axle	1" solid steel
Wheel Size	Wide profile with bearings 16/650 x 8
Tow Hitch	Clevis
Weight	105.0kg
Warranty	1 year manufacturer's
Promotional Image	/b/r/british-built_24.jpg

Manuals

SCH Brochure

Brand

ABOUT SCH SUPPLIES.....

They say that necessity is the mother of invention – and this is certainly true of the birth of SCH (Supplies) Ltd.

Back in 1986, the late founder and former managing director Andrew Rodwell became frustrated at the lack of suitable lawn care attachments to fit to his garden tractor. Not being one to back away from a challenge, Andrew set about designing and manufacturing the attachments he wanted and started selling them to friends who had encountered the same problem.

SCH Supplies Limited now has over thirty years' experience in the manufacture of quality grounds care machinery and is proud of the fact that 90 per cent of its products are British built. SCH products are robustly made and, in most cases, very simple to use. The company can supply almost everything you could possibly want to tow behind your estate or garden tractor, including a range of lawn care maintenance machines, waterers, sprayers and trailers, as well as specialist equestrian and sports surface machines.

Based in Ipswich, Suffolk, the company has grown to 20 employees who design, manufacture and delivery a vast range of products, not to mention the 'one offs'. If required, SCH will work with a customer to build a bespoke garden machine to agreed specifications.

Please Note: Due to the nature of this specialist equipment, SCH Supplies builds its products to order and prefers to deliver using its own transport, which is why we quote an extended lead time.
