SCH Sports Surface Equipment

The SCH chemical applicator is fitted to the carrier frame to apply required chemical to long fibre synthetic sports surfaces, of which 3G is the most common at this time.

The chemical is applied by dribble/drip bar mounted in front of the row of scarifying tines, in order to apply the chemical and then the tines will open up the surface to allow the prescribed chemical to reach the required areas.  Flow rates can be adjusted to suit the required application rate.

Power to the pump is supplied from the towing unit.  An independent battery may be fitted if required.

This artificial surface grooming rake is a small, basic machine designed to carry out routine maintenance on artificial playing surfaces with a sand base. It features two rows of staggered spring tines which tease through the playing surface to remove surface compaction and aid drainage.

The SCH artificial surface rake features a weight tray which allows top weight to be added to increase penetration on heavily compacted surfaces. The trailing brush will level and groom the play area, leaving it in a ready state for many hours of hard use.

With a 120cm (48") working width, each row of tines can be lifted out of work individually to suit your grooming requirements. For example, you can remove the two spring tine rows and leave just the brush in work.

This grooming rake is suitable for towing behind 13hp lawn tractors and above. It can be lifted out of work for simple and safe transportation to the storage area.

A clevis hitch is fitted as standard. A 50mm ball hitch can be fitted as an optional extra.

SCH can also supply different working widths to order - price on application.

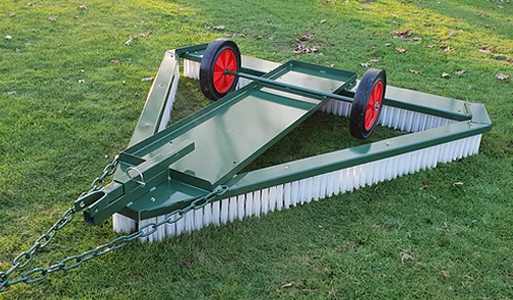

This SCH triangular brush gives artificial play areas as well as natural surfaces that vital 'scratch' in between major services.  The wheels on the upper side of the brush make it easy to transport to your storage area; simply turn the brush onto the wheels.

A weight tray is incorporated in the design in order that top weight may be added to aid penetration on heavily compacted surfaces. The weight tray can also be used to transport tools and equipment.

Other widths are available upon request.

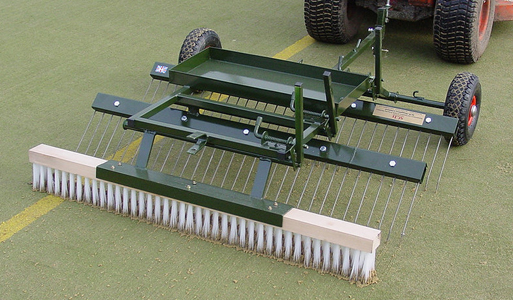

This three point linkage artificial surface grooming rake is designed to carry out routine maintenance on artificial playing surfaces with a sand base. It features two rows of staggered spring tines which tease through the playing surface to remove surface compaction and aid drainage.

The SCH artificial surface rake features a weight tray which allows top weight to be added to increase penetration on heavily compacted surfaces. The trailing brush will level and groom the play area, leaving it in a ready state for many hours of hard use.

With a 180cm (71") working width, each row of tines can be lifted out of work individually to suit your grooming requirements. For example, you can remove the two spring tine rows and leave just the brush in work.

This grooming rake is suitable for towing behind 13hp lawn tractors and above. It can be lifted out of work for simple and safe transportation to the storage area.

SCH can also supply many different working widths to order - price on application.

This dedicated towed grooming brush from SCH has a working width of 1200mm (48") and performs two functions:-

The stiff yellow brush teases into the matting, raising the surface to keep the pores open to encourage the drainage and allow air into the depth of the mat to prevent algea build up. The two rows of brushes have a cross bar system which adjusts the flex of the bristles. The brush can be lifted out of work easily for turning and transport from the driver's postition.

This SCH hard surface towed sweeper benefits from a sprung floor, which allows the sand to flow back through the base of the hopper, at the same time collecting debris such as leaves, seeds and twigs.

A differential mechanism on the brushes which allows the sweeper to be manoeuvred in tight corners without the wheels scuffing; height adjustment is simple.  Both wheels drive the pick up brushes giving excellent sweeping power.  The main drive is transmitted via metal gears.

A cover plate is supplied with each machine to cover the mesh floor in sweeping operations where all debris is required to be collected.

Keep your sports and hard surface areas free from debris with this tow-behind hard surface powered sweeper from SCH Supplies.

The sweeper is powered by a 5.5hp Honda engine and fitted with a speed reduction gear box. The brushes are height adjustable so the sweeper can be set with great accuracy to apply the exact level of lightness or firmness you need. Equipped with a centrifugal clutch, the engine speed is reduced when the brushes stop revolving, which is ideal for tight turns at the end of a run. Featuring a working width of 90cm (35½"), the debris is collected into a spacious 270 litre catcher.

A mesh floor is perfect for use on sand-filled or 3g surfaces when you need the sand to pass back onto the surface by passing through the mesh. Stones, twigs and leaves will be retained by the mesh floor. A solid cover to the mesh is also supplied in order that hard surface athletic tracks, tennis courts, etc, can be cleared entirely of even the smallest of debris, including sand.
