SCH Sprayers

The SCH indoor waterer is a very useful water dispenser for the maintenance of indoor plants.

The water unit has a 25 litre (5 gallon) tank mounted on a two wheel trolley which is easily manoeuvered by the handle around corridors, aisles etc. The water is dispensed by a small 12 volt pump powered from an integral rechargeable battery. A battery charger is supplied with each unit.

Water can be directed where it is needed using the lightweight trigger lance. There is also a small container for collecting plant groomings. A manual handle makes the transporting of the unit up and down stairs and van loading an easy operation. For extra versatility, the water tank can be removed leaving a very useful trolley to transport plant containers.

A useful small water tanker for watering trees, shrubs and plants in dry weather. The tanker may also be used for carrying drinking water to animals. The water is discharged through a 3/4" tap at the rear.

The pneumatic wheels on the GWC are complete with roller bearings for long life.

A front jack leg is fitted as standard.

Optional Extra:

• 50mm ball hitch (see related items below)

A useful small water tanker for watering trees, shrubs and plants in dry weather. The tanker may also be used for carrying drinking water to animals. Generally the same as the GWC, with the addition of a 12 volt pump discharge.

The hand-held toggle switch turns the water flow on/off.

Optional Extra:

• 50mm ball hitch (see related items below)

The GBS5 25 litre compact sprayer can be towed or pushed. In either mode the sprayer can be used in different formats:-

• with the hand held brass trigger lance - for spraying plants, trees, shrubs and spot spraying docks, nettles, etc
• as a wide band sprayer - by fixing the trigger nozzle into the integral holder and changing to the fan pattern nozzle or a wide angle nozzle supplied with the sprayer
• a three nozzle spray boom may be fitted to the compact sprayer giving a spray band of 1220mm (48").

The sprayer pump is powered by its own rechargeable dry cell battery. The battery and charger are included with the unit. The compact sprayer is mounted on a chassis having four 200mm (8") rubber tyre wheels making it extremely stable and easy to manoeuvre.

Supplied as standard:

• A three nozzle spray boom giving a spray width of 1220mm (48")
• A brass hand trigger lance for hard to reach areas. This can be adjusted for use as a wide band sprayer by changing the nozzle tips supplied.

This 50 litre trolley mounted waterer from SCH is of rugged construction. The trolley is mounted on two large pneuamatic front wheels and two castor wheels, with integral parking brake and handy trash bucket.

With a flow rate of 12 litres per minute, this waterering unit is supplied with a short lance for tubs and beds, as well as a telescopic lance complete with straight head for basket watering up to 6 metre reach. The 3.66 metre (12") heavy duty hose has an on/off lever tap and quick fit coupling for simple lance change over.

The 12 volt DC electric pump comes with rechargeable dry cell battery and charger for around three hours of continuous watering per charge.

Please note: If the telescopic lance is not required, we can discount the price of this waterer. Please enter the discount coupon code NO LANCE at the checkout.

With a large 180 litre (40 gallon) capacity, the tank and pump of this hanging basket waterer are secured to a metal skid frame, which makes this a useful unit for placing in the back of a vehicle or trailer.

The 12 volt DC diaphragm pump with free flow delivers 19 litres (4.18 gallons) of water per minute. The watering unit is supplied with 6 metres of heavy duty hose with on/off facility at the lance. The two lances are fitted with quick fit twist connectors; a short lance for tubs and flower beds; and a telescopic lance with a removable rose head for baskets to give up to a 6 metre reach (image B).

Please note: If the telescopic lance is not required, we can discount the price of this waterer. Please enter the discount coupon code NO LANCE at the checkout.

This SCH irrigation unit is extremely useful for ground watering of young trees, shrubs, etc, from static water sources, ponds, lakes or holding tanks.  It can also be used as a 'first aid' fire pump or for pumping from ponds, lakes or holding tanks.

The 2" pump with its Honda engine can deliver up to 110 gallons per minute.  The flow is adjustable.

Hose is not supplied unless requested.

The PSP power sprayer from SCH has proved to be a very popular unit, versatile and simple to operate unit.

The narrow access PSP sprayer is a special build designed to pass through narrow 450mm (18") seed beds.  It features a 25 litre capacity tank mounted on a steel chassis and two narrow profile wheels.

This sprayer is ideal for those hard-to-reach areas and is complete with a brass hand lance for spot spraying.

SCH are able to build sprayers to your individual requirements.

This extremely versatile and compact sprayer features mountings designed specifically to fit onto ATV storage bars.  It has an integral 12 volt diaphragm pump which is powered by the ATV's own battery via a connection lead.

The sprayer has a 70 litre capacity and is supplied as standard with a four nozzle boom with an 80" spray width, as well as a hand trigger spray lance which is idal for spot application of weed killers and pesticides.  The lance and boom are easily interchanged by means of quick release couplings.

This SCH mounted sprayer is equipped with a five litre fresh water washing bottle.

Carry much needed water to areas where hose pipes, etc, are not practical with this extremely useful garden watering unit from British manufacturer SCH Supplies.

The SCH garden watering unit is equipped with a electric-powered pump which delivers the water to the required area through a rose nozzle which can be removed to convert to a single stream flow. An on/off device is fitted to the delivering end of the dispensing hose.

Mounted on a single axle chassis, the watering unit has a tow bar with SCH's standard clevis and pin coupling. This can be upgraded to a 50mm ball hitch if required.

This SCH garden watering unit has a 270 litre / 60 gallon capacity and is supplied with 6 metres of ¾" hose.

It can be filled from any external source such as a pond, water tank, etc. This adaptation must be requested at the time of ordering. An additional 12" lance with rose nozzle is also available (see related products below).

NB: Photograph is for illustration purposes only and shows petrol version.

This small self-contained waterer is skid mounted and is powered by a 12 volt battery. The unit comprises a pressure system; simply open the lance tap and the pump will start; shut the tap and the pump shuts down.

The 12 volt DC diaphragm pump with free flow delivers 18 litres (3.9 gallons) of water per minute. (A petrol pump option is not available on this model.)

Six metres (20 feet) of heavy duty ½" hose is supplied with on/off facility and quick fit coupling for simple lance changeover. Two lances are also included; a short lance for tubs and flower beds; and a telescopic lance complete with rose head for basket watering up to 6 metre reach.

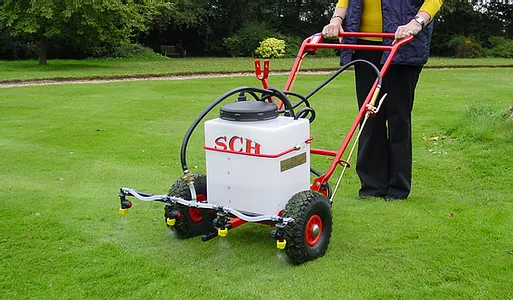

The SCH PSP power sprayer is the most popular model for sports grounds with small to medium sized courts, is versatile and easy to operate. The unit is ideal for spraying paths, gardens and more.

The sprayer has a maximum capacity of 30 litres and is mounted on a three wheel robust tray chassis.  The two leading wheels are pneumatic; the rear castor wheel acts as a line marker.  The pump is a 12 volt diaphragm pump powered from its own integral battery (a charger is supplied with each machine). The average spray time per battery charge is approximately 5 hours normal spray use (3.5 hours intermittent); this is for continuous spraying so on/off time, refill and movement actions will enhance the overall spray time.

A pressure gauge and a by-pass regulator are fitted for the hand lance. The pump is run on a pressure system which means when the spray is shut off, the pump shuts down; open and the pump restarts.

The low to ground four nozzle boom minimises drift and therefore close to edge work can be carried out.

A brass trigger lance is supplied for spot spraying.  The handles are adjustable to suit the operator.  A tow bar is supplied with each machine.

Optional Extras (see related items below):

• Spray boom cover
• Dribble bar
• Extension to brass hand lance
• Delivery hose
• Wider spray coverage booms
• Pumps up to 18lpm output can be fitted
