SCH Sweepers, Collectors and Blowers

This useful wandering hose kit has suction/delivery hose diameter of 200mm / 8".  Side discharge cutter decks can be fitted with a 'boot' to accept the collection hose.

NB: Picture for illustration purposes only - TRCL collector not included.

The TS98 lawn sweeper is robust in construction to withstand prolonged heavy use. British built by SCH with parts of the highest standard, this is probably the best value and one of the most effective sweepers on the market.

The sweeper may be used for grass collection after mowing, leaf collection and other garden debris. To achieve the best results when hard surface sweeping, a rubber strip can be fitted at time of manufacture (see accessories below).

The brush shaft is split in the centre acting as a differential. Therefore each drive wheel powers the sweeper brushes giving twice the performance and efficiency compared with one free wheel. The stainless steel brush shaft differential has an advanced method with grease nipple and spiral machined into the connecting pin for even distribution of grease.

Four rows of brushes, which are mounted on a hardwood stock, can be replaced once worn out by simply bolting new brushes directly onto the drive shaft without having to disturb the drive gear mechanism. If the sweeper is set at the correct height, the bristle tips just sit a fraction above the surface of the ground and will last a long time.

PARTS

Due to the TS98 being manufacturerd and assembled at SCH (Ipswich), all replacement parts are readily available and can usually be despatched for next day delivery. The all-metal drive mechanism is very durable for prolonged heavy use. The drive gears are less likely to strip apposed to nylon gears used in cheaper versions.

MAINTENANCE

The TS98 requires limited maintenance provided that it is used in dry conditions. A simple 'wash down' will remove any debris. If the machine is not to be used for a while, it is recommended that all moving metal parts be lubricated. Routine checking of parts to ensure bolts are secure, etc, should be all that is required.

OPTIONAL EXTRAS

• 50mm ball hitch
• Hard surface rubber front strip
  SCH advise that the strip should be removed when using the sweeper on grass to ensure optimum performance

This SCH hard surface towed sweeper benefits from a sprung floor, which allows the sand to flow back through the base of the hopper, at the same time collecting debris such as leaves, seeds and twigs.

A differential mechanism on the brushes which allows the sweeper to be manoeuvred in tight corners without the wheels scuffing; height adjustment is simple.  Both wheels drive the pick up brushes giving excellent sweeping power.  The main drive is transmitted via metal gears.

A cover plate is supplied with each machine to cover the mesh floor in sweeping operations where all debris is required to be collected.

The SCH tow-behind leaf blower moves leaves in bulk, leaving them ready for collection.  The blower, in effect, replaces a manual rake.  The blower also makes a simple task of moving leaves from flower beds, edges of driveways, paths, etc.

The hand conversion handle is supplied as standard which makes the leaf blower an extremely useful leaf manager in areas where it is too restricted to operate a tractor.

This large capacity leaf collector has been developed by SCH to tow behind lawn tractors having the description known as "twin cut".  Other machines can be adapted on request.

Lawn tractors have a centre rear discharge that blows the cut grass and leaves into a limited size hopper, which results in frequent emptying and can become time consuming and frustrating.  The advantage of the TRCL is that it greatly increases the collecting capacity so that larger areas can be collected in one fill, thus reducing the amount of time and labour required.

The TRCL features a powerful motorised fan unit which is mounted on the front and sucks up the green waste from the cutter deck, then propels it to the trailer.  The trailer has a low centre of gravity, which makes it extremely stable on hilly ground.  Wide pneumatic wheels greatly reduce wheel markings on soft ground. It has now been iftted with a small trasnportwheel to the bottom of he foot stand.

The fan on the unit is belt-driven to protect the engine should a blockage occur.

This SCH large capacity trailed collector is also suitable for use on level tarmac and gravel surfaces.

Optional Accessory

A wandering hose kit is optional.  The suction/delivery hose has a diameter of 200mm / 8".

Side discharge cutter decks can be fitted with a 'boot' to accept the collection hose.

Product ref: TRCLH

Please see related items below.

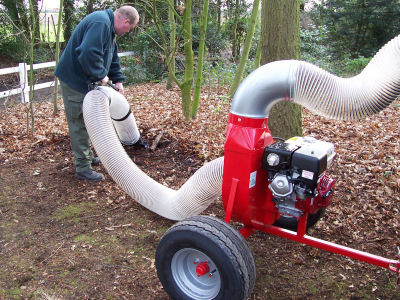

This large leaf suction unit from SCH has a big appetite to clear up large areas of fallen leaves. The PSU fan unit boasts a powerful 9hp Honda engine and is mounted on a two-wheel chassis with an integral tow bar complete with hand-held collection nozzle. The fan is belt driven and not fitted directly onto the crankshaft of the engine.

The preferred way of using this leaf suction unit is to attach it to the rear of the leaf collecting trailer. This trailer can be supplied with the trailer adaptation kit - it is up to you whether you modify your own trailer or we can arrange for SCH to collect and modify it for you.

The discharge hose is attached to the rear of the trailer allowing the user to set to sucking up fallen leaves fast. The hand-held suction hose has skid rails on the tube end for ease of operation.  The large diameter suction hose reduces the risk of blockages. A combined team of the suction hose operator and a person driving the lawn tractor can clear along drives and road edges at very impressive speeds.  The leaves passing through the fan are chopped up, greatly increasing the capacity of the trailer and reducing the amount of empties.  Many operators use this equipment in conjunction with a hand-held blower to suck out leaves from flower beds before collecting them with the suction unit.

The SCH professional leaf suction unit is brilliant in places where conventional suction sweepers are unable to operate, such as under benches, around borders, along the edge of drives, etc.

The PSU can be supplied as a package, consisting of a trailer of your choice, plus a powerful suction unit.  The suction unit can be mounted either on a two-wheel trolley (as illustrated) or placed directly onto the back of the trailer. Additional hose can be purchased in 1 metre lengths (see related items).

Important: Images are for illustration purposes only.

The trailer shown in the images above is the GWTS15 with mesh sides and trailer kit accessories.

The EPB has been built to reduce the manual collection of horse droppings and improve pasture management.

Suitable for use with most garden tractors and ATVs. Four rows of tough propropelene brushes that can sweep horse droppings, wet / dry grass and leaves. The brush height can be easily adjusted.

The regular removal of droppings promotes healthy grass and helps reduce droppings related diseases. Four rows of height adjustable brushes rotate at variable speeds to flick the droppings into the rot proof rear collecting box. The brushes are driven by a 5.5hp Honda engine equipped with a speed reduction gear box which incorporates a centrifugal clutch, this means when the engine speed is reduced the brushes stop revolving, a necessary feature when moving from heap to heap.

The Equestrian Powered Brush can also be used for other sweeping tasks e.g. car parks etc. The tow hitch is fitted with a 50mm ball hitch.

The unit has four pneumatic wheels; the collection box is made of strong plastic material, mounted on heavy tubular frame, thus making this a durable machine for many years use.

The brushes are easily changed when they become worn.

Optional extras:

• Clevis hitch
• Ball hitch

The PSUST is a slow-tow version of the PSU.  The two-wheel chassis is complete with suspension units and required lighting.

The hand-held suction nozzle is fitted to three meters of 200mm diameter hose.

The discharge is via a metal tube with a swivel base to allow the direction to be altered. The discharge head is also adjustable.

A jockey wheel and 50mm ball hitch is fitted as standard.

The fan belt is driven and not fitted directly onto the crankshaft of the engine.

This large leaf suction unit from SCH has a big appetite to clear up large areas of fallen leaves. The PSU fan unit boasts a powerful 9hp Honda engine and is mounted on a two-wheel chassis with an integral tow bar complete with hand-held collection nozzle. The fan is belt driven and not fitted directly onto the crankshaft of the engine.

The preferred way of using this leaf suction unit is to attach it to the rear of the leaf collecting trailer. This trailer can be supplied with the trailer adaptation kit - it is up to you whether you modify your own trailer or we can arrange for SCH to collect and modify it for you.

The discharge hose is attached to the rear of the trailer allowing the user to set to sucking up fallen leaves fast. The hand-held suction hose has skid rails on the tube end for ease of operation.  The large diameter suction hose reduces the risk of blockages. A combined team of the suction hose operator and a person driving the lawn tractor can clear along drives and road edges at very impressive speeds.  The leaves passing through the fan are chopped up, greatly increasing the capacity of the trailer and reducing the amount of empties.  Many operators use this equipment in conjunction with a hand-held blower to suck out leaves from flower beds before collecting them with the suction unit.

The SCH professional leaf suction unit is brilliant in places where conventional suction sweepers are unable to operate, such as under benches, around borders, along the edge of drives, etc.

The PSU can be supplied as a package, consisting of a trailer of your choice, plus a powerful suction unit.  The suction unit can be mounted either on a two-wheel trolley (as illustrated) or placed directly onto the back of the trailer. Additional hose can be purchased in 1 metre lengths (see related items).

Important: Images are for illustration purposes only.

The trailer shown is the GWTS15 with mesh sides and trailer kit accessories.

SCH Supplies' popular PSU leaf sucker is now available as an all-in-one unit fixed to the GWTS15 trailer, which can be towed behind any small tractor, AVT or RTV.

The trailed leaf sucker is equipped with an 8" diameter collection hose with a handle for comfortable operation. The TPSU can cope with large quantities of leaves being drawn up and then chopped by the fan so that much smaller pieces go into the trailer, thereby effectively increasing capacity and reducing trips to empty.

If wet leaves or other debris happen to block the inlet, cleaning is simple via the removal of just one bolt. There is also an inspection door fitted with a safety interlocking switch.

The fan is belt driven so there is no shock loading on the crankshaft. The tips of the fan itself are easily and cheaply replaceable.

The trailer is narrow enough to fit down small pathways and, when not being used to collect leaves, it can be used independently for a multitude of other tasks around the property.
