Snapper ZTX175 107cm/42" Rear Discharge Zero-Turn Ride-On Mower

Description

Designed for bigger lawns with a 107cm (42") deck, and combining commercially-inspired features such as a fully-welded steel frame, thick-walled front axle and easy access maintenance points, the ZTX175 zero-turn tractor delivers the next level in superb all round cutting performance.

Powered by a 656cc Briggs & Stratton 7220 EXi V-Twin OHV engine, fuel efficiency, low vibration and smooth running are characteristics thanks to the V-Twin cylinder design. A full pressure lubrication system and spin-on oil filter enhance maximum engine life.

Manoeuvring the ZTX175 is controlled by the adjustable soft touch lap bars, whilst a comfortable driving position is enhanced by the mid-back seat with built-in armrests. Snapper zero-turn mowers let you easily navigate around obstacles and get into tight spaces so you won't miss a single blade of grass. Snapper zero turn mowers, with a turning radius of 0 degrees, offer unparalleled manoeuvrability and speed, allowing you to mow your lawn with precision and efficiency.

Constructed from 12-gauge fabricated steel, the heavy-duty rear eject cutting deck enables the operator to cut quickly and leave a smart finish. With a rear discharge zero-turn mower, clippings are ejected at the rear of the mower deck, reducing the risk of clippings landing in your carefully maintained flower beds.

The foot-operated mower deck lift and uncomplicated single pin design allow 13 heights of cut to be made, ranging from 38mm-110mm. Electric engagement of the double-bladed cutting deck is easily made by the ergonomically placed panel mounted control. Deck wheels provide additional support and help to reduce scalping, whilst the addition of a wash port makes underside deck cleaning simple.

A full-height mulch baffle is available as an option. Plus, the optional integrated rear cargo bed provides on-the-go versatility and convenience out in your garden.

Specification

More Information
Brand	Snapper
Engine	Briggs & Stratton
Engine Model	7220 EXi V-Twin
Displacement	656cc
Engine Cylinders	2
Fuel Tank Capacity	11L
Start Method	Electric key
Transmission	Hydro-Gear® EZT®
Drive Method	Foot pedal control
Speeds	Forward: 0-11.0km/h / Reverse: 0-4.0km/h
Turning Circle	0cm
Productivity	9.416m²/h @ 80%
Width of Cut	107cm / 42"
Deck Type	Fabricated steel, CentreCut™, with rear discharge kit fitted
Deck Lift	Foot-operated
Blades	2, Eliminator® mulching
Blade Engagement	Electric PTO
Minimum Cutting Height	38mm
Maximum Cutting Height	110mm
Cutting Height Adjustment	Central, 7 positions
Anti-Scalp Deck Wheels	2
Deck Wash Nozzle	Yes
Rear Roller	No

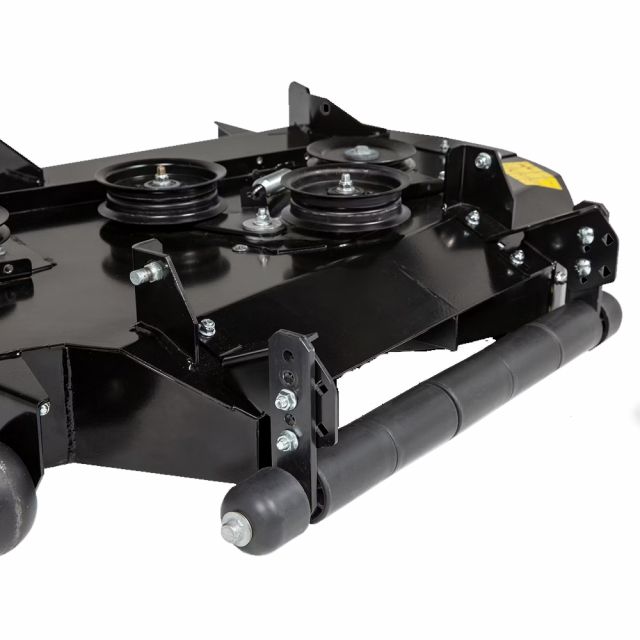

Rear Roller	Optional roller kit accessory: SA-1697536

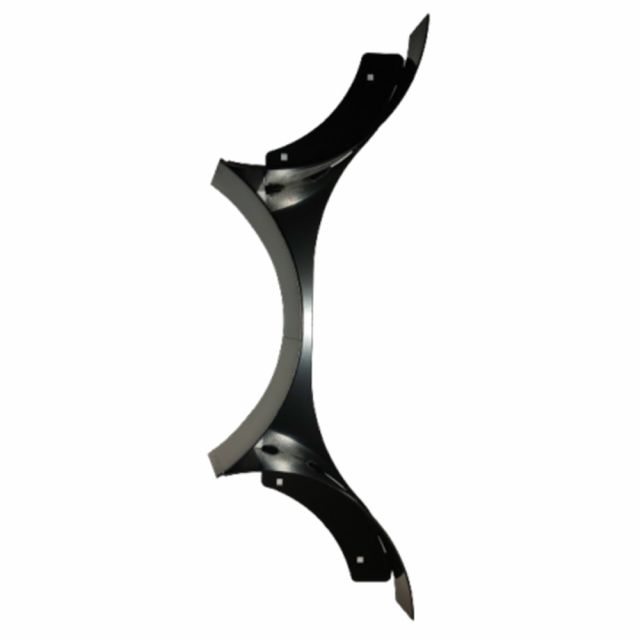

Mulch Plug	Half-height mulch baffle fitted Optional full-height mulch baffle accessory: SA-84007258
Seat	Adjustable, mid-back with armrests
Wheels - Front	11" x 4"
Wheels - Rear	18" x 8.5"
Frame	Fully-welded, steel
Front Axle	Steel, pivoting
Headlights	Optional light kit accessory: 1697104
Cup Holder	Yes
Hour Meter	Yes
Cargo Area	Optional accessory: SA-1696711
Assembled Dimensions	L: 187cm x W: 112cm (side chute up) / 139cm (side chute down) x H: 101cm
Weight	250.0kg
Model	2691924
Global Trade Item Number	0047282820131
Warranty	Manufacturer's - 3 years domestic / 3 months professional (registered within 30 days of sale)
Promotional Image	no_selection

Features

Welded steel frame for increased stability and durability The ZTX series can withstand even the roughest terrains. With its solid construction, it provides stability and support, ensuring long-lasting performance and reliability.
	Steering lever height adjustment for an optimal seating position The two lever steering controls are adjustable for more convenient and comfortable operation.

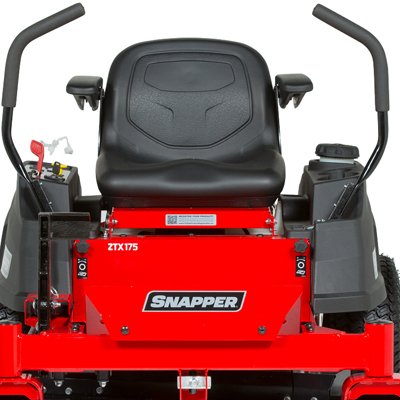

Comfortable mid-back seat The seat is adjustable and has armrests for optimal ergonomics.

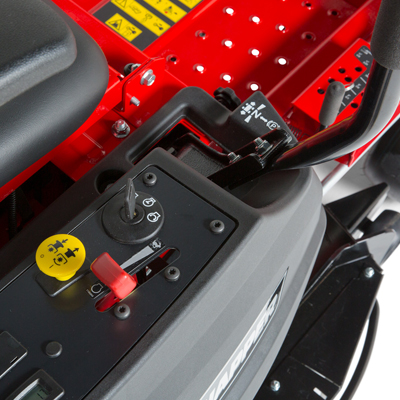

	Ergonomically-placed control panel Easy to use lawn mower controls, including an hour meter, are all within reach.
CentreCut™ Convertible Mowing Technology CENTRECUT™ REAR DISCHARGE DECK The CentreCut™ mower deck on the ZTX175 comes in a pre-configured rear discharge version. The mower deck offers 50:50 mulching/rear discharge modes. In all cutting modes, the rear discharge deck provides trimming edges on both sides of the deck preventing from clippings being blown into flowerbeds or pavements.

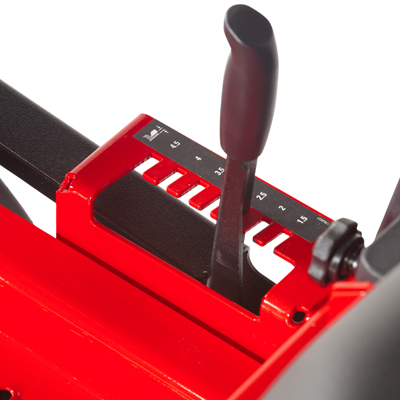

	Seven height of cut positions from 38 to 110mm The commercial-style foot-operated mower deck lift easily raises and adjusts the mower deck between seven height-of-cut positions from 38 to 110mm.

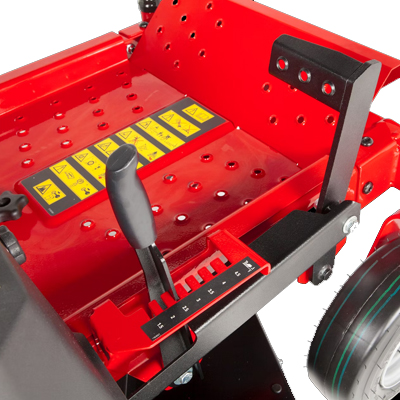

Foot-assisted mower deck lift for easy height-of-cut adjustment No more heavy manual lifting of the mower deck. Easily adjust between different cutting heights.

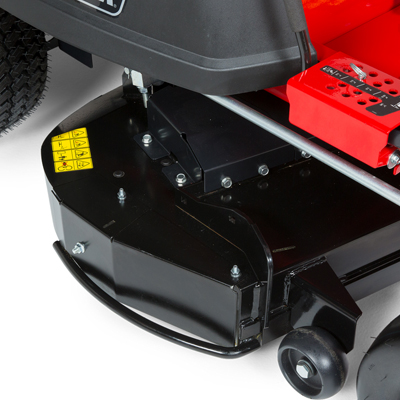

	91cm robust welded steel mower deck This 91cm welded steel mower deck can withstand even the roughest terrains. Including a washout port, providing easy cleaning of the mower deck by connecting a standard garden hose to the connector.

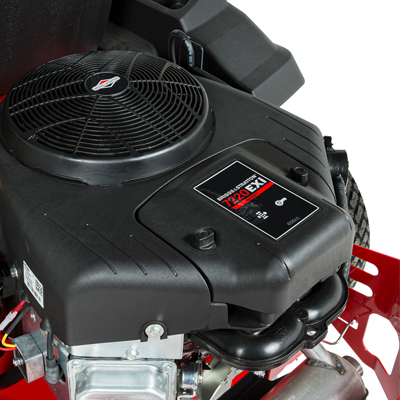

Briggs & Stratton 7220 EXi V-Twin engine Powered by a reliable Briggs & Stratton 7220 EXi V-Twin OHV engine that delivers consistent and reliable power, ensuring superior performance and durability to keep your riding lawn mower running for many years to come.

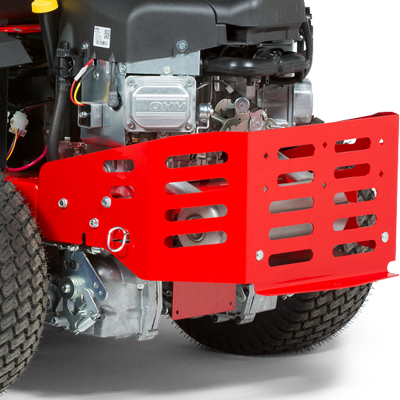

	Engine protection The wrap-around steel engine enclosure helps protect critical components.

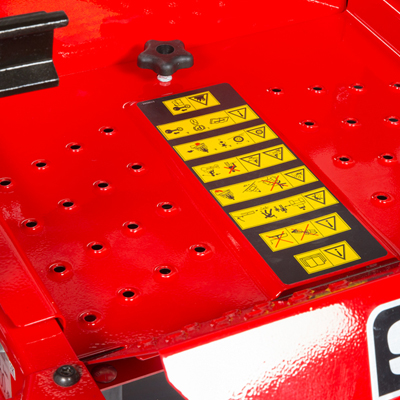

Easy access to deck maintenance points Get easy access to the deck maintenance points with the removable floor plate.

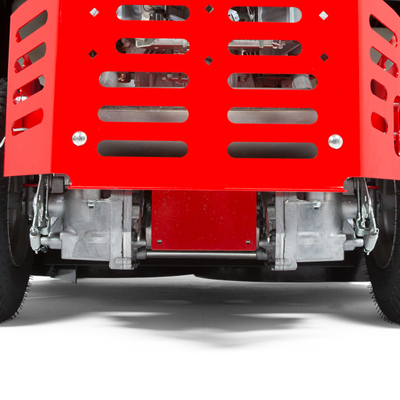

	Hydro-Gear® EZT transmissions Hydro-Gear's most popular residential-grade integrated transaxle unit is the EZT®, which has a proven track record of high performance.

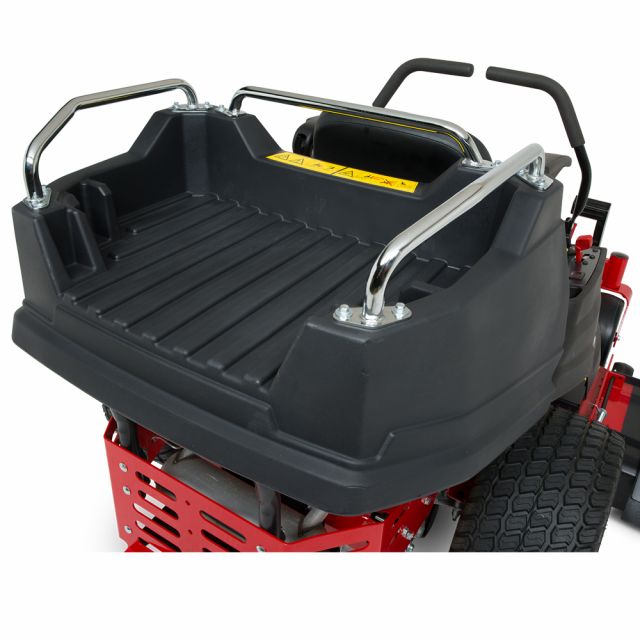

Optional cargo bed Increase versatility by adding the optional cargo bed to your zero-turn mower. You can use it to move tools and plants around your garden. Maximum capacity 25kg.
