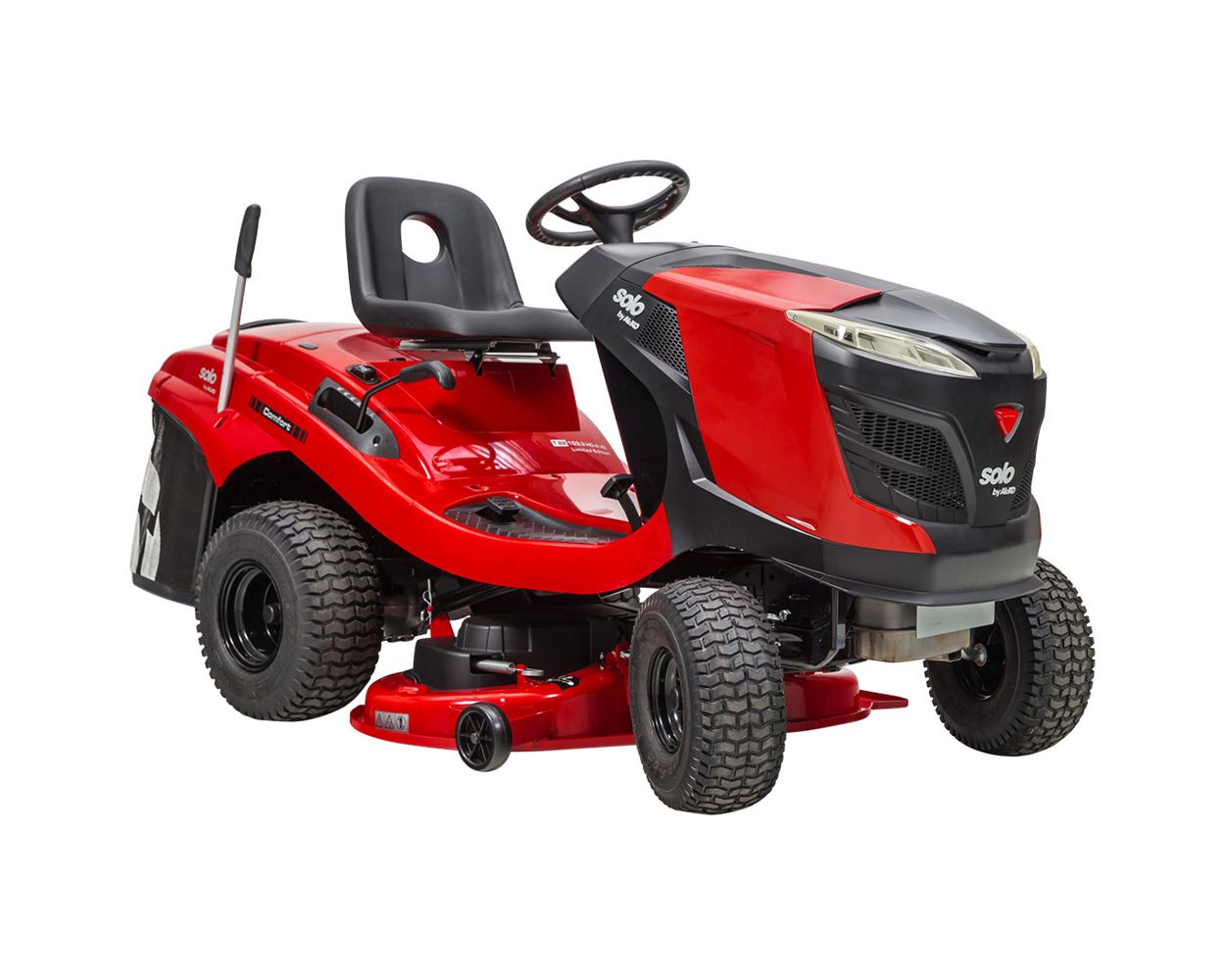

solo by AL-KO T 18-103 HD-A V2 Comfort 103cm/42" Hydrostatic Rear Collect Lawn Tractor

Description

The T 18-103 HD-A V2 forms part of the new generation of solo by AL-KO Comfort pro lawn tractors which sport a fresh new look thanks to the latest, innovative bonnet design. Quality and longevity are guaranteed with this machine thanks to the manufacturer's key objectives; "engineered in Germany" and "made in Austria".

With a cutting width of 103cm (42"), this rear collect lawn tractor is ideally suited to mow large gardens efficiently and quickly. The T 18-103 HD-A V2 Comfort lawn tractor is powered by a 9.4kW 586cc AL-KO PRO 600 V2 (V-Twin) cylinder engine. Refuelling of the seven litre petrol tank is convenient thanks to the external filler neck. Featuring a special, patented free-wheel mechanism, the accelerator pedal is switched off when braking which protects the transmission and increases the service life. The cutting height can be adjusted centrally in six steps from 30mm to 80mm, which should suit a variety of mowing conditions.

Other advantages in terms of comfort are the easily accessible controls, the stepless foot hydrostatic transmission and the low step-through design, including plenty of legroom and comfortable, tool-free adjustable seat. The MaxAirflow technology ensures optimal grass transport into the grass catcher for high efficiency and few empty runs when working with the lawn tractor. When the grass collector is full, an audible signal indicates that the box should be emptied in good time. Thanks to the improved frame, the collection box has a new pivot point, which in turn means simplified emptying - while increasing the capacity at the same time. Hooking and unhooking is also much easier.

An high performance mulch plug (not included) enables a simple changeover to mulching mode by simply inserting the optional accessory into the rear discharge channel without the use of tools. The process of mulching cuts up the grass clippings very finely and disperses them neatly over the surface of the lawn so you will hardly notice them, resulting in improved soil as the clippings decompose and return vital nutrients back into your lawn.

The large 18" rear tyres ensure good grip and good progress on any surface and in any terrain. The durable mower deck made of sheet steel includes two blades for a clean cut of grass and can be removed in a few simple steps, ideal for cleaning and replacing the blades.

The torsion-resistant, durable and very stable frame withstands the heaviest workloads with sophisticated build quality to protect moving parts. LED headlights are 10 times brighter.

Fitted with an optional tow hitch, a range of tow-behind lawn care attachments and trailers can turn this lawn tractor into a year-round workhorse.

Thanks to its oustanding design and striking appearance, the clear lines and excellent workmanship make solo by AL-KO lawn tractors eye-catchers for years to come.

Specification

More Information
Brand	solo by AL-KO
Model	127726
Recommended Lawn Area	Up to 7000m²
Engine	AL-KO
Engine Model	PRO 600 V2 (V-Twin)
Engine Type	4-stroke, air cooled, OHV
Engine Cylinders	2
Displacement	586cc
Rated Power Output	9.1kW @ 2450rpm
Fuel Tank Capacity	7.0L
Transmission Type	Hydrostatic
Transmission	Foot-operated T3
Speeds	Forward: 9.0km/h Reverse: 4.0km/h
Differential Locking	No
Mow In Reverse	Yes
Width of Cut	103cm / 42"
Blades	2
Minimum Cutting Height	30mm
Maximum Cutting Height	80mm
Cutting Height Adjustment	Central, 6 stages
Collector Capacity	250L
Fill Level Indicator	Yes, audible
Collector Emptying	Telescopic lever
Mulch Plug	Optional accessory: AK119656
Rear Deflector	Optional accessory: AK127488
Front Bumper	Optional accessory: Comfort AK119658 / Premium AK127731
Headlights	Standard: AK119832
Seat	Adjustable (tool-less)
Wheels - Front	15 x 6.0-6
Wheels - Rear	18 x 8.5-8
Tow Hitch	Optional accessory: AK119831
Assembled Dimensions	L: 239cm x W: 110cm x H: 114cm
Sound and Noise Data	100dB(A)
Global Trade Item Number	4003718064933
Warranty	Standard domestic: 2 years Extended domestic: 5 years (subject to online registration and annual service) Commercial: 90 days
Promotional Image	no_selection

Features

THE ALL NEW TRACTOR

The Upgrades

	New modern bonnet design The Comfort bonnet has been redesigned following customer feedback. solo by AL-KO has developed an entirely new appearance inspired by the automotive industry. The new design is more modern and stylish. It's not just the appearance that has been improved, but also the mounting of the bonnet. The new design feels more stable and rigid when opening.
	More sleek and powerful headlights Slimline LED headlights are 10X more powerful, curving around the bonnet.

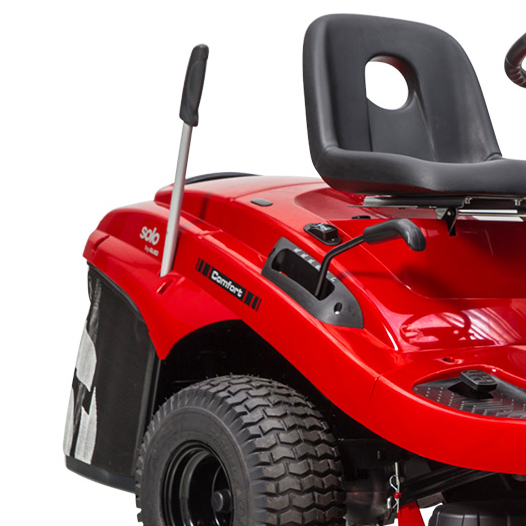

	New collector mounting The collector has a completely new mounting structure further away from the lawn tractor. This allows quicker and easier mounting and dismounting of the collector. A new dual locking mechanism will firmly hold the collector in place in all situations.
	Redesigned larger 250 litre collector All Comfort rear collector tractors now feature a 250 litre grass box with telescopic lever. This is now standard across the range (up from 220L) and provides an 11% increase in capacity, giving the new Comfort lawn tractor one of the biggest grass boxes in its class!
	Redesigned geormetry makes emptying 20% easier When the grass collector is full, thanks to a new mounting geometry the force required to empty it is 20% less than the previous version, even with a larger collection capacity.

Video

Manuals

OPERATOR'S MANUAL

Brand

ABOUT AL-KO GARDEN + HOBBY.....

AL-KO Gardentech acquired Sindelfingen-based SOLO Kleinmotoren GmbH to strengthen its range of garden machinery. The AL-KO range has been expanded with ride-on mower and lawn tractors, petrol chainsaws and trimmers, providing customers with expertise and strong, tradition-rich brands in one product range.

Founded in 1931 by Alois Kober as a small metalworking shop in southern Germany, AL-KO has become a global player comprising of more than 50 sites in 30 countries. The AL-KO Group today employs over 4,200 people worldwide covering three business divisions - Vehicle Technology, Garden + Hobby, and Air Technology. All AL-KO employees take great pride in the quality products they manufacture.

For greater enjoyment in the garden

For more than 50 years, AL-KO has been developing and designing innovative garden tools for an extremely wide range of requirements and applications. Not only do AL-KO tools reflect its many years of expertise in technology and function, they also set new standards in terms of design.

When the best is expected

With Germany efficiency, AL-KO's research and development engineers create pioneering garden tools from hundreds of individual parts. Materials of the highest quality, ingenious technology, perfect ergonomics and a sure feel for form and deteail make AL-KO's garden tools unmistakable.

The rigourous quality requirement that characterises the AL-KO band is guaranteed through its comprehensive technology programme that is consistently planned and implemented by AL-KO development engineers, designers and technicias - from the first design, to prototype construction and the end product.

Why not take the plunge into the world of AL-KO and get to know its high-quality products - without doubt you will find just the right implement for your requirements. AL-KO has everything you need for the garden, whether you are mowing, trimming, shredding, mulching, scarifying, lawn raking, cultivating, splitting or clearing ...

Warranty

All machines come with a two year warranty, following this machines have an extended warranty depending on the range and annual servicing by an authorised AL-KO dealer.

Award-winning

The German Design Award is the premium prize of the “Rat für Design”. With its global spectrum and international appeal, it is one of the most respected awards in the design landscape across all industries. Since 2012, the German Design Award has been identifying key design trends, presenting them to a broad public and honoring them. Every year, extraordinary submissions in product design, communication design and architecture are chosen, which cover all areas of daily life.

The “Winner” of the German Design Award, which AL-KO received for its solo® by AL-KO Premium pro lawn tractor and its solo® by AL-KO Robolinho® robotic lawn mower in the Gardening and Outdoor Living category, recognises outstanding work and exemplary implemented design services.
