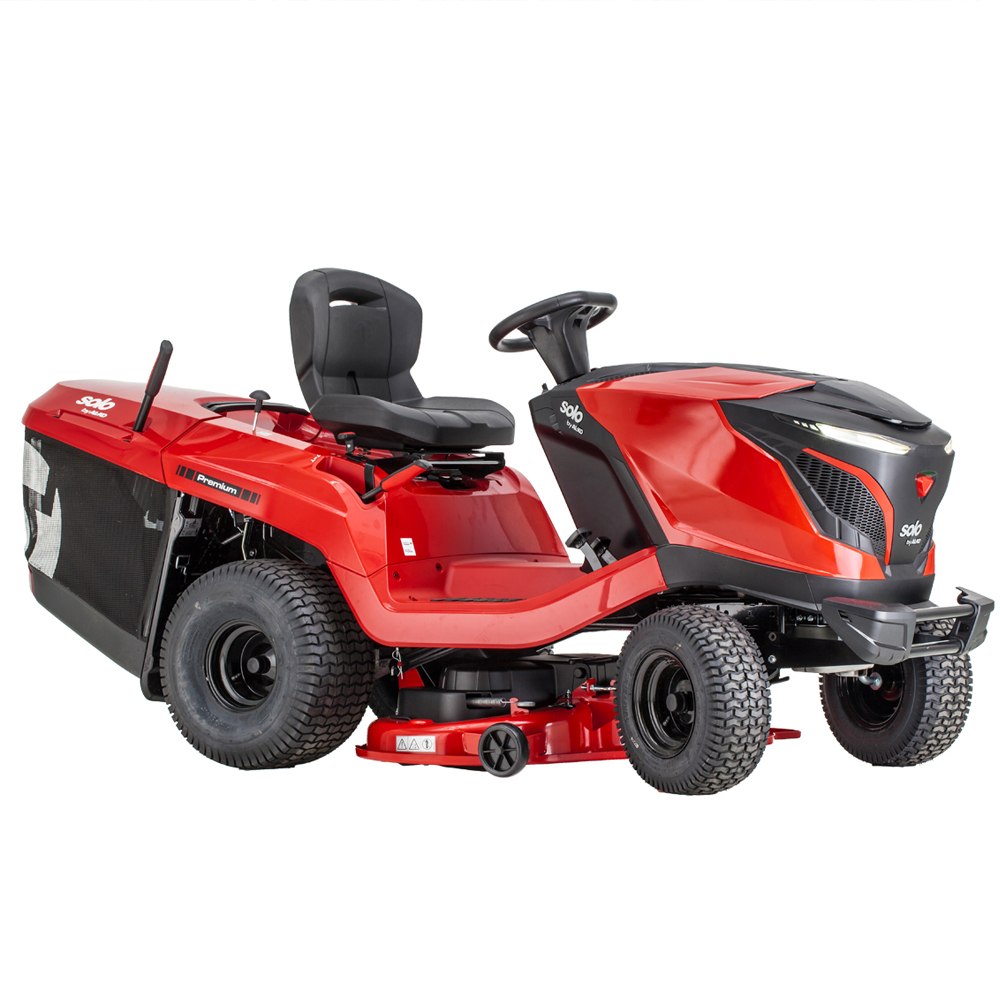

solo by AL-KO T 22-105 HD-A V2 Premium Hydrostatic Rear Collect Lawn Tractor

Description

solo by AL-KO's Premium platform lawn tractor line-up has been expanded to include AL-KO powered machines, the most powerful of which is the T 22-105 HD-A V2 Premium with its 13kW twin cylinder engine, hydrostatic twin touch pedal drive and generous 105cm twin-bladed cutter deck with 3-in-1 function.

AL-KO's 3-in-1 function gives the user the option of either rear discharging, collecting or mulching the grass clippings (with the tool-less mulching kit included). The large 310 litre grass catcher can be conveniently emptied using the telescopic lever from the driver's seat and features an audible alert when it is full. An optional expansion pack is available which allows electrical emptying of the grass box at the press of a button (see accessories below). The cutting height can be centrally adjusted between 30 to 90mm in seven steps.

Designed by German engineers, the solo by AL-KO T 22-105 HD-A V2 Premium lawn tractor is packed with an array of superior and intuitive features which turn a functional garden tool into an emotive driving experience. Low foot rests with premium non-slip foot plates and plenty of legroom ensure easy mounting and dismounting and a low centre of gravity with no danger of tipping. In addition, all controls can easily be reached from the operator's seat, meaning there is nothing to prevent you from enjoying stress-free mowing. The tractor's body is resistant to impact and fading so it will always look like new. The heavy, solid front axle ensures excellent stability whilst wide tyres protect the lawn and ensure optimum traction and driving comfort.

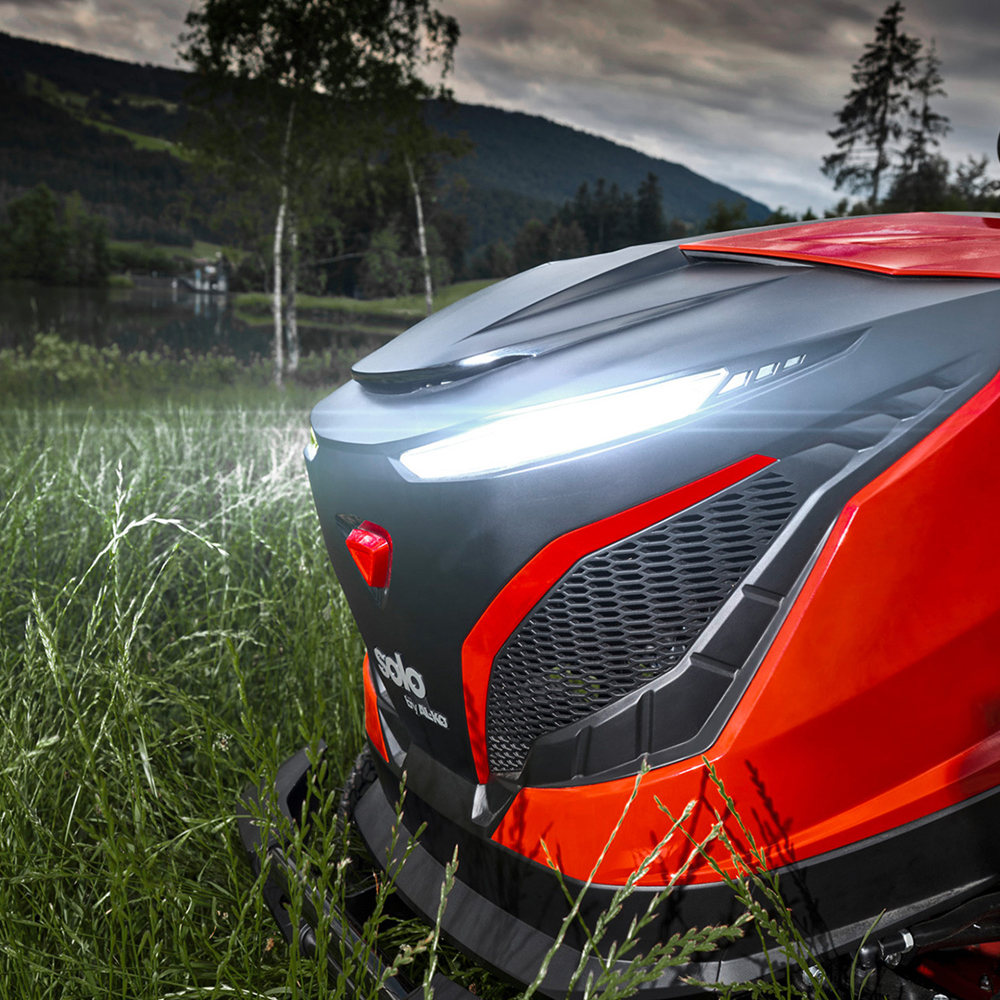

Other key features include optimum seat position, conveniently positioned parking brake, easy access to the battery for charging, integrated toolbar, maintenance free rods for throttle and brake, and a tool-less bonnet for easy maintenance. LED headlights allow for mowing in poor light conditions.

The integral tow hitch extends the use of the AL-KO Solo T 22-105 HD-A V2 Premium lawn tractor to an all-year-round machine with the addition of a range of tow-behind accessories.

The German Design Award is the premium prize of the “Rat für Design”. With its global spectrum and international appeal, it is one of the most respected awards in the design landscape across all industries. Since 2012, the German Design Award has been identifying key design trends, presenting them to a broad public and honoring them. Every year, extraordinary submissions in product design, communication design and architecture are chosen, which cover all areas of daily life.

The “Winner” of the German Design Award, which AL-KO received for its solo® by AL-KO Premium pro lawn tractor and its solo® by AL-KO Robolinho® robotic lawn mower in the Gardening and Outdoor Living category, recognises outstanding work and exemplary implemented design services.

The jury's reasoning: “The solo® by AL-KO lawn tractor impressively reflects the demands on modern technology, comfort and performance with its functional, progressive and dynamic design language. Perfect for mowing large lawns quickly, efficiently and comfortably.”

Specification

More Information
Brand	solo by AL-KO
Model	AK127712
Engine	AL-KO
Engine Model	Pro 700 V2
Engine Type	4-stroke, air cooled, OHV
Engine Cylinders	Twin
Displacement	708cc
Rated Power Output	13.0kW / 2700rpm
Fuel Tank Capacity	8.0L
Transmission Type	Hydrostatic
Transmission	Foot-operated with twin touch pedals (T3)
Cruise Control	No
Mow In Reverse	Yes
Cutting System	Mow, collect & mulch
Width of Cut	105cm
Blades	2
Blade Engagement	Electro-magnetic blade brake clutch
Minimum Cutting Height	30mm
Maximum Cutting Height	90mm
Cutting Height Adjustment	Central, 7 stages
Grass Collector	Fabric with hard top
Collector Capacity	310L
Fill Level Indicator	Yes, with audible alert
Collector Emptying	Manual, telescopic lever Optional electric tip kit AK119602
Mulch Plug	Included as standard: AK119656
Rear Deflector	Optional accessory: AK119606
Front Bumper	Standard premium: AK127731
Headlights	LED standard: AK119832
Seat	Premium padded, infinitely variable adjustment
Steering Wheel	Sports-style anti-slip
Wheels - Front	16 x 6.5-8
Wheels - Rear	20 x 10-8
Tow Hitch	Clevis standard: AK119608
Assembled Dimensions	L: 251cm x W: 110cm x H: 117cm
Weight	320.0kg
Global Trade Item Number	4003718064834
Warranty	Standard domestic: 2 years Extended domestic: 5 years (subject to online registration and annual service) Commercial: 90 days
Promotional Image	no_selection

Features

Reliable Twin-cylinder AL-KO Engine The lawn tractor is equipped with a high quality, twin-cylinder AL-KO engine with a high rated power of 13kW and a displacement of up to 708cc. The engine offers extraordinary durability thanks to cast iron cylinder liners, pressure lubrication with oil filter, anti-vibration system and modern OHV technology. Thanks to the two cylinders, the engine has a much longer service life and higher maximum power making it a reliable unit for demanding operation.
	Automatic Hydrostatic Transmission The hydrostatic transmission enables extremly smooth and dynamic movement of the machine without the need to change gear. The functionality of this drive system can be compared to that of automotive automatic transmissions. The operation of the driving system is limited to selecting the driving direction and regulating its speed by pressing the foot lever. Relieving the pressure on the clutch lever causes the machine to brake and finally stop. Ideal for lawns with tight corners and obstacles, the hydrostatic gearbox allows you to comfortably make turns without the hassle of changing gear.

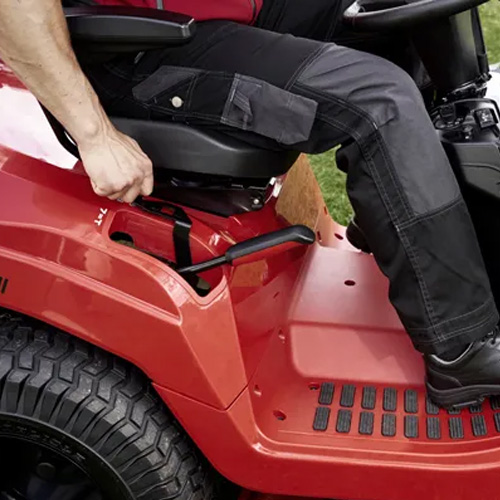

Comfortable Height Adjustment Thanks to the central height adjustment, the cutting height can be conveniently changed from 30 to 90mm with one hand. The ergonomic lever, which is always within the operator's reach, allows for adjusting the height of the mower depending on the lawn conditions and desired finish. Avoid unwanted mowing too high or too low with AL-KO's innovative height of cut memory function.

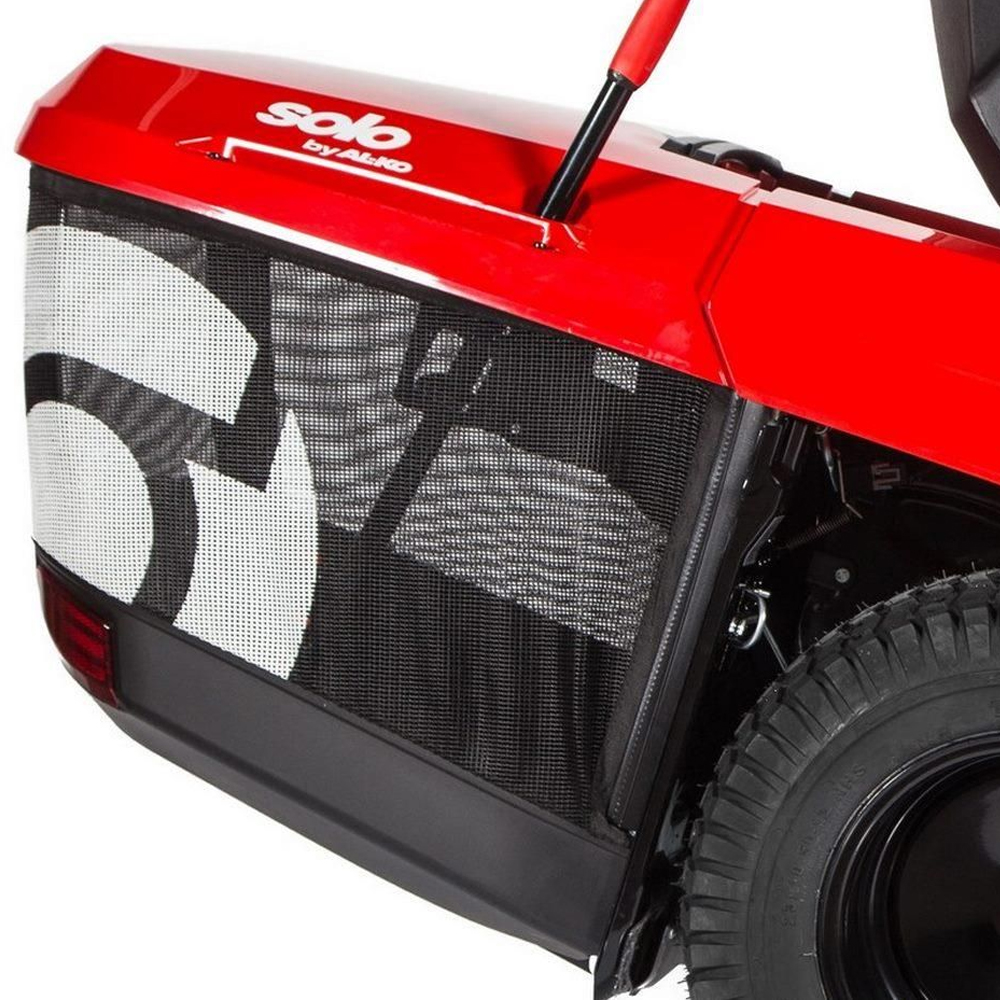

	Durable and Roomy Grass Catcher The capacious 310 litre grass catcher with acoustic fill level signal can be conveniently emptied from the driver's seat using a telescopic lever and allows mowing stops to be spaced well apart. The large, aerodynamically-shaped mesh basket with a durable lid allows for optimal filling of the space, whilst the large opening allows for easy and complete emptying. Optionally, the grass catcher can be emptied automatically at the push of a button.

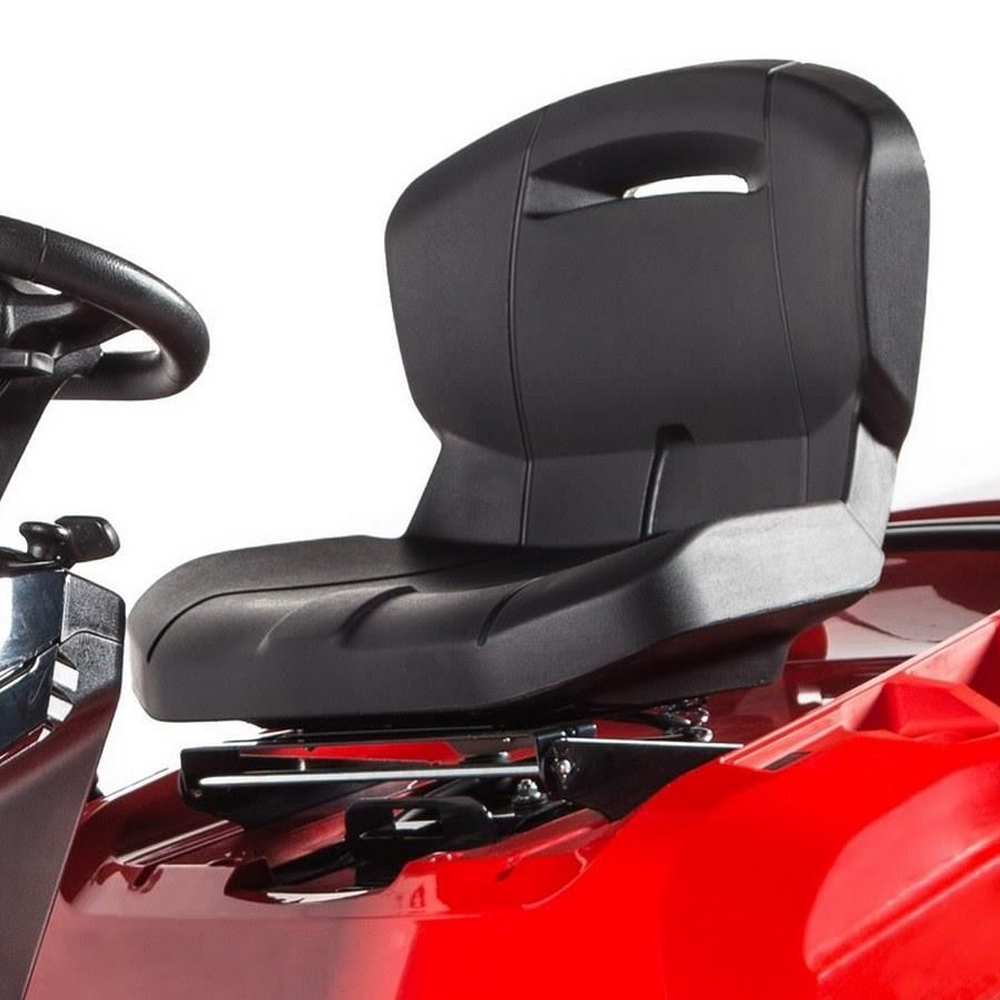

Optimum Seat Position The comfortable, padded operator seat not only offers perfect lateral hold and sitting comfort - the infinitely variable adjustment option also means it can be ideally adapted to any stature. A safety switch automatically turns off the engine and cutting device if the user vacates the seat.
	Perfect Handling The working width of up to 105cm and easy control, combined with narrow turning radius make it possible to work quickly around obstacles and tight areas.
Intuitive The solo by AL-KO tractor offers plenty of legroom for real driving pleasure. In addition, the controls are easy to reach and the forward and reverse pedals are arranged intuitively adjacent to one another. Parking Made Easy During breaks or when the work is finished, the parking brake positioned conveniently under the steering wheel can be used for preventing the lawn tractor from moving inadvertently. LED Headlights Energy-saving LED headlights will allow you to work safely, even after dark.

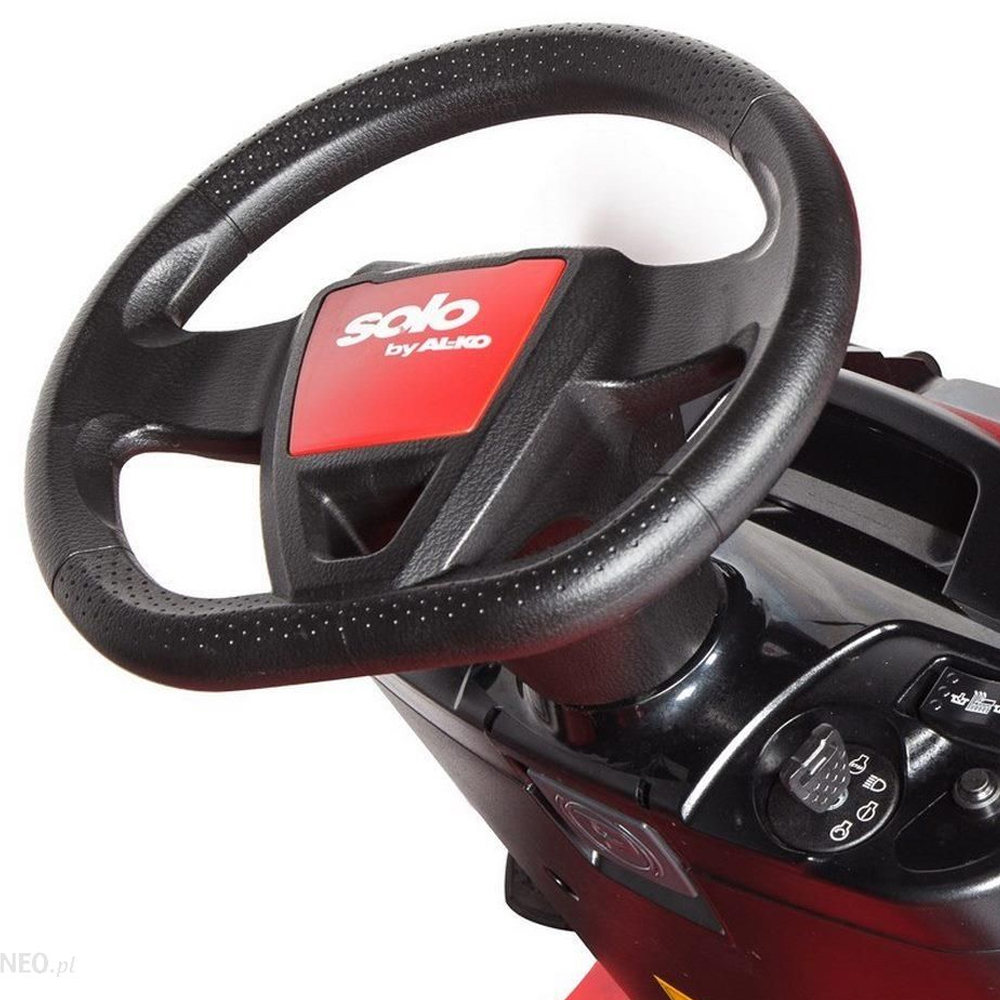

Other Key Features	Ball bearing-mounted drive for vibration damping Electro-magnetic blade brake clutch Non-slip footrest with integrated rubber elements Large wheels for optimal traction and comfort Patented frame design ensuring durability Easy access on to tractor Ergonomic working position Sports style anti-slip steering wheel External fuel tank filler Close to edge mowing Easy to remove mower deck for servicing Heavy duty bumper Mulch plug included Tow hitch included Optional electric tip grass catcher emptying

Video

Manuals

Operator's Manual

Brand

ABOUT AL-KO GARDEN + HOBBY.....

AL-KO Gardentech acquired Sindelfingen-based SOLO Kleinmotoren GmbH to strengthen its range of garden machinery. The AL-KO range has been expanded with ride-on mower and lawn tractors, petrol chainsaws and trimmers, providing customers with expertise and strong, tradition-rich brands in one product range.

Founded in 1931 by Alois Kober as a small metalworking shop in southern Germany, AL-KO has become a global player comprising of more than 50 sites in 30 countries. The AL-KO Group today employs over 4,200 people worldwide covering three business divisions - Vehicle Technology, Garden + Hobby, and Air Technology. All AL-KO employees take great pride in the quality products they manufacture.

For greater enjoyment in the garden

For more than 50 years, AL-KO has been developing and designing innovative garden tools for an extremely wide range of requirements and applications. Not only do AL-KO tools reflect its many years of expertise in technology and function, they also set new standards in terms of design.

When the best is expected

With Germany efficiency, AL-KO's research and development engineers create pioneering garden tools from hundreds of individual parts. Materials of the highest quality, ingenious technology, perfect ergonomics and a sure feel for form and deteail make AL-KO's garden tools unmistakable.

The rigourous quality requirement that characterises the AL-KO band is guaranteed through its comprehensive technology programme that is consistently planned and implemented by AL-KO development engineers, designers and technicias - from the first design, to prototype construction and the end product.

Why not take the plunge into the world of AL-KO and get to know its high-quality products - without doubt you will find just the right implement for your requirements. AL-KO has everything you need for the garden, whether you are mowing, trimming, shredding, mulching, scarifying, lawn raking, cultivating, splitting or clearing ...
