Be smart and personalised. With the smart cockpit on this flagship Premium lawn tractor, you will always have everything in view for more efficient work, increased driving pleasure and better mowing results. The solo® by AL-KO T 22-105 HD V2 SD petrol lawn tractor is developed in Germany and produced in Austria. Highest quality and many years of production experience and the innovative smart cockpit make this lawn tractor your perfect partner in the garden.
With the new smart cockpit, the solo® by AL-KO lawn tractor not only revolutionises lawn mowing, but also makes it much more efficient and makes work easier. How does it work? By turning your smartphone into a cockpit and inserting it into the stable holder suitable for smartphones from 4"-7". Simply establish the Bluetooth connection with the tractor and the smart cockpit can be started. All important data such as speed, fuel gauge, mowing efficiency, remaining and previously mowed time, total operating hours, battery charge status, inclination display, etc. can be read directly on the cockpit. So that the smartphone is always available for use, the solo® by AL-KO T 22-105 HD V2 SD incorpates a USB charging connector with integrated dust and rain protection.

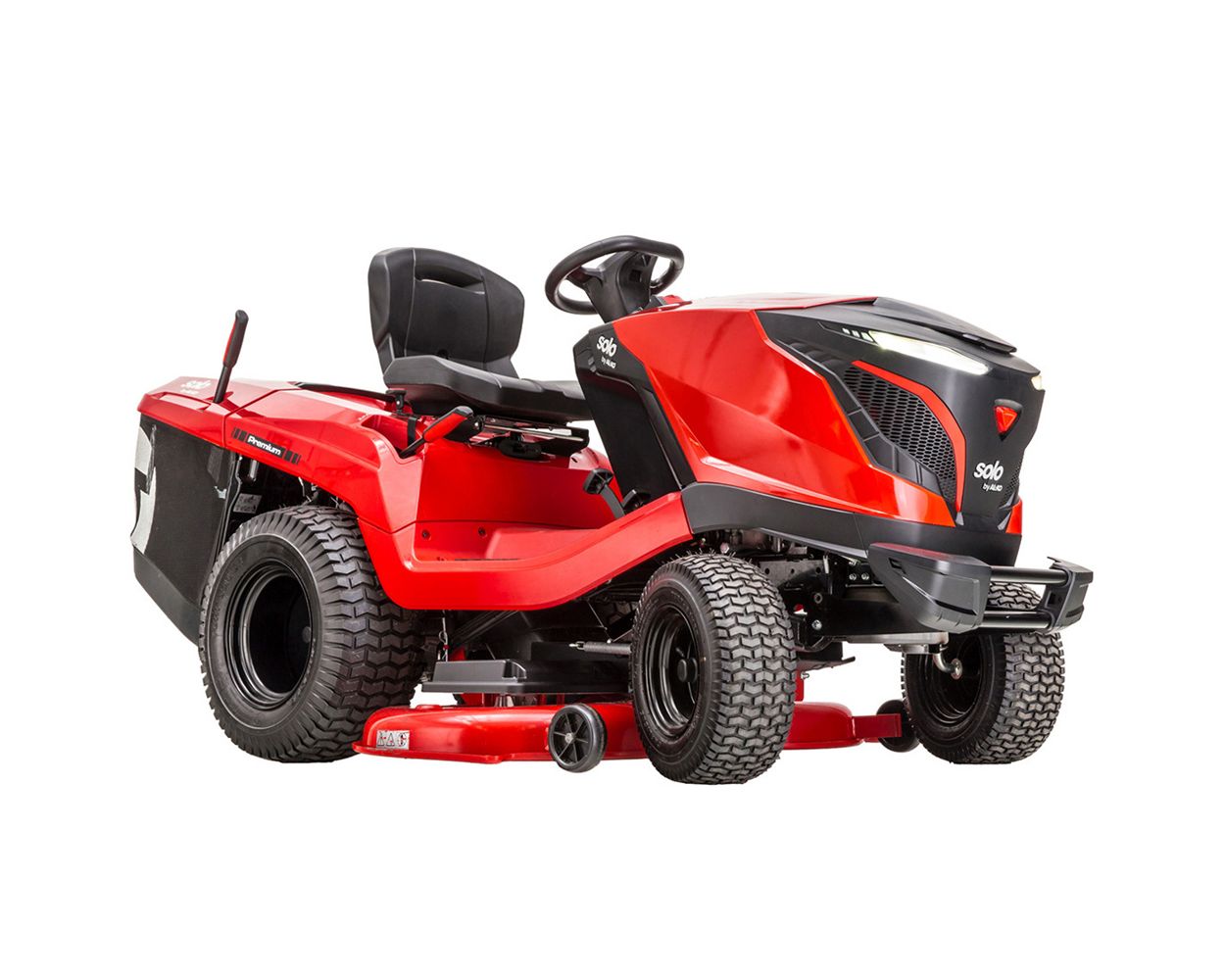

This T 22-105 HD V2 SD Premium lawn tractor in solo by AL-KO's rear collect range is powered by a two cylinder 22hp Briggs & Stratton Intek 7220 V2 engine and is equipped with a wide synchronised 105cm twin-bladed cutting deck with MaxAirflow technology and 3-in-1 function. Ideal for large lawns around 8,000 square metres in size, the machine boasts a fully welded 3mm thick steel frame cast iron front axle which guarantees a robust and durable tractor that can handle any mowing task.
Effortless control is ensured thanks to the side-by-side hydrostatic pedals for forward and reverse which make precise speed and direction control a breeze. Mowing large lawns is also a pleasure thanks to the 23" rear wheels and the G700 premium gearbox, which enable speeds of up to 11km/h. The built-in cruise control is also a gain in comfort and efficiency. The machine is easy to refuel thanks to the tank nozzle on the outside.
AL-KO's 3-in-1 function gives the user the option of either rear discharging, collecting or mulching the grass clippings (with the tool-less mulching kit included). The capacious 310 litre grass catcher can be conveniently emptied using the telescopic lever from the driver's seat. An optional expansion pack is available which allows electrical emptying of the grass box at the press of a button (see accessories below). The cutting height can be centrally adjusted through seven stages between 30mm and 90mm to suit conditions and the desired lawn finish, and features AL-KO's cutting height memory function.
The solo by AL-KO T 22-105 HD V2 SD lawn tractor is packed with an array of superior and intuitive features which turn a functional garden tool into an emotive driving experience. Low foot rests with premium non-slip foot plates and plenty of legroom ensure easy mounting and dismounting and a low centre of gravity with no danger of tipping. In addition, all controls can easily be reached from the operator's seat, meaning there is nothing to prevent you from enjoying stress-free mowing. Wide tyres protect the lawn and ensure optimum traction and driving comfort.
Other key features include optimum seat position, conveniently positioned parking brake, easy access to the battery for charging, integrated toolbar, maintenance free rods for throttle and brake, and a tool-less bonnet for easy maintenance. Safety comes as standard on this model with distance sensors on each side which detect contact with people or objects in the mowing path and bring the cutter blades to a safe stop - unless the simple override switch is triggered by the operator for close mowing around stationery obstacles. Powerful headlights will even allow you to mow longer into dark evenings and in poor visibility.
This model is ideal for fast and easy handling of large areas with its wide, synchronised, 105cm mowing deck and strong 11.7kW, twin-cylinder engine. The robust and torsion-resistant C profile frame, as well as a stable cast front axle and sturdy front bumper, also ensure long service and the best possible cushioning of impacts and jolts.
The integral tow hitch extends the use of the T 22-105 HD V2 SD lawn tractor through all seasons with the addition of a range of trailed accessories.
The German Design Award is the premium prize of the “Rat für Design”. With its global spectrum and international appeal, it is one of the most respected awards in the design landscape across all industries. Since 2012, the German Design Award has been identifying key design trends, presenting them to a broad public and honoring them. Every year, extraordinary submissions in product design, communication design and architecture are chosen, which cover all areas of daily life.
The “Winner” of the German Design Award, which AL-KO received for its solo® by AL-KO Premium pro lawn tractor and its solo® by AL-KO Robolinho® robotic lawn mower in the Gardening and Outdoor Living category, recognises outstanding work and exemplary implemented design services.
The jury's reasoning: “The solo® by AL-KO lawn tractor impressively reflects the demands on modern technology, comfort and performance with its functional, progressive and dynamic design language. Perfect for mowing large lawns quickly, efficiently and comfortably.”
Brand | solo by AL-KO |
---|---|
Model | 127710 |
Recommended Lawn Area | 8,000m² |
Engine | Briggs & Stratton |
Engine Model | Intek 7220 V2 |
Engine Cylinders | 2 |
Displacement | 656cc |
Horsepower | 22hp |
Rated Power Output | 11.7kW / 2450rpm |
Fuel Tank Capacity | 8.0L |
Start Method | Electric key |
Cockpit | Smart connected |
Bluetooth Connectivity | Yes |
App | AL-KO inTOUCH |
Transmission Type | Hydrostatic |
Transmission | G700, foot-pedal operated |
Speeds | Forward: 0 - 11.0km/hReverse: 0 - 5.0km/h |
Cruise Control | Yes |
Cutting System | 3 in 1 - mowing, collecting, mulching |
Width of Cut | 105cm |
Blades | 2 |
Blade Engagement | Electromagnetic |
Minimum Cutting Height | 30mm |
Maximum Cutting Height | 90mm |
Cutting Height Adjustment | Central, 7 positions |
Anti-Scalp Deck Wheels | 2 |
Deck Wash Nozzle | No |
Grass Collector | Fabric with hard top |
Collector Capacity | 310L |
Fill Level Indicator | Yes, audible |
Collector Emptying | Telescopic leverOptional electric tip kit: AK119602 |
Mulch Plug | Included: AK119605 |
Rear Deflector | Optional accessory: AK119605 |
Front Axle | Cast-iron |
Front Bumper | Standard premium: AK127731 |
Headlights | Standard: AK119832 |
Seat | AdjustableOptional premium armrests: AK127730 |
Cup Holder | Yes |
Wheels - Front | 16" x 6.5 - 8 |
Wheels - Rear | 23" x 10.5 - 12 |
Tow Hitch | Standard: AK119608 |
Assembled Dimensions | L: 251cm x W: 110cm x H: 119cm |
Weight | 279.0kg |
Sound and Noise Data | Sound pressure level LpA: 90dB(A)Sound ower level LwA: 98dB(A)Sound power guaranteed LwA: 100dB(A) |
Global Trade Item Number | 4003718064810 |
Warranty | Standard domestic: 2 yearsExtended domestic: 5 years (subject to online registration and annual service)Commercial: 90 days |
Promotional Image | no_selection |

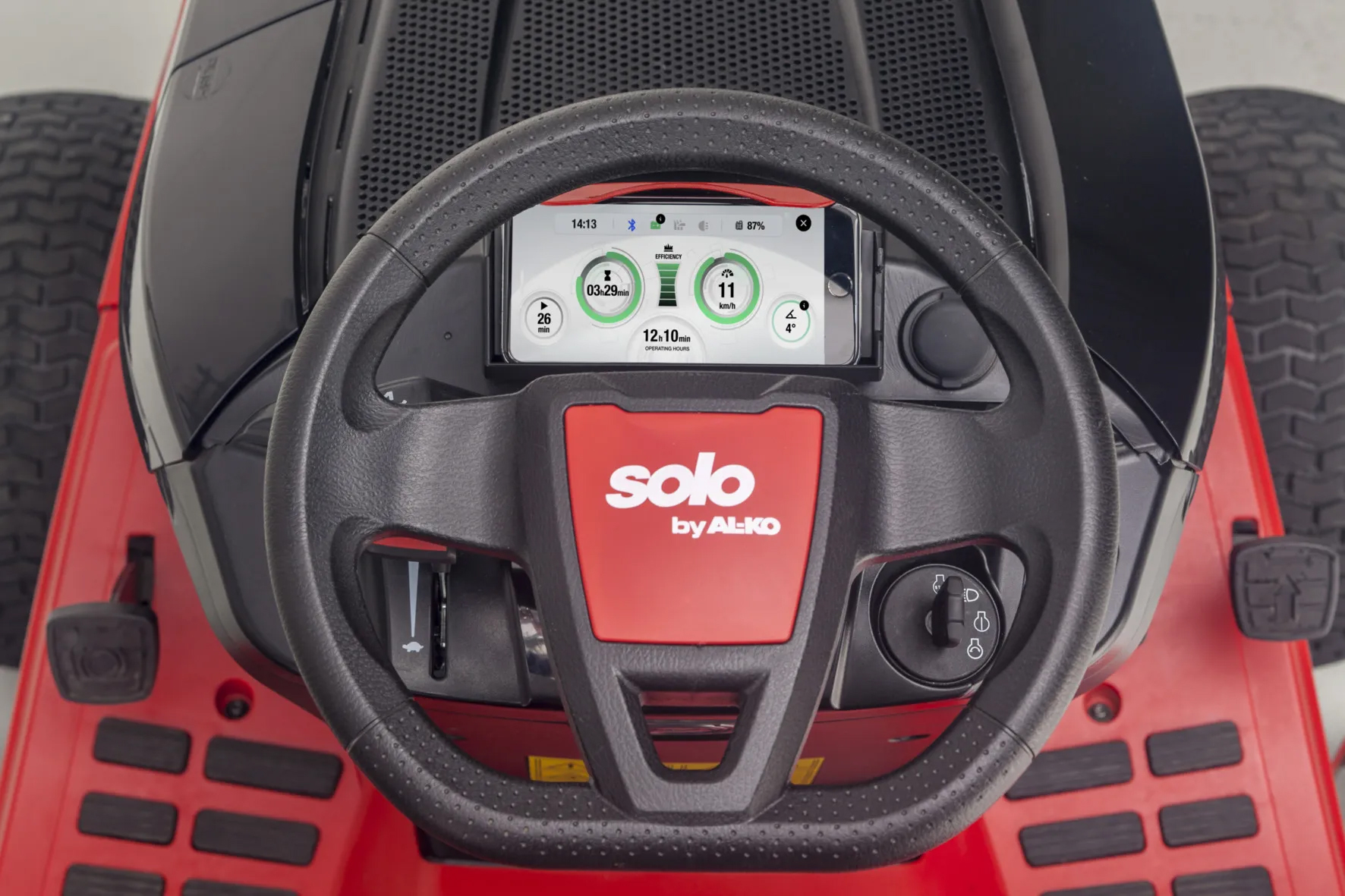

Smart Cockpit As a smart connected product, this tractor connects to mobile devices for a full status display. The smart cockpit displays a detailed tractor dashboard via the operator's mobile phone screen. Displaying speed, battery level, working angle, available run time and more by mounting a 4" - 7" smartphone securely to the centre console of the lawn tractor. NB: Requires iOS or Android phone with AL-KO inTOUCH app. |
|
Smart-Connected Technology Connect to AL-KO's inTOUCH app which can display relevant information and status updates.
|
|

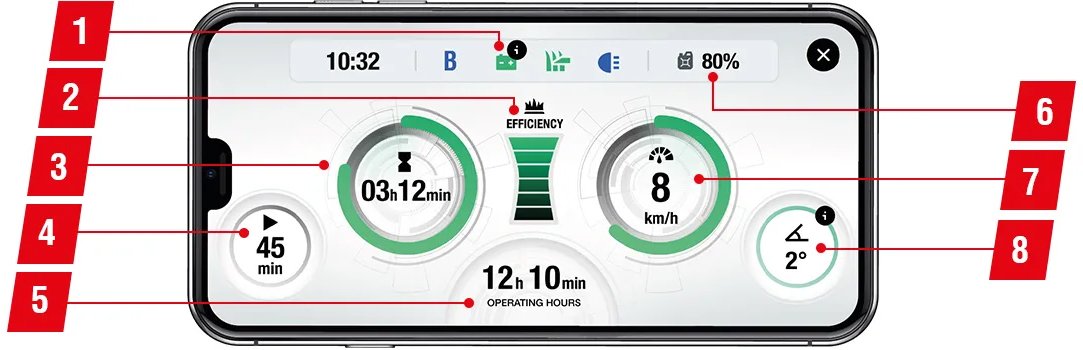

Structure Of The Smart Cockpit
|
|

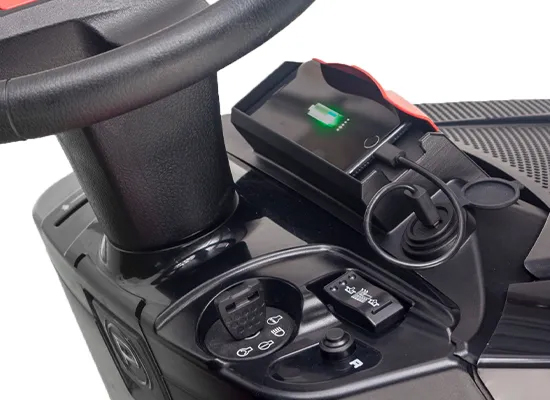

Practicality Of The Smart Cockpit
|
|

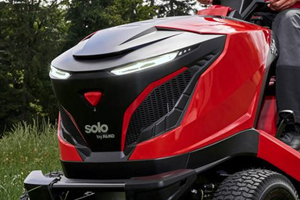

Outstanding Design The striking appearance, the clear lines and the excellent workmanship make solo by AL-KO lawn tractors look impressive and eye-catching in the garden. |
|
Durable And Sturdy Robust and torsionally rigid steel c-tube frame and cast front axle guarantee stability and best driving properties. The cast axle is particularly strong and extremely robust enabling it to cope with the increased stresses when working on uneven terrain. Ball-bearing mounted low-vibration mower deck. |
|
Comfortable Access solo by AL-KO lawn tractors are designed to be easy to mount and dismount, whilst also providing a high degree of legroom for comfort during use. |
|

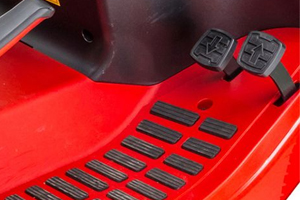

Forward And Reverse Pedals Individual pedals for forward and reverse driving provide comfortable, effective and intuitive mowing of the lawn. |
|

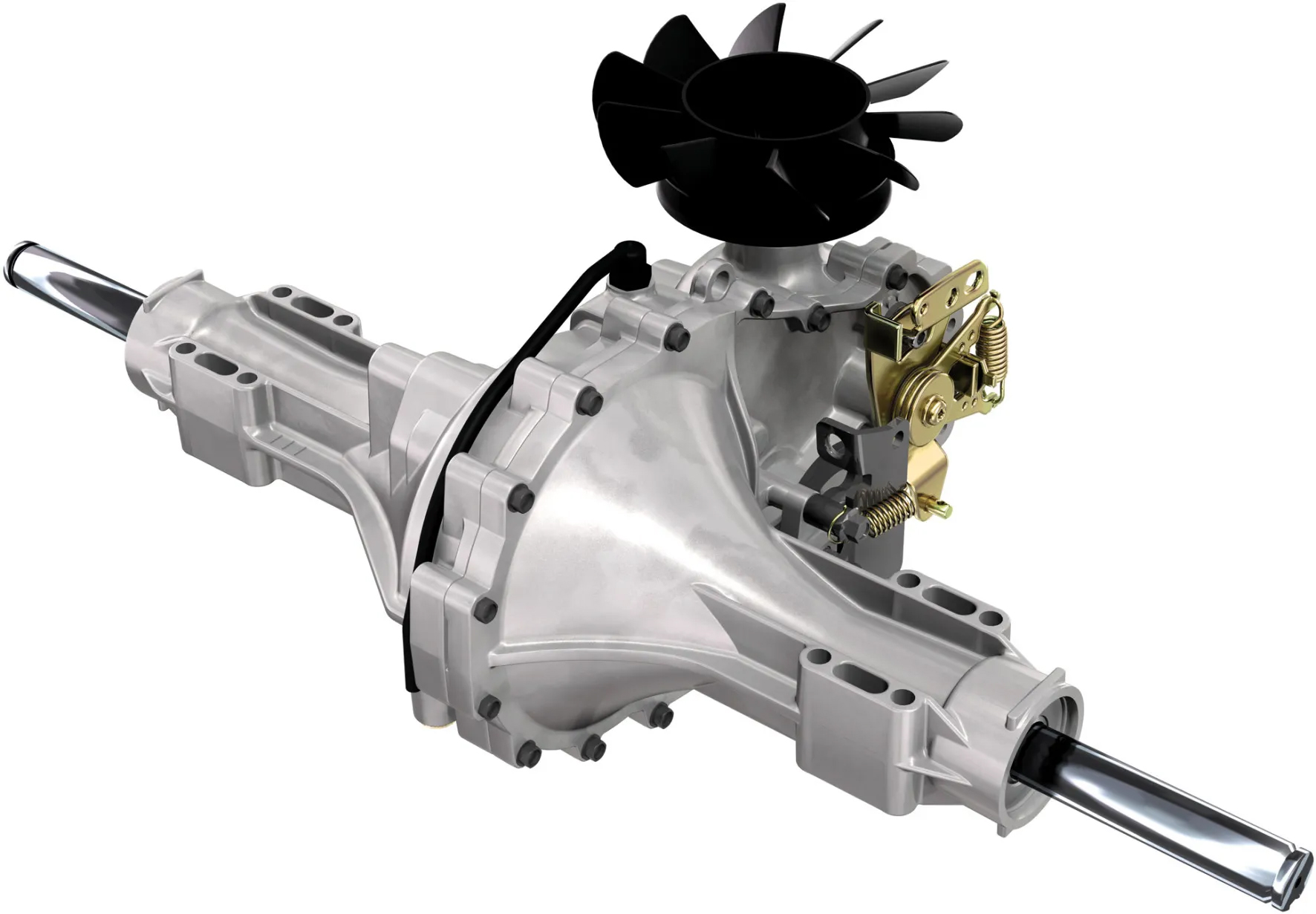

Hydro Drive Thanks To Hydro-Gear One of the star features of AL-KO's range-topping tractors is the high quality transmission from Hydro-Gear®, permitting riders the very best driving experience even in the most difficult conditions. The hydrostatic transmission from Hydro-Gear® was developed, tested and built to ensure reliable, quiet and yet extremely precise performance for years to come. The star feature is the G700 transmission series. With its sturdy cast-aluminium housing and optimised internal components as well as the solid 1" gear shafts, the G700 offers impressive, long-term driving performance in all situations. An external oil filter makes the unit easy to maintain, while the integrated pump ensures that the main elements of the hydraulic system are always supplied with sufficient oil, guaranteeing frictionless, low-noise functionality as well as reduced wear of the components. In short, it's the best of the best. Torque: G700 = 312 Nm; |
|

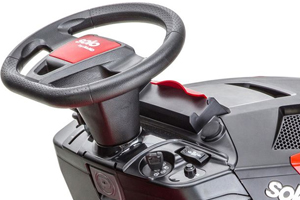

Sport-Style Steering Wheel The flat bottom of the steering wheel is reminiscent of a racing car and the ergonomic design makes it comfortable to hold, even when mowing for extended periods. |
|

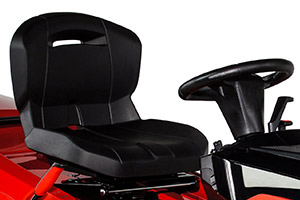

Adjustable Seat Thanks to the ergonomic, extra-wide driver's seat, even mowing large areas is a pleasure. The seat can easily be adjusted forwards or backwards.
|
|

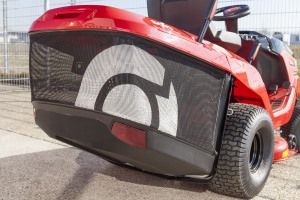

Audible Fill Level Indicator The large volume grass collector box features an audible fill level alert which makes the user aware as soon as the collector is full to capacity. |
|

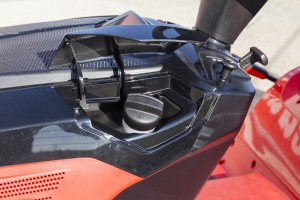

Easy Refuelling Should the tank be empty, the fuel tank can be filled quickly and conveniently via the external fuel filler flap. |
|

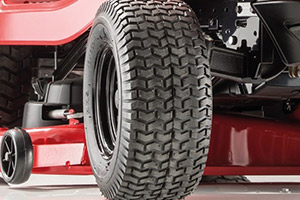

Wide Tyres The extra large tyres provide optimum traction on any surface and are gentle on the lawn. |
|
LED Headlights The bright LED headlights provide excellent working light in the dark. They are particularly helpful when using the lawn tractor for winter maintenance. |
