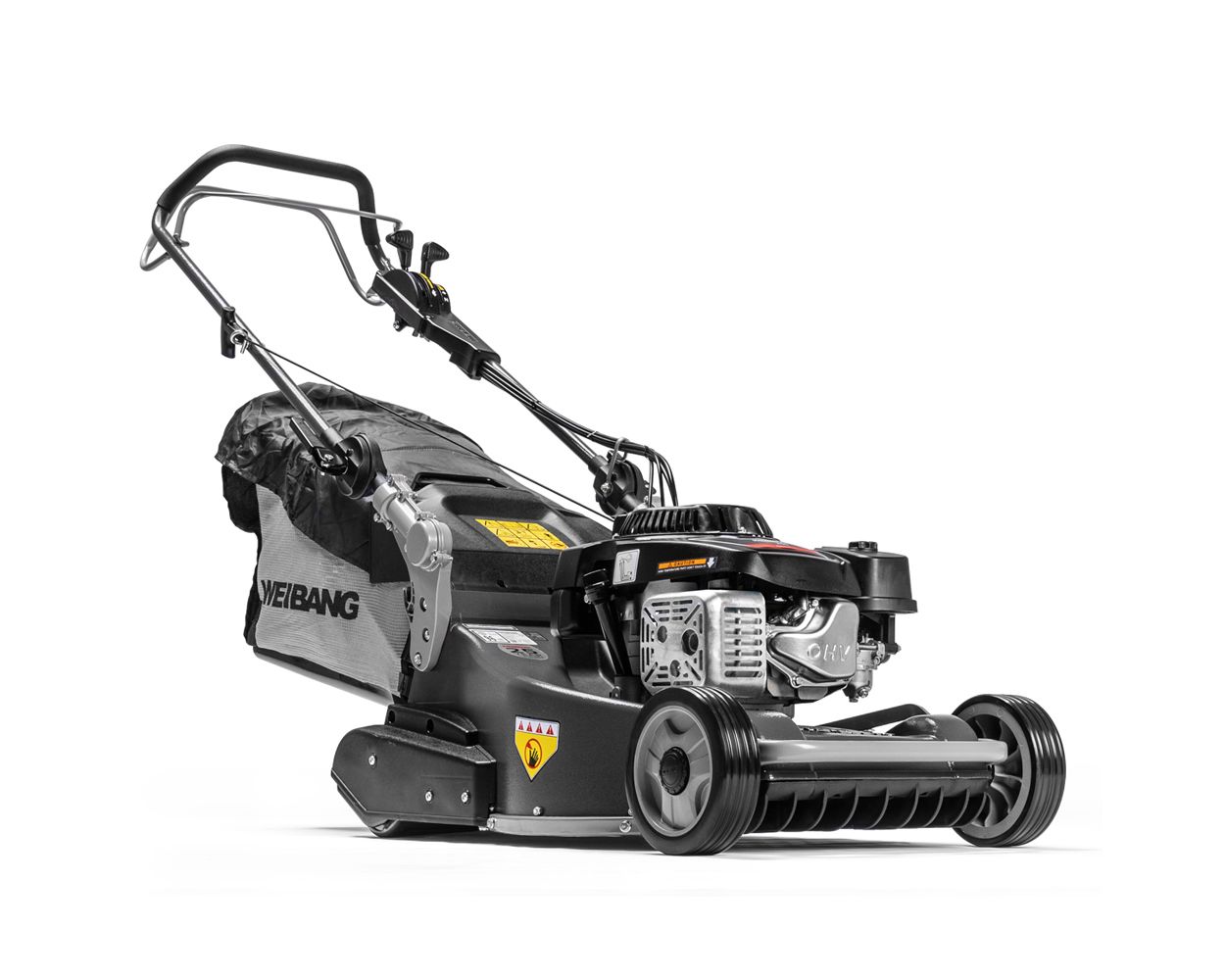

Weibang Legacy 48 Pro LV 3-Speed Self-Propelled Rear Roller Petrol Lawn Mower

Description

The Legacy 48 Pro LV is a professional quality 48cm rear roller lawn mower which forms part of the Weibang low vibration range developed for all day use and offering even more durability, quality and value for money. It is equipped with Weibang's VCT engine which features dramatically lower vibration levels with up to 56% reductions across the range.

The Weibang Legacy 48 Pro LV is petrol-powered by a quality Weibang XCV200 196cc engine and features a professional three speed gearbox and central cutting height adjustment from 13mm to 67mm. The robust aluminium deck provides resistance against corrosion, whilst the rear roller will give the lawn a traditional striped finish.

Grass clippings are collected in a 72 litre grass box. The machine is also fitted with important anti-vibration mounts which considerably reduce vibration levels so the mower is more comfortable to use for longer.

As an added bonus, the Legacy lawn mower series features an upright service position for easy and safe access to the underside of the cutter deck.

Why choose a Legacy?

The Weibang® Legacy has been designed from the ground up with three key factors - quality of finish, performance and reliability. The key to the unrivalled striped finish of the Legacy is its perfect weight distribution. The engine and cutter deck make the majority of the weight of the machine, however the key to the perfect striped finish is to have enough weight directly over the rear roller. Through extensive research and development, and thousands of hours of testing, the Legacy offers the perfect balance for performance, and an unrivalled striped finish from a rear roller lawn mower.

For the Traditional Professional

Designed for UK parks, gardens, and estates to provide a formal, high quality striped finish, the LEGACY PRO range can cut down to 13mm. A rear steel, split roller allows easy manoeuvring with a rear scraper bar to protect it and a heavy duty, sprung, one-handed single cutting height adjustment makes alterations effortless. Aluminium deck with side bumpers to protect the cutting deck and inner steel deck liner add to the commercial appeal, and a heavy-duty professional three speed gearbox, ensure these mowers are of a premium quality and are designed to last, be that for the discerning homeowner or commercial user.

The Weibang Legacy 48 Pro low vibration rear roller lawn mower is backed by an industry-leading three year commercial warranty, and five years for homeowner use.

Specification

More Information
Brand	Weibang
Recommended Lawn Area	Up to 1500m²
Engine	Weibang
Engine Model	XCV200 (Loncin)
Engine Type	4-stroke, OHV
Displacement	196cc
Rated Power Output	3.5kW / 3600rpm
Engine Cylinders	1
Cast Liner	Yes
Choke	Auto
Primer	No
Propulsion	Self-propelled variable speed
Gearbox	PRO 3 speed
Ground Speed	0.86-0.98-1.29m/s / 3.00-3.50-4.6km/h
Throttle Control	Yes
Drive	Belt
Blade Brake Clutch	No
Fuel Tank Capacity	1.0L
Cutter Deck	Aluminium
Blades	Standard: WGGM48C000000010/32 Optional high lift: WGGM48C000000011/32
Width of Cut	48cm / 19"
Minimum Cutting Height	13mm
Maximum Cutting Height	67mm
Cutting Height Adjustment	Central, spring-assisted, 11 stages
Grass Collector	Quick Attach airflow fabric grass bag
Collector Capacity	72L
Mulch Kit	N/A
Side Deflector	N/A
Handle Type	Folding, quick release, adjustable ratchet
Handle Height Adjustment	Central, spring-assisted
Wheels	Rim: HD nylon / Tyre: Polyurthane
Wheels - Front	178mm / 7" aluminium, double ball bearing
Rear Roller	Split 127mm / 5" steel, ribbed, split, ETS
Front Bumper	Yes
Vertical Storage Position	Yes, service and storage/transport position
Sound and Noise Data	96dB(A)
Vibration Level Data	3.5m/s²
Time to Reach ELV - Exposure Limit Value	16hrs 19mins
Weight	64.5kg
Assembled Dimensions	L: 167cm x W: 53cm x H: 109cm
Storage Dimensions	L: 98cm x W: 53cm x H: 54cm
Warranty	5 years for domestic use (subject to online registration & annual service) 3 years commercial
Promotional Image	/w/e/weibang-vct.jpg

Features

Weibang Vibration Control Technology

A frequency that works all day long.

XCV Series engine

Weibang made an exclusive partnership with Loncin to create the XCV Series engines with VCT (Vibration Control Technology) and cast iron liner.

Engine highlights

XCV200 & XCV200S engines feature 196cc of power
Belt & shaft drive options
VCT - Vibration Control Technology
Cast iron liner and fully balanced crank
Commercial-grade air filter
OHV and auto choke

What are the benefits of vibration control technology?

Lower vibration

All VCT engines feature dramatically lower vibration levels with up to 56% reductions across the range.

All day use across the range

Thanks to the lower vibration levels all VCT models can be used for substantially longer by the operator, in fact operators can use machines for up to 424% longer than the previous version.

Lower cost

By taking a different approach to other manufacturers Weibang has avoided having to add additional components and consumable items, meaning parts stock remains the same for the range, and operators do not have the added maintenance costs of new rubber AV mounts.

Tried & tested

All VCT engines are based on the exceptional WEIBANG X series belt and shaft drive models, which have been in the market for over 10 years worldwide. A testament to this is that Weibang has had fewer warranty claims for the WEIBANG X series than all the other engines they use put together.

100% spares parts support

By utilising a single engine brand, Weibang can control the supply of spare parts, ensuring parts are always in stock to minimize downtime for commercial operators.

Vibration Results

This table shows the latest engine vibration figures as well as the increase in daily usage before reaching ELV (Exposure Limit Value). All models with VCT now exceed eight hours use per day before reaching ELV.

MODEL	STANDARD ENGINE VIBRATION	VCT ENGINE VIBRATION	REDUCTION IN VIBRATION	INCREASE IN DAILY USAGE
Virtue 53 SSD	5.56m/s²	3.2m/s²	42.45%	202.17%
Virtue 53 SSD BBC	7.32m/s²	3.2m/s²	56.28%	424.73%
Virtue 53 ASD	5.2m/s²	2.7m/s²	48.08%	225.20%
Virtue 53 ASD BBC	4.7m/s²	3.2m/s²	31.91%	115.69%
Virtue 46 SMP	6.4m/s²	3.5m/s²	45.31%	235.11%
Virtue 53 SMP	5.34m/s²	2.5m/s²	53.18%	242.86%
Legacy 48 Pro	5.33m/s²	3.5m/s²	34.33%	132.15%
Legacy 48 Pro BBC	5.13m/s²	3.6m/s²	29.82%	103.43%
Legacy 56 Pro	5.38m/s²	3.5m/s²	34.94%	136.52%
Legacy 56 Pro BBC	5.36m/s²	3.6m/s²	32.84%	121.87%

Heavy-duty 3-speed pro gearbox

The Legacy 48 Pro LV features a heavy-duty, professional 3-speed gearbox that is designed to last a lifetime.

Robust build quality and comfortable operation

The heavy-duty, adjustable handle brackets are designed for long life whilst the anti-vibration technology and ergonomically-designed premium handle provides maximum user comfort.

High collection performance

The large 72 litre grass collector is designed to provide optimum airflow ensuring maximum collection capabilities. The integrated airflow fabric on the top of the collector indicates when the collector is full and requires emptying.

Central cutting height adjustment

The cutting height of the rear roller mower can be quickly and easily set using a spring-assisted lever enabling the mower to cut at 11 different heights between 13 and 67mm.

Innovative energy transfer system (ETS)

The Weibang Legacy Pro rear rollers feature an Energy Transfer System which absorbs shock through the drivetrain upon engagement ensuring a long life.

The rear roller has been strengthened and is robotically welded to ensure the highest levels of quality and consistency. A world first features on the Legacy in the form of a new roller ratchet system, with 10 times more strength and durability than rival models.

Aluminium deck - 25 year guarantee

The robust, corrosion-resistant aluminium deck is designed specifically for heavy-duty users. The Legacy aluminium range features a 25 year warranty on the cutter deck.

Service and storage position

The upright service position allows easy and safe access to the underside of the deck. This feature also reduces the footprint of the lawn mower for more compact storage.

Other key features

Weibang CPS (crankshaft protection system)

Due to the demands of cutting at low heights, the increased risk of hitting objects and damaging the blade and crankshaft are extremely high. The Legacy features a crankshaft protection system to avoid accidental and costly damage.

Clean controls

The operator controls have been specially grouped together for a simple appearance and easy use.

Operator comfort

The ergonomically-designed handle with heavy-duty brackets is the result of customer feedback. The handles are fully height adjustable and feature a storage and service position.

Anti-vibration points

The lawn mower is fitted with important anti-vibration mounts which dramatically reduce the levels of vibration meaning the machine will be more comfortable to use for longer.

Highest quality wheels

The mower features premium quality cast aluminium wheels with double ball bearings and a high traction rubber tyre.

5 year domestic / 3 year commercial warranties

For peace of mind, this commercial quality Weibang petrol lawn mower features a five year domestic and three year commercial warranty subject to being serviced annually by a Weibang approved service dealer.
