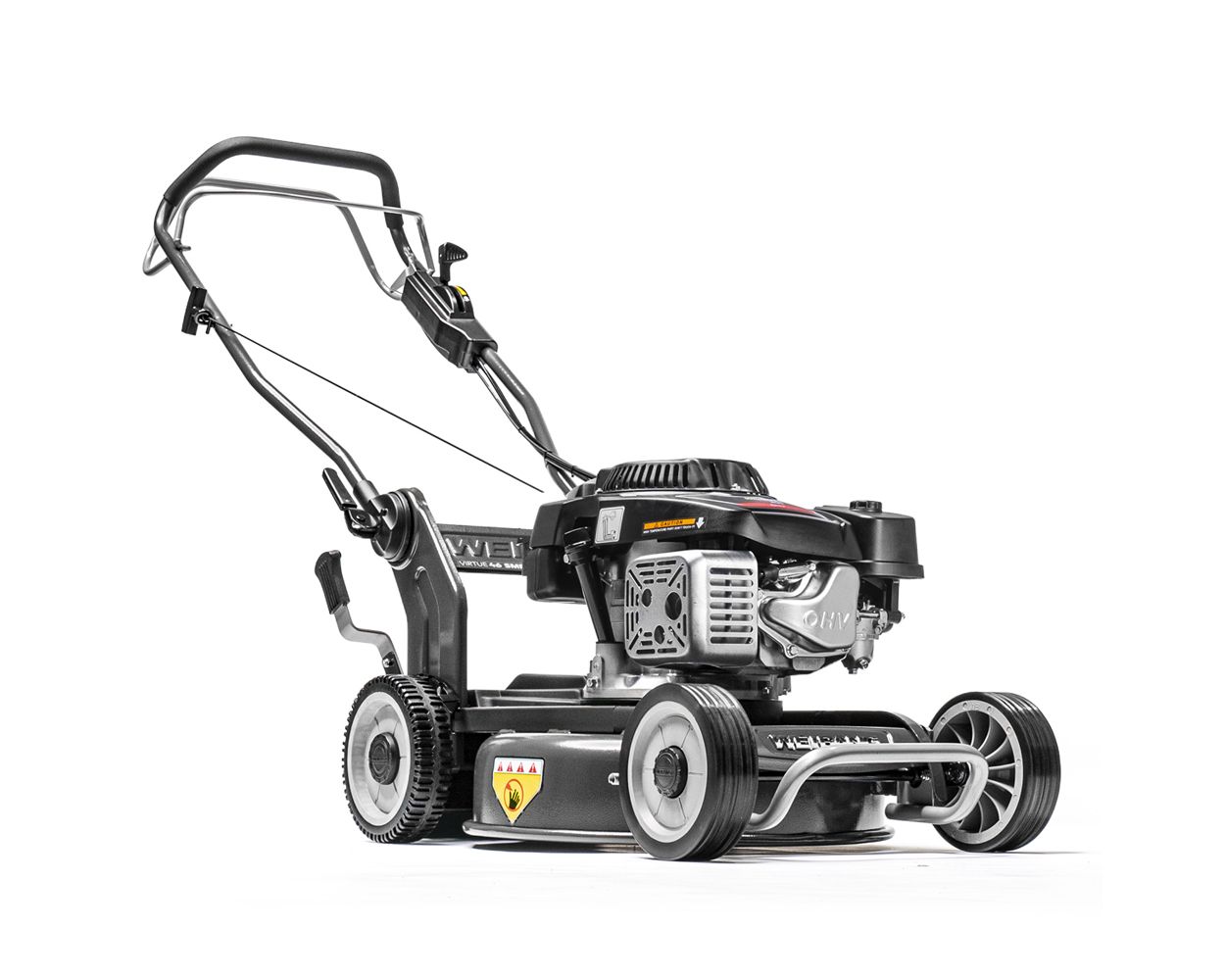

Weibang Virtue 46 SMP LV Mulching Self-Propelled Petrol Lawn Mower

Description

The Weibang Virtue 46 SMP LV is a premium quality, dedicated mulching mower designed for the needs of the demanding homeowner or professional user. It is equipped with Weibang's VCT engine which features dramatically lower vibration levels with up to 56% reductions across the range from previous models.

Unlike a conventional lawn mower which collects grass clippings, this mulching mower operates a system which recycles the clippings as you mow. The grass clippings are chopped into fine particles which are pushed right down into the turf out of site. With no grass collector to empty and no trips to the compost heap, the result is a perfect, fertilised lawn that is 30 per cent faster. As there is no discharge chute sticking out of the side or a grass bag overhanging the front or rear of the mower, you can mow within an inch or two of any obstacle, eliminating the time spent finishing off with a strimmer afterwards.

The specially designed rugged steel mulching deck on the Virtue 46 SMP LV features a rolled base which offers superior strength and high performance. The cutting height of the wide 46cm (18") deck can be adjusted centrally through 11 pre-set stages between 28mm and 76mm to suit the cutting conditions and the length of grass.

This lawn mower is powered by a 196cc engine boasting Weibang's vibration control technology (VCT) producing an incredibly low emission rate of 3.5m/s² which means it will take 19 hours 31 minutes to reach ELV (exposure limit value) making it the perfect contractor's machine for day long use.

Combined with a low vibration 3.5kW engine, this three-speed self-propelled Virtue 46 SMP LV boasts other superb features such as heavy-duty fully adjustable handles, robust front bumper and large nylon wheels. It also benefits from Weibang's service and storage position whereby the lawn mower can be stowed vertically, taking up less space in the shed and allowing easy access to the underside of the mulching deck for easier cleaning and maintenance.

Weibang backs its Virtue lawn mower range with an industry-leading five year warranty for domestic use subject to annual service as well as a reassuring one year commercial warranty.

Specification

More Information
Brand	Weibang
Recommended Lawn Area	Up to 1200m²
Engine	Weibang
Engine Model	XCV200 (Loncin)
Engine Type	Petrol, 4-stroke, OHV
Displacement	196cc
Rated Power Output	3.5kW @ 3600rpm
Engine Cylinders	1
Cast Liner	Yes
Start Method	Recoil
Choke	Auto
Primer	No
Propulsion	Self-propelled variable speed
Gearbox	PRO 3-speed
Ground Speed	3 / 3.5 / 4.6km/h
Drive Type	Belt
Throttle Control	No
Blade Brake Clutch	No
Fuel Tank Capacity	1.0L
Cutter Deck	Powder-coated steel
Blade	Standard: WGGM46D000000020/32
Cutting System	Dedicated mulching
Width of Cut	46cm / 18"
Minimum Cutting Height	28mm
Maximum Cutting Height	76mm
Cutting Height Adjustment	Central, spring-assisted, 11 stages
Mulch Kit	Standard
Side Deflector	N/A
Handle Type	Folding
Handle Height Adjustment	Adjustable ratchet
Wheels	Rim: Nylon / Tyres: Polyurethane
Wheels - Front	178mm
Wheels - Rear	203mm
Front Bumper	Standard
Vertical Storage Position	Yes, service and storage/transport position
Vibration Level Data	3.5m/s²
Time to Reach ELV - Exposure Limit Value	16hrs 19mins
Sound and Noise Data	96dB(A)
Assembled Dimensions	L: 154cm x W: 50cm x H: 104.5cm
Storage Dimensions	L: 98cm x W: 50cm x H: 44cm
Weight	46.0kg
Warranty	5 years for domestic use (subject to online registration & annual service) 1 year commercial
Promotional Image	/w/e/weibang-vct_7.jpg

Features

Weibang Vibration Control Technology

A frequency that works all day long.

XCV Series engine

Weibang made an exclusive partnership with Loncin to create the XCV Series engines with VCT (Vibration Control Technology) and cast iron liner.

Engine highlights

XCV200 & XCV200S engines feature 196cc of power
Belt & shaft drive options
VCT - Vibration Control Technology
Cast iron liner and fully balanced crank
Commercial-grade air filter
OHV and auto choke

What are the benefits of vibration control technology?

Lower vibration

All VCT engines feature dramatically lower vibration levels with up to 56% reductions across the range.

All day use across the range

Thanks to the lower vibration levels all VCT models can be used for substantially longer by the operator, in fact operators can use machines for up to 424% longer than the previous version.

Lower cost

By taking a different approach to other manufacturers Weibang has avoided having to add additional components and consumable items, meaning parts stock remains the same for the range, and operators do not have the added maintenance costs of new rubber AV mounts.

Tried & tested

All VCT engines are based on the exceptional WEIBANG X series belt and shaft drive models, which have been in the market for over 10 years worldwide. A testament to this is that Weibang has had fewer warranty claims for the WEIBANG X series than all the other engines they use put together.

100% spares parts support

By utilising a single engine brand, Weibang can control the supply of spare parts, ensuring parts are always in stock to minimize downtime for commercial operators.

Vibration Results

This table shows the latest engine vibration figures as well as the increase in daily usage before reaching ELV (Exposure Limit Value). All models with VCT now exceed eight hours use per day before reaching ELV.

MODEL	STANDARD ENGINE VIBRATION	VCT ENGINE VIBRATION	REDUCTION IN VIBRATION	INCREASE IN DAILY USAGE
Virtue 53 SSD	5.56m/s²	3.2m/s²	42.45%	202.17%
Virtue 53 SSD BBC	7.32m/s²	3.2m/s²	56.28%	424.73%
Virtue 53 ASD	5.2m/s²	2.7m/s²	48.08%	225.20%
Virtue 53 ASD BBC	4.7m/s²	3.2m/s²	31.91%	115.69%
Virtue 46 SMP	6.4m/s²	3.5m/s²	45.31%	235.11%
Virtue 53 SMP	5.34m/s²	2.5m/s²	53.18%	242.86%
Legacy 48 Pro	5.33m/s²	3.5m/s²	34.33%	132.15%
Legacy 48 Pro BBC	5.13m/s²	3.6m/s²	29.82%	103.43%
Legacy 56 Pro	5.38m/s²	3.5m/s²	34.94%	136.52%
Legacy 56 Pro BBC	5.36m/s²	3.6m/s²	32.84%	121.87%

Control Cockpit

The control cockpit mounted to the handlebars allows easy access to the controls for the throttle and the 3-speed pro gearbox.

Commercial 3-Speed Pro Gearbox

The Virtue 46 SMP LV features a commercial 3-speed gearbox that is designed for the demanding user, built to last a lifetime.

Quality Steel Deck

The rolled steel deck fitted to this mulch mower is specially designed to offer an unrivalled mulching performance as the grass is held in the deck, finely cut and then evenly dispersed onto the lawn.

Built for a Long Life

The Virtue 46 SMP LV is fitted with a front bumper providing deck protection and heavy-duty quick release handles.

Heavy-Duty Wheels

The Weibang Virtue 46 SMP LV features nylon ball bearing wheels with a polyurethane tread designed to be gentle on your lawn.

Adjustable Cutting Height

The Weibang Virtue 46 SMP LV lawn mower allows 11 different cutting heights which are selected by using a single lever located on the side of the mower deck.

Rolled Steel Deck with Crankshaft Protection

Weibang dedicated mulchers feature a high performance
rolled steel deck with specially designed cutting blade
for the optimum mulching performance. To protect
the crankshaft from damage by tree roots and stones,
an aluminium support has been fitted to support the
crankshaft with the blade mounted to a CPS slip washer.

High Performance Mulching Blade

The specially designed blades fitting to the Weibang Virtue mulching mowers help to generate the perfect airflow for the grass cuttings to be held within the deck to be cut into very small pieces.

Other Key Features

No Clippings

Mulching is a quick and tidy was to mow your grass, removing the need for piles of clippings. It also reduces the need to fertilise and water your lawn by returning valuable nutrients and moisture to the ground.

Upright Storage Position

Mow 'n' Stow engine technology reduces the footprint of the lawn mower by 70 per cent, which means more storage in your shed or garage. As if easy storage wasn't enough, Mow 'n' Stow technology also provides easy access to the underside of the mower to make cleaning the blade a breeze.

5 Year Domestic / 1 Year Commercial Warranties

For peace of mind, all Weibang petrol lawn mowers feature a five year domestic warranty subject to being serviced annually by a Weibang approved service dealer, whilst the steel shaft drive lawn mower is supplied with a one year commercial warranty.

Brand

ABOUT WEIBANG GARDEN MACHINES.....

Weibang Garden Machines was founded in 1997 in Yangzhou, a famous Chinese city steeped in years of history and culture. Now a leading manufacturer of commercial lawn care and garden maintenance machinery for 25 years, founded on the principles of constantly pursuing perfection and to never accept compromise. Weibang has established itself as the fastest growing commercial brand in the UK, offering arguably the best performing and most reliable machines for landscapers, contractors, councils, sports clubs, heritage sites and many more applications.

With a highly skilled team of over 300 at its manufacturing headquarters, and leading distribution partners across the world, Weibang is a global leader for commercial garden machinery. The UK headquarters for Weibang is a purpose built 100 thousand square foot premises. Weibang is distributed in the UK by AL-KO Gardentech.

Weibang's research and development team is driven by customer feedback to find solutions to the commercial operator's demands. Utilising technology such as 3D printing and the latest materials Weibang is not only constantly improving its range, but also developing the next generation of commercial lawn care.

Comprehensive Warranty
Weibang products feature a comprehensive five year domestic warranty across the product range, offering true peace of mind for your investment. The Weibang PRO models feature an industry leading three year commercial warranty. All warranty is subject to annual servicing, ensuring your product always performs to the highest standards. The aluminium cutter deck also features a 25 year warranty proving the quality of workmanship.
